Gauge Blocks: Types, Grades & Proper Use Guide

If gauge blocks feel a little intimidating at first, that's normal. They look simple, just small, flat metal bars but they carry a lot of responsibility in a shop. They're the starting point for accurate measurement, and once you understand what they do and how to handle them, they become one of the most straightforward tools you'll work with.

This guide walks through everything you need: what gauge blocks are, how they're graded, what material to choose, how to wring them correctly, and how to keep them accurate for years.

What Gauge Blocks Actually Are

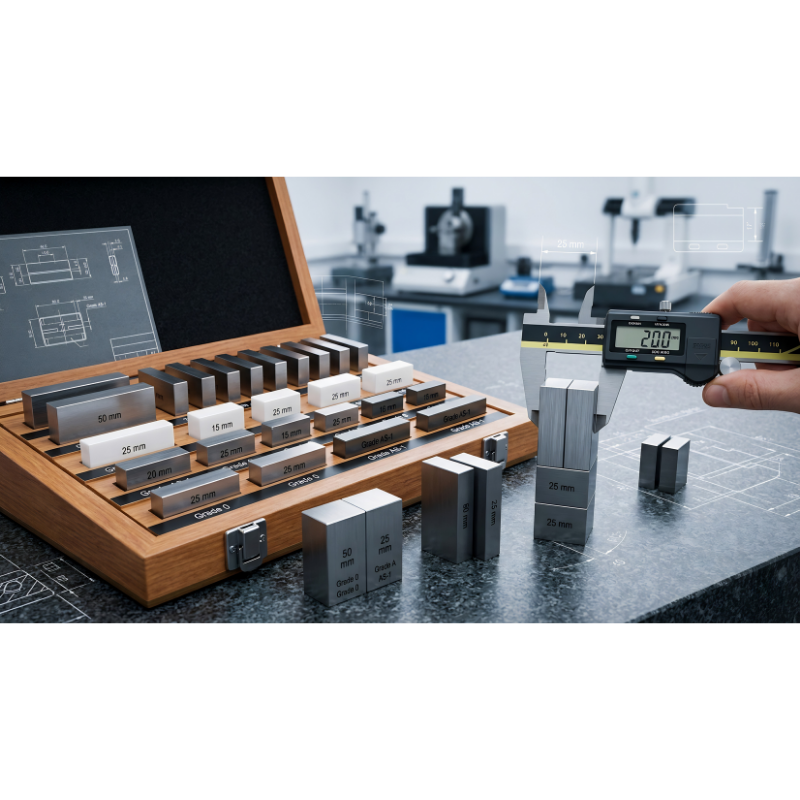

A gauge block is a small, precisely machined bar usually steel or ceramic with two extremely flat, parallel faces. The distance between those two faces is the block's size, certified to a very tight tolerance.

They do two things in a shop:

• Set and check other tools - calipers, micrometers, dial indicators, and other instruments are zeroed or verified against gauge blocks
• Build exact dimensions - blocks can be stacked together to create a specific measurement for fixture setup, part checking, or tooling qualification

That stacking ability is what makes them so useful. A good 81-piece set can be combined to reach almost any dimension in 0.0001" increments, using just three or four blocks at a time.

Think of gauge blocks as the reference point everything else in your shop measures against. If they're accurate, your measurements have a solid foundation.

Gauge Block Grades

Gauge blocks are made to four accuracy levels. Each grade has tighter tolerances on length, flatness, and parallelism - the three things that matter most for a reference standard.

For most shops, Grade 1 is the right choice for a QC lab. It's accurate enough to calibrate calipers, micrometers, and indicators, and it's what most inspection environments use. Grade 2 is appropriate for general setup work on the shop floor where you're not doing formal calibration.

The way it works: Grade 0 blocks are used to calibrate Grade 1 sets. Grade 1 sets are used to calibrate your shop instruments. Each level checks the one below it. This chain is defined by ASME B89.1.9 and ISO 3650, and it's what gives your measurements traceability all the way back to national standards.

You don't need to memorize those standards. Just know that the chain exists and that using the right grade for the right job is how you stay inside it.

Steel or Ceramic: What to Choose

Most gauge blocks are made from hardened steel. Some are made from ceramic specifically zirconia. Both work. They just behave differently.

Steel Gauge Blocks

Steel is the standard. It's been the material of choice for decades, it's well understood, and it's more affordable.

• Wears well under normal use
• Can be reground if a face gets damaged
• Expands slightly with temperature changes about 11 µm per meter per degree Celsius, which is worth knowing
• Needs light oiling after use to prevent rust

Ceramic Gauge Blocks

Ceramic costs more, but it lasts longer under heavy, frequent use roughly three to five times the wear life of steel. It doesn't rust, so there's no oiling required. The trade-off is that ceramic is brittle. It chips on impact rather than bending, and it can't be reground.

For most QC labs, a steel Grade 1 set is the right starting point. Ceramic earns its price in environments where blocks are wrung dozens of times a day and wear becomes a real concern.

How to Wring Gauge Blocks

Wringing is the process of joining two gauge block faces so they hold together on their own, no adhesive, no fastener. It works because ultra-flat surfaces, when clean and pressed together, stick through molecular attraction. A properly wrung pair holds as firmly as a single block and measures as if it were one piece.

It sounds unusual. The first time you feel two blocks lock together like that, it's quietly satisfying.

Here's how to do it correctly:

1. Clean both faces with a lint-free cloth and solvent such as isopropyl alcohol or optical tissue with petroleum ether both work. A single fingerprint will prevent proper wringing and introduce error.
2. Check for burrs by running a finger lightly across the face. Any roughness means damage that needs to be addressed before you proceed.
3. Place one block perpendicular to the other, making contact at the corner edge.
4. Slide one block across the other in one smooth, steady motion until the faces fully overlap and align.
5. Apply light pressure and rotate slightly if needed until you feel the faces pull together.
6. Don't force it. If the blocks don't wring cleanly, re-clean and try again. Forcing the wring on dirty or damaged surfaces causes wear.

Each wringing interface adds about 0.025 µm to the stack. For most shop work, that's negligible. For Grade 0 calibration, it's accounted for in the math.

Building a Stack

When you're building a gauge block stack to hit a specific dimension, the goal is to get there using as few blocks as possible. Every additional block adds a wringing interface and a small chance of misalignment. Three or four blocks is the right target for most dimensions.

The method is straightforward. Start with your target let's say, 1.3847 inches and work from the rightmost decimal place inward:

1. Pick a block to handle the last digit: 0.1007" remaining: 1.2840"
2. Pick a block for the next: 0.134" remaining: 1.150"
3. Finish it: 0.150" + 1.000" done

A well-assorted 81-piece set is designed so you can always reach a target in four blocks or fewer. If you find yourself reaching for five or six, recalculate. There's usually a cleaner path.

Calibration: What You Need to Know

Gauge blocks are calibration standards. That means they need to be calibrated themselves, on a regular schedule, against higher-grade blocks that trace back to national standards (NIST in the U.S.).

Under ISO 9001:2015 and ISO/IEC 17025, the basic requirements are:

• Calibrate at defined intervals
• Use a laboratory accredited to ISO/IEC 17025
• Keep calibration certificates with actual measured values and documented uncertainty
• Maintain calibration records over time

For Grade 1 blocks in regular use, annual calibration is the standard. For Grade 2 workshop blocks, every one to two years is typical or sooner if a block has been dropped or damaged.

Most shops don't calibrate Grade 1 blocks in-house. Doing it correctly requires Grade 0 masters and a temperature-controlled room. Sending them to an accredited lab once a year is the right call for most operations.

Care and Storage

Gauge blocks don't ask for much. They do ask for consistency.

• Clean after every use with a lint-free cloth. Wipe steel blocks with a thin coat of light gauge block oil before returning them to the case. Never store steel unprotected.
• Separate blocks after use. Never store them wrung together. The molecular adhesion strengthens over time, and blocks left wrung can become very difficult to separate and the faces can be damaged in the process.
• Use the case. The foam-lined case is there for a reason. It protects the faces from impact and keeps everything in the correct orientation.
• Let blocks acclimate. The standard measuring temperature is 20°C (68°F). If your blocks have been stored somewhere warmer or cooler, give them at least 30 minutes to reach room temperature before use. Steel expands with heat, for exmaple a 1-inch block just 5°C above ambient can read 0.6 µm longer than it should. That matters for Grade 1 work.
• If a block is dropped, set it aside and have it inspected before using it again. A block can look fine and still be out of spec.

Common Mistakes

Most gauge block problems come from the same short list of habits. Worth knowing ahead of time.

Skipping acclimation - Temperature error is real. Blocks used warm will give you readings that are off by more than you'd expect. Thirty minutes is a small wait for accurate results.

Wringing without cleaning - Contamination on the face is the most common cause of poor wringing and early wear. Clean every time, without exception.

Storing blocks wrung - It seems harmless. It isn't. Separate them before putting them away.

Using Grade 2 blocks to calibrate instruments - Grade 2 is for setup. Grade 1 is for calibration. Using the wrong grade for the wrong job quietly degrades your traceability without announcing itself.

You're in Good Shape

Gauge blocks are not complicated once you've used them a few times. The wringing technique takes a little practice, mostly in getting the cleaning habit right but the process itself is straightforward. The grading system is logical. The care requirements are simple.

The most important thing is to treat them like what they are: the most accurate reference in your shop. Keep them clean, store them properly, calibrate them on schedule, and they'll stay accurate for a very long time.

If you're just building out your measurement program, starting with a Grade 1 set and knowing how to use it correctly puts you in a solid position. Everything else in your measurement system depends on having a reliable reference to start from. Now you have one.
