How to Calibrate Precision Measurement Tools: What Every QC Team Needs to Know

An uncalibrated measuring instrument doesn't just give wrong numbers - it quietly corrupts your entire quality system. Every inspection record, every in-process check, every supplier certification based on that instrument is suspect. And when an audit or customer complaint forces the issue, the consequences range from expensive to catastrophic.

Understanding calibration - what it means, what's required, and how to do it correctly - is fundamental to running a credible quality operation. This guide covers everything your QC team needs to know.

What Calibration Actually Means

These three terms are often confused they mean different things:

Calibration is the process of comparing a measuring instrument's output against a known reference standard under specified conditions, then documenting the deviations. Calibration itself does not include adjustment - it is a comparison and documentation activity.

Adjustment (sometimes called "correction") is the action of bringing a measuring instrument into alignment with the reference standard - zeroing a caliper, adjusting a micrometer to its setting standard. Adjustment may follow calibration if the instrument is out of tolerance.

Verification is the confirmation that an instrument meets its specified requirements — typically a pass/fail determination based on calibration results against acceptance criteria.

In everyday shop language, "calibrate the caliper" usually means: compare it to a standard, adjust if needed, and record the result. Technically, these are three separate activities.

Why Calibration Matters

ISO 9001:2015 Clause 7.1.5 - Monitoring and Measuring Resources - requires that organizations:

• Determine what measuring equipment is needed
• Ensure instruments are fit for purpose
• Calibrate or verify at specified intervals against measurement standards traceable to national or international standards
• Identify instruments by status (calibrated, due date, out-of-service)
• Protect instruments from damage, deterioration, and unauthorized adjustment
• Take appropriate action when an instrument is found to be out of calibration

AS9100 Rev D (aerospace) and IATF 16949 (automotive) impose similar or more stringent requirements, with additional documentation and risk analysis requirements.

ISO/IEC 17025 is the standard for calibration laboratories themselves — if you send instruments to an external lab, look for 17025 accreditation as evidence of competency.

Beyond compliance: calibration directly protects your customers, your liability, and your reputation. A machined component shipped with dimensional data from an uncalibrated caliper is a potential warranty claim, recall, or safety incident.

Calibration Intervals

There is no universal calibration interval that applies to all instruments in all environments. ISO 9001 requires that you determine appropriate intervals - the standard does not specify them.

Factors that affect interval determination:

Typical starting intervals (adjust based on your experience):

After any drop, impact, or known damage - calibrate immediately, regardless of scheduled interval.

In-House Calibration vs. External Lab

In-House Calibration

• Advantages:
  • Immediate turnaround - no waiting for instruments to return from a lab
  • Lower per-calibration cost at high volume
  • Calibration can be performed more frequently
• Requirements for in-house calibration:
  • Reference standards at least one grade higher than the instruments being calibrated (Grade 1 gauge blocks to calibrate shop instruments; Grade 0 to calibrate Grade 1 blocks)
  • Controlled environment - temperature 20°C ± 1°C, relative humidity 45–75%, vibration isolated
  • Documented procedures - written calibration procedures for each instrument type
  • Competent personnel - operators trained in metrology and calibration technique
  • Measurement uncertainty budget - documented uncertainty for each calibration process

External Calibration Laboratory

• When to use an external lab:
  • For instruments that require specialized equipment you don't have (CMMs, optical instruments, torque tools)
  • For your highest-grade reference standards (Grade 0 gauge blocks, master setting standards)
  • When your quality system or customer requires ISO/IEC 17025-accredited certificates
  • When in-house volume doesn't justify the investment in reference standards and environment
• What to look for in an external lab:
  • ISO/IEC 17025 accreditation from a recognized accreditation body (NVLAP, A2LA in the U.S.)
  • NIST-traceable calibration certificates with stated measurement uncertainty
  • Scope of accreditation that covers your instrument types

NIST Traceability and Calibration Certificates

Traceability means your calibration results are linked - through an unbroken chain of calibrations to national measurement standards maintained by NIST (in the U.S.) or equivalent national metrology institutes globally.

• The traceability chain for a typical shop instrument:
  • NIST maintains primary dimensional standards (laser interferometry)
  • Accredited lab calibrates Grade 0 gauge blocks against NIST-traceable standards
  • Your Grade 0 blocks are calibrated at an accredited lab
  • Your Grade 1 blocks are calibrated in-house against Grade 0
  • Your micrometers are calibrated against Grade 1 gauge blocks
• A calibration certificate from an accredited laboratory documents:
  • Instrument identification (make, model, serial number)
  • Reference standards used and their traceability
  • Calibration date and due date
  • Environmental conditions during calibration
  • Actual measured values (not just pass/fail) and measurement uncertainty
  • Signature of the calibrating technician

Retain calibration certificates as quality records - typically for the life of the instrument plus any contractual retention period.

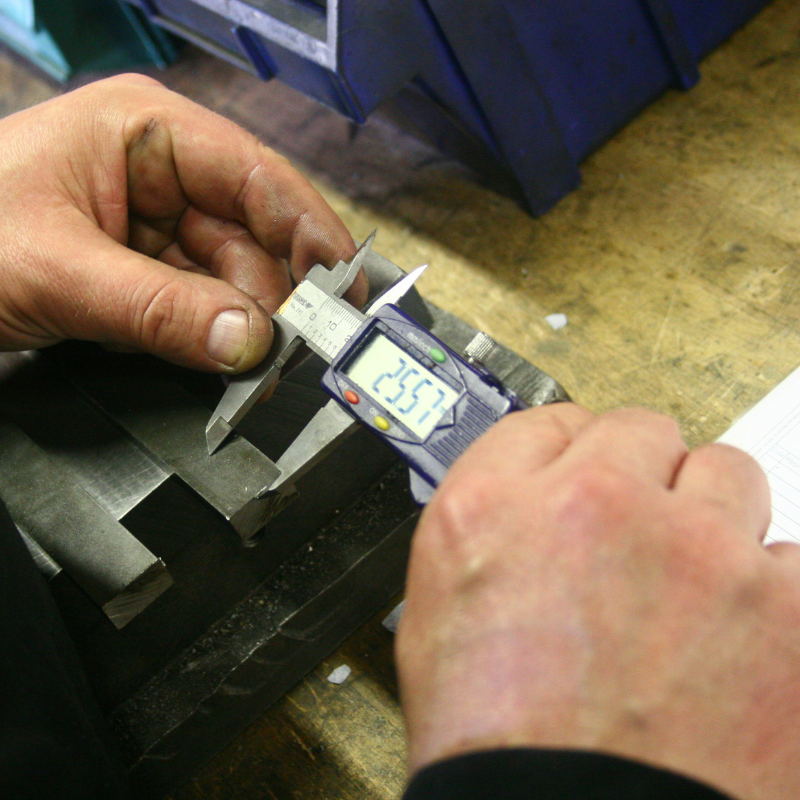

How to Calibrate a Digital Caliper

Reference standard: Grade 1 gauge blocks covering the caliper's range

• Procedure:

1. Clean the jaws with a lint-free cloth. Close the jaws fully and confirm the display reads 0.000" (or press ZERO).
2. Open the jaws and insert a gauge block for each reference point: typically 0.200", 0.500", 1.000", 2.000", 4.000" (or metric equivalents).
3. At each point, record the caliper reading and the nominal gauge block value. Calculate the error (caliper reading minus nominal).
4. Acceptance criterion: ±0.001" for standard digital calipers per manufacturer specification.
5. If any error exceeds the acceptance criterion, the caliper is out of tolerance - remove from service, tag, and assess for repair or replacement.
6. Record results on a calibration record with instrument ID, date, technician, reference standard used, and results.

How to Calibrate a Micrometer

Reference standard: Grade 1 gauge blocks; micrometer setting standard (for non-zero lower limit models)

• Procedure:

1. Clean the measuring faces with a lint-free cloth.
2. Check zero: close the spindle on the anvil using the ratchet. Confirm 0.0000" (or adjust the thimble with the spanner wrench if off by more than 0.0002").
3. Measure gauge blocks at multiple points across the range: typically 0.100", 0.250", 0.500", 0.750", 1.000".
4. At each point, use the ratchet for final seating - never the thimble directly.
5. Record the measured value and the nominal. Acceptance criterion: ±0.0001" for precision micrometers.
6. Check for spindle movement (backlash): approach each measurement from the same direction for consistent results.
7. Document results as above.

How to Calibrate a Dial or Digital Indicator

Reference standard: Grade 1 gauge blocks; precision indicator stand or comparator stand

• Procedure:

1. Mount the indicator in a stand with the spindle vertical and the contact point resting on the reference surface.
2. Lower a gauge block under the contact point. Confirm the indicator reads the gauge block nominal (±indicator accuracy specification).
3. Check multiple points across the range: 0.010", 0.050", 0.100", full range.
4. For digital indicators, verify that the min/max function captures the correct extremes by slowly moving the spindle through its range.
5. Check for hysteresis: approach each measurement from above and below. The difference should not exceed the instrument's accuracy specification.
6. Acceptance criterion: per manufacturer specification, typically ±0.001" for standard dial indicators and ±0.0002" for 0.0001" resolution indicators.
