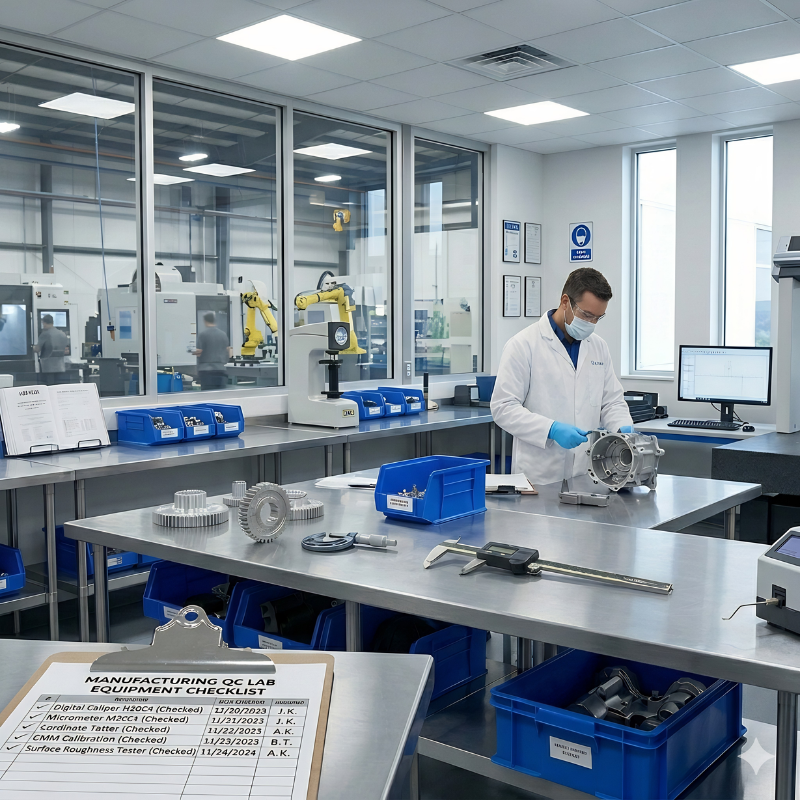

How to Set Up a QC Lab: An Equipment Checklist for Manufacturers



Setting up a quality control lab for the first time can feel like a lot. There are instruments to choose, environmental requirements to meet, calibration systems to build, and documentation to maintain, all before a single part gets inspected.

The good news is that it does not have to happen all at once. Most effective QC labs were not built in a day. They were built in layers, with clear thinking about what was actually needed at each stage.

This guide walks you through it. Not to overwhelm you, but to give you a clear picture so you can make good decisions and move forward with confidence.

Start Here: Define What Your Lab Actually Needs to Do

Before you buy anything, sit with this question for a moment: what, exactly, will this lab inspect?

The answer shapes everything. Which instruments you need, what accuracy grades matter, and what your documentation has to look like.

Most QC labs handle one or more of the following:

Incoming inspection - Checking purchased materials and components against drawings before they enter production. Catching a bad batch of raw material at the door is far cheaper than catching it in a finished part.

In-process inspection -Checking parts at key stages during machining, forming, or assembly. This is where you stop a small problem from becoming a large one.

Final inspection - Verifying finished parts against drawing requirements before shipment. The last gate before a part reaches your customer.

Your industry matters too. ISO 9001 is the general baseline for most manufacturers. If you work in aerospace (AS9100), automotive (IATF 16949), or medical devices (ISO 13485), those standards add specific requirements around instrument accuracy, traceability, and records. Know which standards apply to you before you finalize your equipment list.

Set Up the Environment First

This part surprises a lot of people. The environment your instruments live in is just as important as the instruments themselves.

Precision measurement is sensitive. Metal expands and contracts with temperature. Vibration disturbs delicate readings. Contamination damages finely finished surfaces. An expensive instrument in a poor environment will not perform to its rated accuracy and you may not even know it.

Here is what a proper QC lab environment requires:

Temperature: The international standard for dimensional measurement is 20°C (68°F). Steel instruments and steel parts expand as they warm up roughly 11 micrometers per meter per degree Celsius. A five-degree swing introduces real error at tight tolerances. For general inspection, hold 20°C ± 1°C. For high-accuracy work, tighten that to ±0.5°C.

Humidity: Keep relative humidity between 45% and 75%. Too dry, and precision steel instruments begin to corrode. Too wet, and moisture affects certain materials dimensionally.

Vibration: CMMs, vision systems, and optical instruments need isolation from shop floor vibration. Pneumatic isolation tables or a dedicated concrete pad will do it. Floor vibration is invisible, but it shows up in repeated readings that do not agree.

Cleanliness: Chips, coolant mist, and grinding dust are hard on precision surfaces. A clean lab protects your instruments and extends their working life.

Lighting: Good, consistent lighting matters more than people expect. LED panel lighting at 500 to 1,000 lux is right for most inspection work, bright enough to read fine markings clearly without eyestrain.

Getting the environment right before the instruments arrive is the right order of operations. It is easier to build good habits from the start than to fix measurement problems later and wonder if the room is to blame.

Essential Measurement Tools

These are the instruments that belong in nearly every QC lab, regardless of industry or part complexity.

Calipers

The most-used tool in most shops. Digital calipers handle the majority of general measurement tasks quickly and reliably.

• Outside caliper, 0–6 inch - standard range for most parts
• Outside caliper, 0–12 inch - for larger features
• Depth caliper - for slot depths, counterbore depths, and boss heights

Mitutoyo is the standard reference for quality calipers. Keep multiple sets and assign specific instruments to specific workstations. That way, calibration status is always clear.

Micrometers

For features that need more precision than a caliper can give — typically 0.0001 inch accuracy.

• Outside micrometer set, 0–6 inch - covers most shaft and round feature measurement
• Inside micrometer or bore gauge set - for bore diameters and fits
• Depth micrometer - for precision depth measurement

Indicators and Stands

For setup, runout inspection, surface plate comparison, and fixture verification.

• Dial indicators, 0.001 inch graduation - keep several on hand
• Digital indicators, 0.0001 inch graduation - for SPC applications
• Test indicators (lever type) - for tight-space work and bore indication
• Adjustable indicator stands and magnetic bases - flexible mounting for almost any configuration

Height Gauges

For measuring heights relative to a surface plate and comparing part features.

• Digital height gauge, 12 or 18 inch - covers most parts well

Surface Plates

The flat reference datum that most surface plate work depends on. Granite is the standard material - stable, hard, and resistant to warping.

• Granite surface plate, Grade A - 18×24 inch for a small lab; 24×36 inch or larger if you have bigger parts
• Matching surface plate stand with leveling feet

Gauge Blocks

The foundation of your entire calibration program. Everything else gets checked against these.

• 81-piece gauge block set, Grade 1, steel, with a NIST-traceable calibration certificate

Do not buy Grade 2 workshop blocks for a QC lab. Grade 1 is the appropriate standard for calibrating inspection instruments. The cost difference is modest; the accuracy difference is not.

Specialty Inspection Equipment

Once your foundation is in place, these instruments extend what your lab can do.

Hardness Tester

Essential for verifying heat treatment results, incoming material certification, and finished part hardness.

• Benchtop Rockwell hardness tester - Phase2+ is a reliable choice for production QC; covers HRC, HRB, and other common scales
• Portable hardness tester - for large parts that cannot come to the benchtop

Surface Roughness Tester

For verifying that machined and finished surfaces meet the roughness values called out on drawings (Ra, Rz, and similar parameters).

• Contact profilometer - portable models work well for both lab and shop floor use

Vision Measuring System or CMM

For complex geometry, hole patterns, GD&T callouts, and features that go beyond what hand tools can reliably measure.

• CNC vision measuring system - well suited for flat parts, stampings, and high-throughput inspection
• CMM (coordinate measuring machine) - for complex 3D geometry and full GD&T reporting

These are significant investments. They belong in the mid-range or full lab tier, not the starting point for most operations.

Force Measurement

For testing assembly forces, spring loads, and other load-bearing features.

• Digital force gauge - handheld, for straightforward push/pull testing
• Motorized force test stand - for controlled-speed testing and repeatable data

Thread and Bore Gauges

For verifying threaded features and precision bores - faster than measuring with hand tools.

• Thread plug and ring gauges, Go/No-Go - for common thread sizes
• Pin gauge set — for hole size verification
• Bore gauges — for precision bore measurement in production

Stereo Microscope

For visual inspection of surface defects, burrs, welds, and fine features.

• 7–45× zoom stereo microscope - a practical range for most inspection work

Build Your Calibration System from Day One

This is the part that often gets postponed. It should not be.

A QC lab that cannot maintain its own instruments is not really a QC lab. The instruments are only trustworthy if someone is checking them regularly and keeping records.

What you need to start:

• Your Grade 1 gauge block set - this is your reference standard for calibrating all hand tools
• A calibration log - even a well-organized spreadsheet works, tracking instrument ID, last calibration date, next due date, and result
• Calibration labels - applied to each instrument showing when it was last calibrated and when it is due again
• Out-of-service tags - red tags for instruments found out of tolerance or waiting for calibration

Set this up before the first instrument goes into service. An audit finding on a missing calibration record is one of the more avoidable problems in quality management.

For larger instrument populations, dedicated calibration software makes tracking easier and generates certificates automatically. That step can come later, once you know the volume you are managing.

Documentation and Records

Your lab is part of your quality management system. That means records are not optional - they are how you prove that the inspection happened and that the instruments behind it were trustworthy.

The essentials:

• Calibration records for all instruments (required under ISO 9001:2015 clause 7.1.5)
• Inspection records and first article reports
• Non-conformance records for out-of-spec findings
• Corrective action records

One more thing worth knowing about: Gauge R&R, short for Gauge Repeatability and Reproducibility. This is a study that checks whether your measurement process, the instrument and the person using it is capable of reliably telling good parts from bad ones. IATF 16949 and most aerospace customers require documented Gauge R&R for critical measurements. Even if your customers do not require it, it is a useful exercise. It tells you whether your instruments are actually doing what you think they are.

Budget Guidance

There is a wide range here, and that is normal. What you need depends on your industry, your customers, and the complexity of what you are inspecting.

An ISO 9001 job shop making general machined parts can run a solid inspection program at the budget tier. An AS9100 aerospace supplier or IATF 16949 automotive tier-1 will likely need the mid-range or full tier to meet customer and registrar requirements.

Start with what your scope actually requires. Add capability as your work demands it.

Common Mistakes Worth Knowing About

These show up often enough that they are worth naming before you start:

Buying instruments before defining scope. The equipment list should follow from your inspection requirements and not the other way around.

Skipping environment. A high-end CMM in an uncontrolled environment will not perform to its rated accuracy. Environment is foundational, not optional.

Delaying calibration setup. If calibration tracking is not in place from the first day instruments go into service, you will spend time later reconstructing records and explaining gaps.

Under-specifying gauge blocks. Grade 2 blocks are not appropriate for calibrating QC instruments. Grade 1 is the right choice.

Skipping Gauge R&R. Putting an instrument into production use without confirming it can actually distinguish good parts from bad ones is a quality system gap — and a real one, not just a paperwork issue.

You Can Build This

A well-equipped QC lab does not have to be perfect on day one. What it needs to be is thoughtful and scoped to the work you are actually doing, built on a solid environmental foundation, stocked with appropriate instruments, and supported by a calibration system that keeps everything trustworthy.

That is achievable. It is also maintainable.

Start with the essentials. Set up calibration tracking before you inspect the first part. Let your scope guide the additions over time. The labs that serve manufacturers best are not necessarily the most expensive ones but they are the ones built with clear thinking and kept in good order.

You know your parts. You know your tolerances. This guide gives you the framework. The rest is just doing the work.
