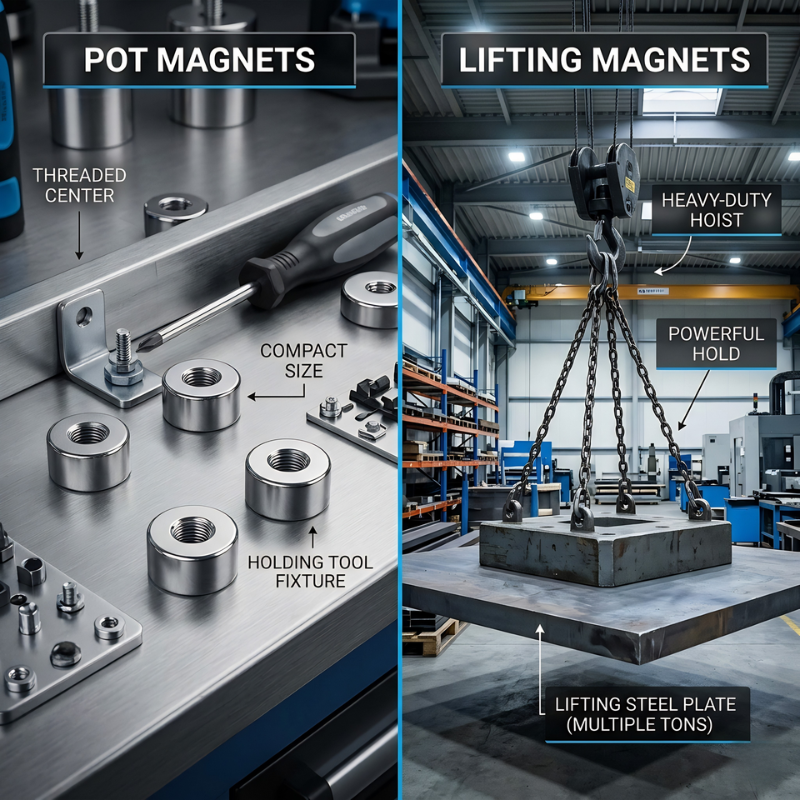

Mag-Mate Pot Magnets vs. Lifting Magnets: Understanding the Difference

If you have been looking at Mag-Mate magnets and trying to figure out the difference between a pot magnet and a lifting magnet, you are not alone. They look similar. They are both strong. They both attach to steel. The product names do not always make the distinction obvious.

The difference is real and it matters when you are choosing one for a specific job. This guide explains what each type is, how it works, and when to use which one.

What Is a Pot Magnet?

A pot magnet is a permanent magnet housed inside a steel cup known as the "pot." That steel housing is not just protective packaging. It is functional. The cup focuses the magnetic field toward the open face of the magnet, concentrating the force at the contact surface.

The result is a magnet that is stronger against a flat steel surface than the bare magnet alone would be, and that holds its force in a very specific direction and straight down into whatever it is sitting on.

Pot magnets come in several configurations depending on how they need to attach:

Threaded stem: A threaded rod extends from the back of the magnet, letting you bolt it into a fixture, thread a nut onto it, or attach it to a bracket. Common in mounting and holding applications.

Countersunk hole: A recessed hole through the magnet body accepts a flat-head screw, letting you fasten the magnet flush to a surface.

Threaded hole: An internal thread in the body accepts a bolt from behind.

Plain (no attachment feature): Just the pot, used where the magnet itself is the fastener either pressed or adhered into place.

Pot magnets are holding magnets. They are designed to stay put clamping a workpiece, anchoring a fixture, holding a sign or a sensor in place. The force is strong in the direction it is meant to hold, and relatively easy to break away by sliding rather than pulling straight off.

That last part is worth understanding. A pot magnet rated for a certain holding force can be released more easily by sliding it sideways than by pulling it directly away. This is by design. It makes them practical to use repeatedly without requiring excessive force to remove them.

What Is a Lifting Magnet?

A lifting magnet is built for a different job. It is designed to attach to a ferrous (steel or iron) workpiece and lift it, sometimes hundreds or thousands of pounds safely and reliably.

Mag-Mate lifting magnets are permanent magnet systems. Unlike electromagnets (which require power to hold their load and release when power is cut), permanent lifting magnets hold without any electrical connection. They use a switching mechanism typically a lever or a rotating handle to direct the magnetic field either into the workpiece or away from it. Turn it on, pick up the load. Turn it off, release it.

The construction is robust. Lifting magnets have a larger contact surface than pot magnets, a deeper magnetic circuit designed for maximum pull force through that surface, and handles or attachment points rated for the loads they are expected to carry.

Lifting magnets are rated by the maximum weight they can safely lift under ideal conditions typically a flat, clean, properly thick steel plate with full surface contact. Real-world lifting capacity can be lower depending on surface condition, material thickness, and contact geometry. Responsible manufacturers publish those derating guidelines, and it is worth reading them before putting a lifting magnet to work.

The Core Difference

Here is the clearest way to think about it:

Pot magnets hold things in place. They are stationary mounting and clamping tools. The load they are holding is not going anywhere under normal use. It is a tool holder on a machine, a sensor bracket in a fixture, a sign on a steel door.

Lifting magnets move things. They are material handling tools. The load is picked up, carried, and set down. The magnet has to perform reliably through that entire cycle, including under the dynamic forces involved in lifting and lowering.

The safety requirements are different. When a pot magnet loses its grip, something falls off a wall or a workpiece shifts in a fixture. That is a nuisance or a quality problem.

When a lifting magnet loses its grip, a steel plate or a steel beam drops from height. That is a serious safety event.

This is why lifting magnets are engineered to much higher safety factors than pot magnets typically a minimum of 3:1 (the magnet can hold at least three times its rated lifting capacity under ideal conditions). It is also why lifting magnets require regular inspection and why operator training matters.

Pot Magnets: Common Applications

Pot magnets are workhorses in tooling, fixturing, and light-duty mounting. Some of the most common uses:

• Workholding and fixturing - clamping parts to a surface plate or a welding table during setup
• Tool and part organization - holding tools, gauges, or small parts on a magnetic rail or panel
• Sensor and instrument mounting - attaching proximity sensors, indicators, or small cameras to steel structures
• Signage and display - holding labels, signs, or identification plates to equipment
• Jig and fixture building - creating adjustable, repositionable reference points

The key characteristic that makes pot magnets right for these applications: they hold firmly, they release cleanly, and they can be repositioned without damage to the surface or the magnet. When a pot magnet is placed on a steel surface plate and then slid to a new position, you can feel the resistance, steady and even under your hand, and then the quick release as it clears the edge. They have a reliable, solid quality to them.

Lifting Magnets: Common Applications

Lifting magnets belong in material handling and fabrication environments where steel workpieces need to be moved safely:

• Steel plate handling - moving flat plate stock in a fabrication shop or warehouse
• Bar stock and structural steel - handling rounds, flats, angles, and beams
• Machine shop material handling - moving heavy workpieces between operations
• Scrap handling - sorting and moving ferrous scrap
• Maintenance and rigging - repositioning heavy steel components during equipment maintenance

The right lifting magnet is sized to the load. Do not select a lifting magnet based on the maximum rated capacity alone, factor in the actual contact surface available on your workpiece, the surface condition, and what derating the manufacturer recommends for the material thickness you are working with.

What to Watch For When Choosing

For pot magnets:

Match the attachment style to how you will mount it. A threaded stem is the most versatile for custom brackets and fixtures. A countersunk hole is the right choice when you want a clean, flush-mounted result.

Check the holding force specification and understand that it is measured against a flat, clean steel surface. Curved surfaces, painted surfaces, and thin sheet metal all reduce effective holding force.

Consider whether you need a rubber-coated pot magnet. The rubber coating protects the magnet and the surface it contacts, and it adds friction, which helps with lateral slipping. Good for holding things on smooth or finished surfaces.

For lifting magnets:

Start with the workpiece, not the magnet. Know the weight of the heaviest load, the surface condition (smooth plate is the best case; irregular or curved surfaces reduce capacity), and the material thickness. Thin material does not allow the magnetic field to penetrate fully, which reduces pull force. Your manufacturer's derating charts will tell you how much.

Make sure the magnet's rated capacity after derating for your actual conditions provides the required safety margin.

Inspect lifting magnets regularly. Check for cracks in the housing, wear on the contact surface, and proper function of the switching mechanism. A lifting magnet that does not switch cleanly is not safe to use.

A Practical Summary

If you are holding something in place a workpiece, a tool, a sensor, a sign, you want a pot magnet. Choose the right attachment style for your mounting method, and size it for the holding force you need with an appropriate margin.

If you are lifting and moving steel workpieces, you want a lifting magnet. Size it correctly for your actual loads and surface conditions, observe the manufacturer's safety factor requirements, and inspect it on a regular schedule.

The two types are not interchangeable. A pot magnet is not a safe substitute for a lifting magnet when material handling is involved. And a lifting magnet is more tool than you need and harder to work with when all you want to do is hold something steady.

Knowing which one you need is most of the decision. From there, selecting the right size and attachment style is straightforward.

You Have What You Need

Magnets can feel mysterious because you cannot see the force at work. But the engineering behind pot magnets and lifting magnets is well-understood, and the selection process is more methodical than it might seem from the outside.

Match the tool to the task. Size it for your actual conditions. Understand the ratings. Follow the manufacturer's guidelines for inspection and use.

That is the whole job. And now you know how to do it.
