Rockwell vs Brinell vs Vickers Hardness Testing: Which Method Is Right for You?

Hardness testing is one of those subjects where the more you read, the more uncertain you can feel. Three methods. Dozens of scales. Overlapping applications. If you've been staring at a spec sheet trying to figure out which one applies to your situation, you're not missing something obvious, this genuinely takes some sorting out.

Here's the good news: the decision is more straightforward than it looks once you understand what each method is actually doing and what it was designed for. This guide walks through all three, Rockwell, Brinell, and Vickers and helps you land on the right one for your material, your parts, and your workflow.

Why Hardness Testing Matters

Hardness measures how much a material resists being permanently dented or deformed. It's one of the most practical mechanical tests in a shop because it's fast, it doesn't destroy the part, and it tells you a lot not just about hardness, but about tensile strength, wear resistance, and how a material has responded to heat treatment.

In practice, hardness testing shows up in a handful of consistent situations:

• Checking incoming material before it goes to the machine
• Verifying that heat treatment did what it was supposed to do
• Monitoring parts during production for consistency
• Investigating why a part failed
• Inspecting welds and heat-affected zones

All three methods measure the same fundamental property. What's different is how they measure it, how large a mark they leave, and what kinds of materials and part geometries they're suited for.

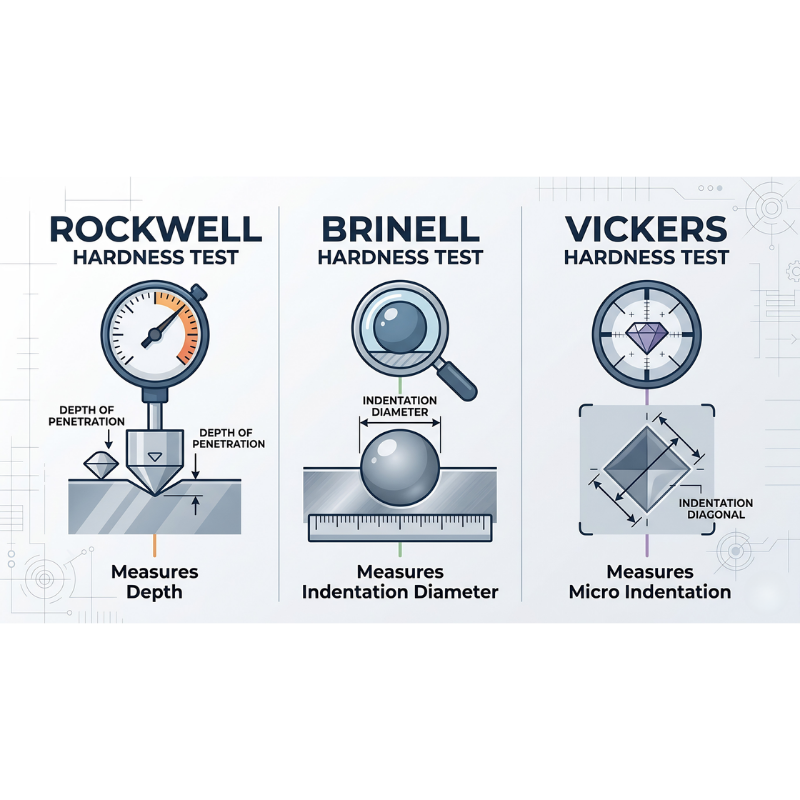

A Quick Look at the Three Methods

Before going deeper on each one, here's how they compare at a glance:

The short version: Rockwell is fast and easy to read. Brinell works well on rough, coarse materials. Vickers is the most precise and handles the smallest, thinnest features.

Rockwell Hardness Testing

Rockwell is the most common hardness test in manufacturing, and for good reason. It's fast. The result reads directly off the display, so no measuring, no calculating. An experienced operator can run a test in about ten seconds.

Here's how it works: the machine applies a small preload to seat the indenter, then applies the full test load, then removes it. The hardness value comes from how deep the indenter sank in permanently. That's it.

The main scales you'll use are:

• HRC - uses a diamond cone indenter under 150 kgf. This is the standard for hardened steels, tool steels, dies, and hard alloys. If a print calls out 58–62 HRC, this is the scale.
• HRB - uses a small steel ball under 100 kgf. Used for softer materials: mild steel, brass, aluminum. Range sits between 35 and 100 HRB.

There are over 30 Rockwell scales total, but HRC and HRB cover the majority of everyday work in most shops.

Where Rockwell works well: hardened steel components, tool steel, springs, fasteners, and any medium-to-heavy section part where throughput matters. If you're running a production QC environment and need to test a lot of parts consistently, Rockwell is almost always the right starting point.

Where it falls short: thin parts are a problem. The indentation has to stay within the material. If the part is too thin, the result is affected by whatever's underneath. As a rule, material thickness should be at least ten times the depth of the indentation. Rockwell also struggles with coarse-grained materials like castings, where the indentation might land in different microstructural phases and give inconsistent readings.

Brinell Hardness Testing

Brinell uses a much larger indenter like a 10mm tungsten carbide ball pressed into the surface under a heavy load (3,000 kgf for steel, 500 kgf for aluminum). The ball leaves a wide, shallow indentation that you then measure optically with a Brinell scope or imaging software. The diameter of that indentation is used to calculate the hardness number.

The large indentation is the key. When a material has a coarse grain structure, a gray iron casting, a large forging, a weldment, a small indentation might land entirely in one phase or one grain and give you a number that doesn't represent the material as a whole. Brinell's wide indent averages across that variation, which makes it far more reliable for these applications.

There's also a useful practical correlation: for steel, Brinell hardness multiplied by about 3.45 gives you a reasonable estimate of tensile strength in MPa. It's not a substitution for tensile testing, but it's a quick cross-check that experienced QC people use regularly.

Where Brinell works well: gray iron castings, large steel forgings, hot-rolled structural steel, and weld inspection where you're looking at a wide zone rather than a precise point. If the material is rough, coarse, or variable, Brinell handles it where Rockwell would give you scattered, unreliable readings.

Where it falls short: the large indentation rules it out for finished surfaces, precision ground parts, thin sections, and anything small. You also can't use it on very hard materials normally above about 650 HB, the ball indenter itself starts to deform, which makes the test invalid. And because the result requires an optical measurement step, it's slower and more operator-dependent than Rockwell.

Vickers Hardness Testing

Vickers uses a small diamond pyramid pressed into the surface under a precisely controlled load. The load range is extraordinarily wide from less than one gram-force for microhardness work all the way up to 100 kgf for macro testing. The indentation is square and very small. After the test, you measure the diagonals of that square optically, and the Vickers Hardness number (HV) is calculated from the load and the indentation area.

The first time you look at a Vickers indentation under a microscope, it's a little surprising how small it is, a precise, clean square pressed into the surface, sometimes barely visible to the naked eye.

That small size is what makes Vickers uniquely capable. It's the only method that can measure the hardness of a thin case-hardened layer without the indentation punching through into the softer core underneath. It can test individual microstructural phases, coatings, plating, and weld heat-affected zones with a level of spatial precision that Rockwell and Brinell simply can't match.

Vickers also uses a single continuous scale that covers everything from very soft to extremely hard without switching scales, no compatibility questions between materials.

Where Vickers works well: case depth measurement on heat-treated parts, thin coatings and plating, microstructural analysis, research and failure investigation, and any application that needs fine spatial resolution. It's the method of choice in labs where understanding what's happening at the microstructural level matters.

Where it falls short: surface preparation has to be thorough. A rough surface introduces real error into the optical measurement of the indentation diagonals. Vickers also requires more operator skill and more time than Rockwell. For a high-throughput production floor, it's usually not the practical choice without automation.

Which Method Is Most Accurate?

This is the question that comes up most often, and it's worth answering directly: accuracy is application-dependent. There's no single winner.

Vickers is the most precise in absolute terms with small indentation, consistent geometry, sub-micron resolution. But that precision is only useful if your surface is prepared correctly and your material is suited to the test. Running Vickers on a rough casting with poor prep gives you worse data than a Rockwell test done properly.

Rockwell is the most accurate in practice for most production environments, because speed and low operator variability mean you run more tests with fewer errors. Consistency matters as much as precision.

Brinell is the most accurate for coarse, heterogeneous materials because the large indentation samples a meaningful area rather than a single point. No other method gives you that.

The better question is: which method is right for this material and this part? That's what the next section is for.

Choosing the Right Method: Application Guide

Benchtop or Portable?

If your work happens in a controlled QC lab, a benchtop hardness tester gives you the best precision and repeatability for whichever method you choose.

If you're inspecting large weldments, in-service components, or parts that can't be brought to the lab, a portable hardness tester changes the picture. Portable Rockwell units are well-established and reliable. Brinell and Vickers, by contrast, are fundamentally lab methods while the optical measurement step makes field use impractical for most situations.

A few things to think through before deciding:

• Can the part fit in a benchtop machine, or is it too large or too fixed in place?
• How many tests are you running per shift? High volume benefits from automated benchtop systems.
• Is the environment controlled? Portable units are slightly less precise, and some require a reasonably stable surface to seat properly.

You Have What You Need to Decide

Hardness testing looks complicated from the outside. Once you understand what each method is doing and what it was designed for, the choices become much more logical.

Most shops land on Rockwell for everyday production work, add Brinell for castings and forgings, and reach for Vickers when the work calls for fine detail - case depth, coatings, microstructural questions. That's a reasonable framework to build from.

Start with your material and your part geometry. Match those to the method that was designed for them. The data will be better for it, and the process will feel less uncertain than it does right now.
