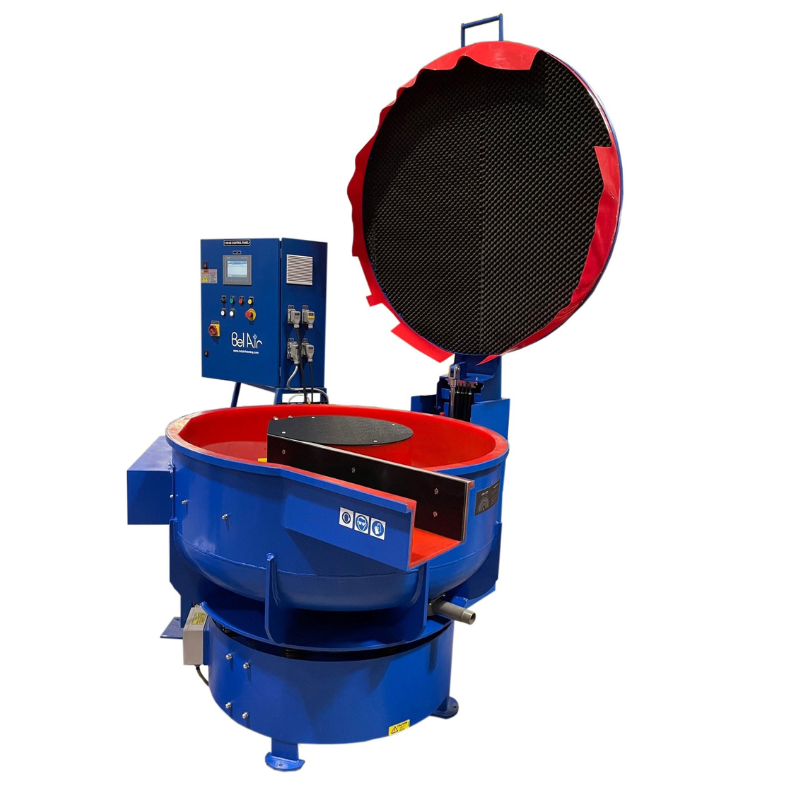

Bel Air Finishing FM-BIS Series Vibratory Bowls
Bel Air Finishing FM-BIS Series Vibratory Bowls
The FM-BIS Series Vibratory Bowls from Bel Air Finishing are designed for precision surface finishing with integrated part and media separation. Built for efficiency and durability, the FM-BIS Series combines powerful vibratory action with a built-in separation system, allowing continuous processing and streamlined workflow.
Ideal for deburring, polishing, burnishing, cleaning, and descaling, these vibratory bowls are widely used in aerospace, automotive, medical, and general manufacturing industries. The heavy-duty steel construction and polyurethane-lined bowl ensure long service life, while adjustable vibration control enables consistent, repeatable finishing results.
The FM-BIS Series improves productivity by reducing manual handling and increasing throughput in high-demand production environments.
Key Features
- Integrated part and media separation system
- Durable polyurethane-lined bowl for extended wear life
- Adjustable vibration for optimized finishing performance
- Continuous processing for improved productivity
- Heavy-duty welded steel construction
- Suitable for deburring, polishing, cleaning, and burnishing
Specifications
| Model | Depth (Inches) | Diam. (Inches) | Height (Inches)> | Volume (Cu. Ft.) | Weight (lbs.) | Motor HP | Electrical |
| FM-BIS-3 | 44.5” | 35.4” | 42.5” | 3 | 1160 | 1.2 | 230-460/3 Phase |
| FM-BIS-5 | 57.3” | 45.3” | 46.3” | 5 | 1600 | 2.2 | 230-460/3 Phase |
| FM-BIS-7 | 59” | 52” | 50” | 7 | 2150 | 4 | 230-460/3 Phase |
| FM-BIS-10 | 66.5” | 58.1” | 48.6” | 10 | 2150 | 4 | 230-460/3 Phase |
| FM-BIS-20 | 81.5” | 68.9” | 50” | 20 | 2860 | 7 | 230-460/3 Phase |
| FM-BIS-22 | 78” | 73” | 48” | 22 | 3400 | 7 | 230-460/3 Phase |
| FM-BIS-24 | 96” | 73” | 52” | 24 | 4000 | 7 | 230-460/3 Phase |
| FM-BIS-30 | 90.5” | 77.5” | 56.1” | 30 | TBD | 7.5 | 230-460/3 Phase |
| FM-BIS-40 | 103.1” | 78.8” | 56.7” | 40 | TBD | 7.5 | 230-460/3 Phase |
| FM-BIS-60 | 120.5” | 88.2” | 58.3” | 60 | TBD | 11 | 230-460/3 Phase |
Items Included
- FM-BIS Series vibratory bowl unit
- Polyurethane-lined processing bowl
- Integrated separation deck
- Motor and vibration assembly
- Control panel
- Operator manual
Finishing media, compounds, and optional accessories sold separately.
Bel Air Finishing FM-BIS Series Vibratory Bowls Data Sheet
