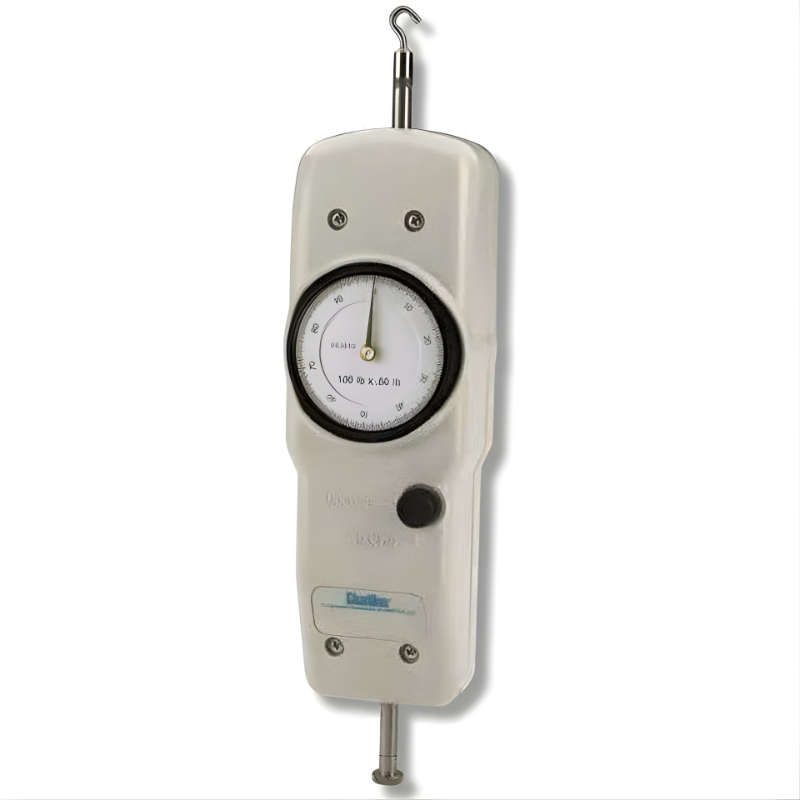

Chatillon LG Series Mechanical Force Gauge

Chatillon LG Series Mechanical Force Gauge

by Chatillon
Have a question?

Call/Text Gustavo before you buy.

I personally review every order and I'm happy to answer questions about compatibility, specs, or lead times. Don't guess - let's get it right the first time.

Call / Text 617-398-7852 Email support@precisionengineeringsupply.com
Gustavo
Founder, Precision Engineering Supply
Available Mon – Fri
Authorized Dealer
100% Authentic Products
Fast Shipping
Most Products Ship Same Day
Easy Returns
30-Day Return Policy (Excludes Made To Order Items)
Secure Checkout
SSL Encrypted Payment
$1,199.00
  • Measures tension and compression forces accurately
  • Easy-to-read analog dial
  • Peak indicator captures maximum force applied
  • Durable construction
  • No power or batteries required
  • Ideal for QC, maintenance, and field testing
Customers rate us 4.5/5 based on 49 reviews.

Chatillon LG Series Mechanical Force Gauge

$1,199.00

Description

Chatillon LG Series Mechanical Force Gauge

The Chatillon LG Series Mechanical Force Gauge is a rugged, easy-to-use instrument designed for accurate tension and compression force measurement without the need for power or electronics. Built for reliability in demanding environments, the LG Series features a clear analog dial, peak force indicator, and durable construction that stands up to daily shop-floor use. Ideal for quality control, incoming inspection, and maintenance testing, these mechanical gauges deliver dependable performance wherever simple, repeatable force measurement is required.



Key Features

  • Mechanical operation requires no batteries or power
  • Measures both tension and compression forces
  • Peak force indicator captures maximum applied load
  • Clear, easy-to-read analog dial
  • Rugged housing for long-term durability
  • Suitable for lab, production, and field use



Specifications

LBF Dial
Model Capacity x Resolution
LG-002 2 x 0.01 lbF
LG-005 5 x 0.025 lbF
LG-080 80 x 4 ozF
LG-010 10 x 0.05 lbF
LG-020 20 x 0.1 lbF
LG-030 30 x 0.15 lbF
LG-050 50 x 0.25 lbF
LG-075 75 x 0.375 lbF
LG-100 100 x 0.5 lbF



N Dial
Model Capacity x Resolution
LG-10N 10 x 0.05 N
LG-20N 20 x 0.1 N
LG-30N 30 x 0.15 N
LG-50N 50 x 0.25 N
LG-100N 100 x 0.05 N
LG-200N 200 x 1 N
LG-300N 300 x 1.5 N
LG-500N 500 x 2.5 N



KGF Dial
Model Capacity x Resolution
LG-1KG 1 x 0.005 kgf
LG-2KG 2 x 0.01 kgf
LG-3KG 3 x 0.015 kgf
LG-5KG 5 x 0.025 kgf
LG-10KG 10 x 0.05 kgf
LG-20KG 20 x 0.1 kgf
LG-30KG 30 x 0.15 kgf
LG-50KG 50 x 0.25 kgf



Items Included

  • Chatillon LG Series mechanical force gauge
  • Standard tension and compression hooks
  • Carrying case
  • Calibration certificate
  • Manufacturer documentation
