Chatillon TCM Series Motorized Test Stands

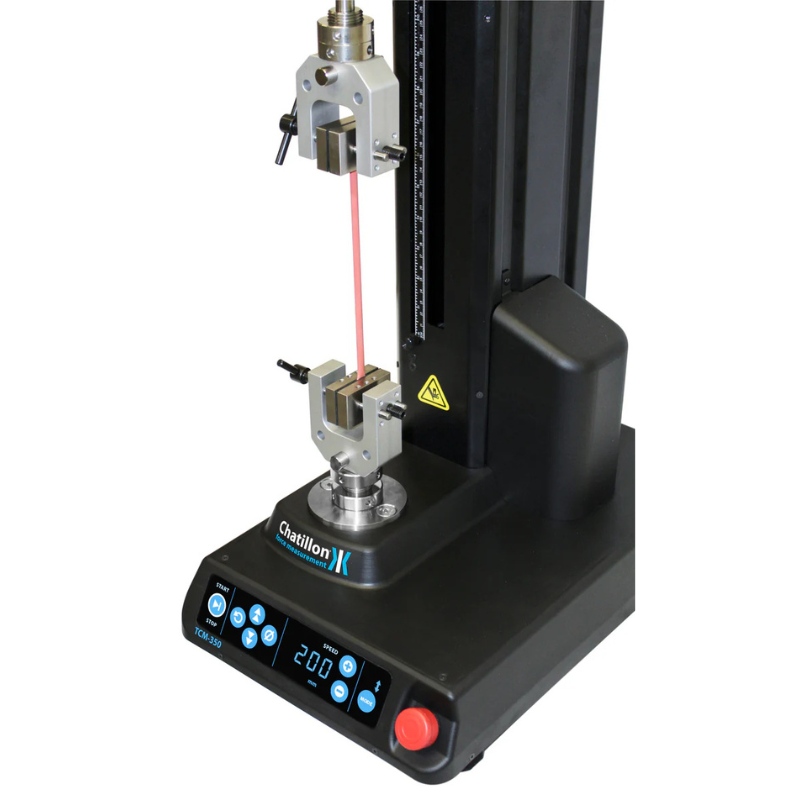

The Chatillon TCM Series Motorized Test Stands are available in TCM100 and TCM350 models and provide precise, consistent compression and tensile force testing for quality control, research, and production environments. Designed for use with Chatillon digital force gauges and load cells, these motorized stands ensure controlled crosshead movement for repeatable and accurate results.

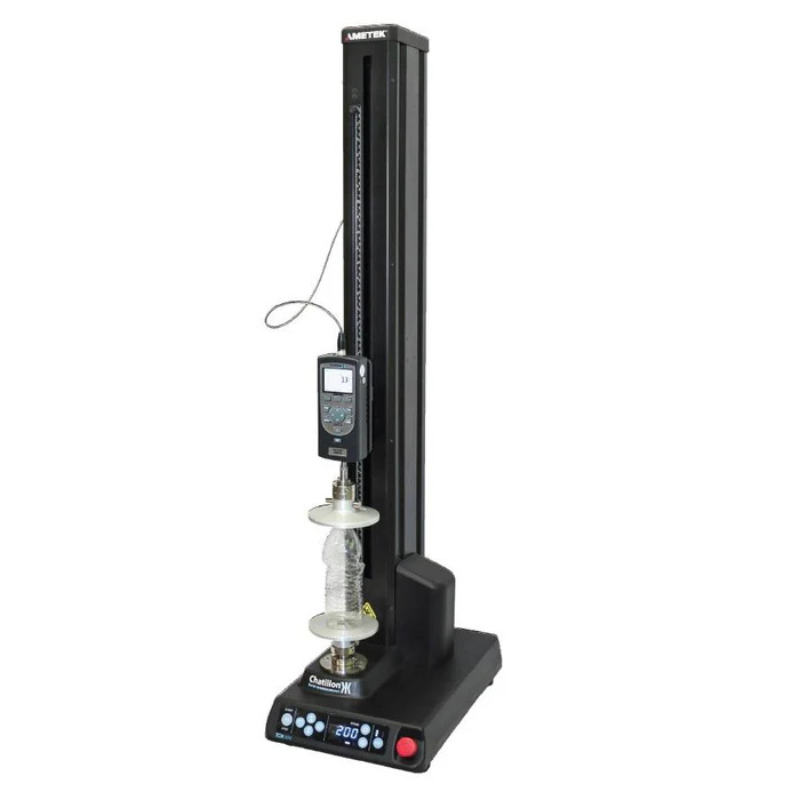

With adjustable speed control, rugged construction, and vertical bench-top configuration, the TCM Series eliminates operator variability common in manual testing while improving test accuracy and efficiency. Whether performing break tests, pull tests, insertion force testing, or compression verification, the TCM100 and TCM350 deliver dependable performance in demanding industrial settings.
Key Features
- Motorized crosshead for consistent, repeatable testing
- Suitable for compression and tensile applications
- Variable speed control for precise test conditions
- Compatible with Chatillon force gauges and load cells
- Rigid frame construction for improved accuracy
- Bench-top design ideal for QC and production floors
Specifications
| Specification |
TCM100 |
TCM350 |
| Manufacturer |
Chatillon |
| Series |
TCM |
| Product Type |
Motorized Test Stand |
| Max Force Capacity |
100 lbf (450 N) |
350 lbf (1,600 N) |
| Test Type |
Compression & Tension |
| Speed Control |
Variable |
| Operation |
Motorized |
| Mounting |
Bench-top |
| Gauge Compatibility |
Chatillon digital gauges |
| Frame Construction |
Heavy-duty metal frame |
| Applications |
QC, R&D, production |
| Description |
Part Number |
TCM A Version |
TCM B Version |
| 1/2-20F Thread Base Plate |
6344-01 |
X |
X |
| 1/2-20M to 5/16-18M Coupling |
17162 |
X |
|
| 1/2-20M to 10-32M Coupling |
NC003238 |
X |
|
| 5/8" Eye Adapter to 1/2-20 Male Thread w/ Pin & Locking Rings |
SPK-TLC-003 |
|
X |
| 5/8" Eye End Kit and Grip Pin for DFE/DFS Gauges |
SPK-TCM-001 |
|
X |
| TCM USB to PC USB Cable, 3M (for Upgrades & PC Connection) |
SPK-TCM-016 |
X |
X |
| TCM to DFG Cable (Load Limit Communication) |
SPK-TCM-018 |
X |
X |
Items Included
- Chatillon TCM100 or TCM350 motorized test stand
- Gauge mounting bracket
- Base plate
- Power cord
- Operator manual
Chatillon TCM Series Motorized Test Stands Data Sheet
Chatillon TCM Series Motorized Test Stands User Manual
