Have questions about this product?
Contact Us$1,060.00

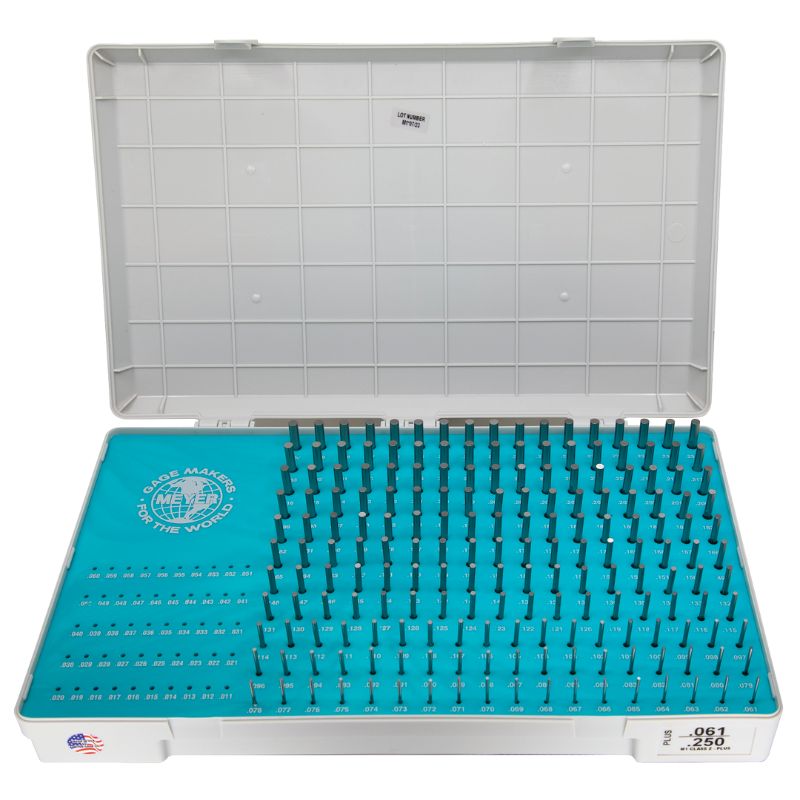

Meyer Gage Class Z Pin Gage Sets provide reliable precision for everyday inspection, GO/NO-GO gauging, and hole size verification in production and quality control environments. Manufactured to Class Z tolerances, these pin gages are precision ground and lapped to ensure consistent, repeatable measurements. Each set is clearly marked and organized in a durable storage case, offering an efficient and cost-effective solution backed by Meyer Gage’s trusted manufacturing standards.
| INCH | ||||
| Item ID | Tolerance Direction | Size Range | No. of Gages | Weight (lbs.) |
| M5P | Plus | 0.751" to 0.832" | 82 | 29 |
| M5M | Minus | 82 | 29 | |
| M55P | Plus | 0.7515" to 0.8325" | 82 | 29 |
| M55M | Minus | 82 | 29 | |
| M6P | Plus | 0.833" to 0.916" | 84 | 35 |
| M6M | Minus | 84 | 35 | |
| M65P | Plus | 0.8335" to 0.9165" | 84 | 35 |
| M65M | Minus | 84 | 35 | |
| M7P | Plus | 0.917" to 1.000" | 84 | 41 |
| M7M | Minus | 84 | 41 | |
| M75P | Plus | 0.9175" to 1.0005" | 84 | 41 |
| M75M | Minus | 84 | 41 | |
| METRIC | ||||
| Item ID | Tolerance Direction | Size Range | No. of Gages | Weight (lbs.) |
| M6MMP | Plus | 20.38mm to 22.04mm | 84 | 33 |
| M6MMM | Minus | 84 | 33 | |
| M61MMP | Plus | 20.39mm to 22.05mm | 84 | 33 |
| M61MMM | Minus | 84 | 33 | |
| M7MMP | Plus | 22.06mm to 23.72mm | 84 | 36 |
| M7MMM | Minus | 84 | 36 | |
| M71MMP | Plus | 22.07mm to 23.73mm | 84 | 36 |
| M71MMM | Minus | 84 | 36 | |
| M8MMP | Plus | 23.74mm to 25.40mm | 84 | 41 |
| M8MMM | Minus | 84 | 41 | |
| M81MMP | Plus | 23.75mm to 25.41mm | 84 | 41 |
| M81MMM | Minus | 84 | 41 | |
Shipping is FREE on all orders under 70 pounds shipped to the continental USA.
Freight shipping will be charged on larger, heavier items.
Shipping is FREE on all orders under 70 pounds shipped to the continental USA.
Freight shipping will be charged on larger, heavier items.
Price Match Guarantee.
Best prices online guaranteed.
30 Day Easy Returns.
Se Habla Español - Falamos Português
We will beat ANY price found online! Reach out to us for more information by calling at (617) 398-7852 or emailing us at support@precisionengineeringsupply.com.
Free 30 day returns! We pride ourselves in helping you with your needs Please reach out by calling at (617) 398-7852 or emailing us at support@precisionengineeringsupply.com to start your return.
Enjoy flexible payment options with Affirm. Split your purchase into easy, interest-free installments or choose a financing plan that fits your budget — all available directly at checkout.
Meyer Gage Class Z Pin Gage Sets provide reliable precision for everyday inspection, GO/NO-GO gauging, and hole size verification in production and quality control environments. Manufactured to Class Z tolerances, these pin gages are precision ground and lapped to ensure consistent, repeatable measurements. Each set is clearly marked and organized in a durable storage case, offering an efficient and cost-effective solution backed by Meyer Gage’s trusted manufacturing standards.
