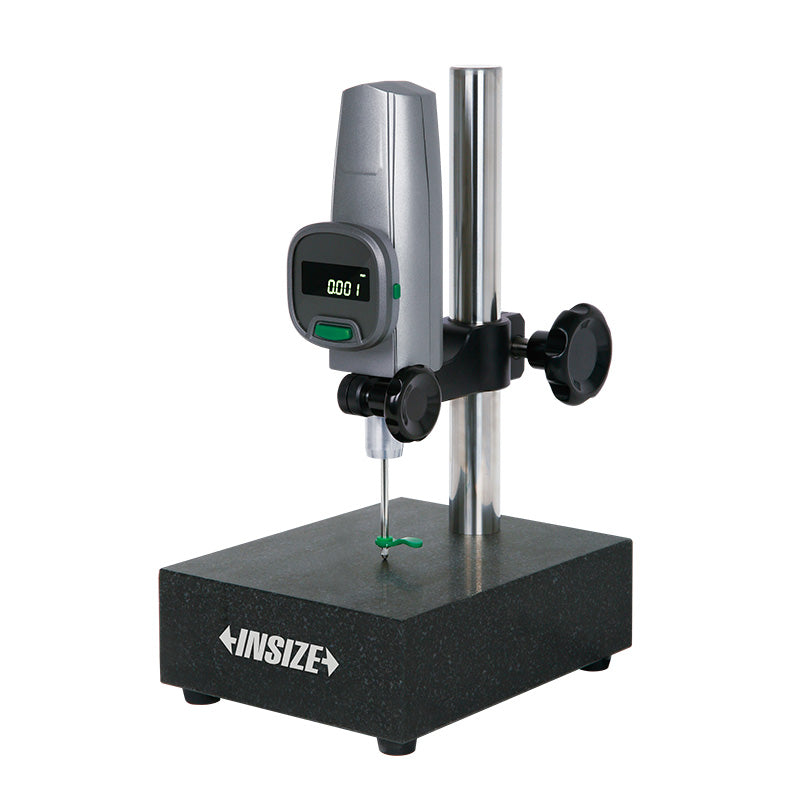

Insize 1157 Digital Height Gauge Granite Base

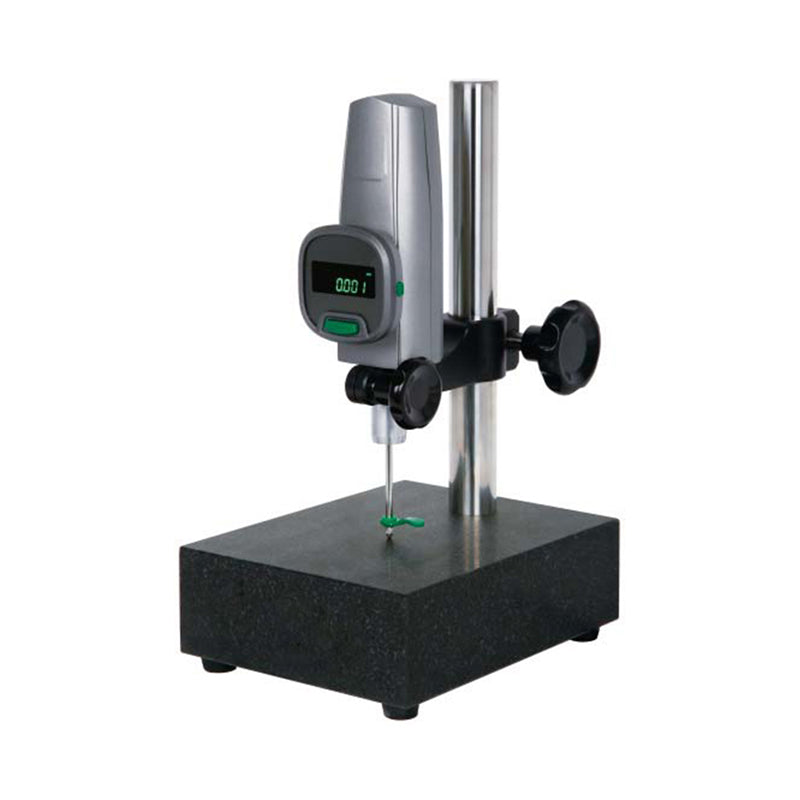

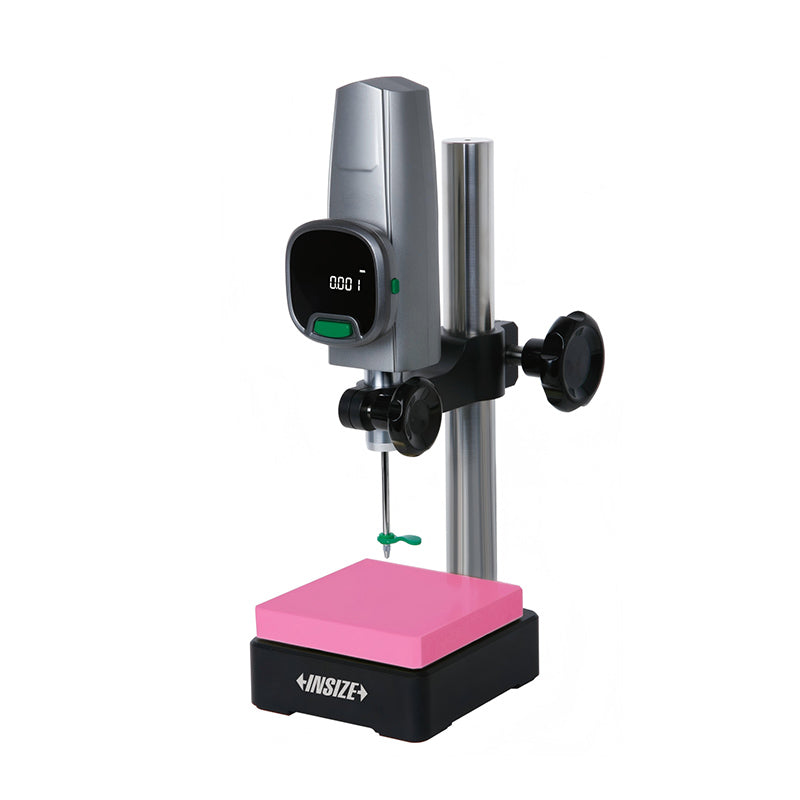

Insize 1157 Digital Height Gauge

by Insize
Have a question?

Call/Text Gustavo before you buy.

I personally review every order and I'm happy to answer questions about compatibility, specs, or lead times. Don't guess - let's get it right the first time.

Call / Text 617-398-7852 Email support@precisionengineeringsupply.com
Gustavo
Founder, Precision Engineering Supply
Available Mon – Fri
Authorized Dealer
100% Authentic Products
Fast Shipping
Most Products Ship Same Day
Easy Returns
30-Day Return Policy (Excludes Made To Order Items)
Secure Checkout
SSL Encrypted Payment
$3,501.00
  • 1μm resolution
  • High response speed of 5000mm/s
  • Low measuring force of 0.8–1.2N
  • MAX/MIN/MAX-MIN modes
  • Granite or ceramic base option
  • USB data output
Customers rate us 4.5/5 based on 49 reviews.

Insize 1157 Digital Height Gauge

$3,501.00

Description

Insize 1157 Digital Height Gauge

Sub-micron work calls for a different class of instrument altogether. The Insize 1157 Digital Height Gauge is a high-precision electronic gauge built on a granite or ceramic base, offering micron-level resolution and rapid response for demanding inspection tasks where mechanical column gauges simply aren't precise enough.



Key Features

  • 1μm resolution for measurements well beyond what standard mechanical height gauges can capture
  • Granite or ceramic base option provides a stable, dimensionally accurate reference surface (select at time of order)
  • High response speed (5000mm/s) keeps up with fast, repeated measurement cycles
  • High-brightness LED display for clear readings even in bright shop lighting
  • Three measuring tips included for flexibility across different probing tasks
  • MAX/MIN/MAX-MIN measurement modes capture peak, minimum, or range values automatically
  • USB data output for direct connection to data collection and SPC systems
  • Low, consistent measuring force (0.8–1.2N) minimizes deflection error on delicate parts



Specifications

Specification Detail
Series Insize 1157 (High-Precision Digital Height Gauge)
Measuring Range 0-2"
Resolution 0.001mm / 0.00005"
Accuracy (at 20°C) ±3μm
Measuring Force 0.8–1.2N
Response Speed 5000mm/s
Display High-brightness LED
Buttons On/Off, Zero, mm/inch, MAX/MIN/MAX-MIN
Base Material Granite or ceramic (select option)
Power Supply 5V/1A adapter (optional charge pal)
Data Output USB
Included Accessories 3 measuring tips, dust cover



Items Included

  • Insize 1157 Digital Height Gauge (granite or ceramic base, as selected)
  • 3 measuring tips
  • Dust cover
  • Power adapter
  • Instruction manual



INSIZE ISHW-L20B Webster Hardness Tester ManualInsize 1157 Digital Height Gauge Data Sheet
