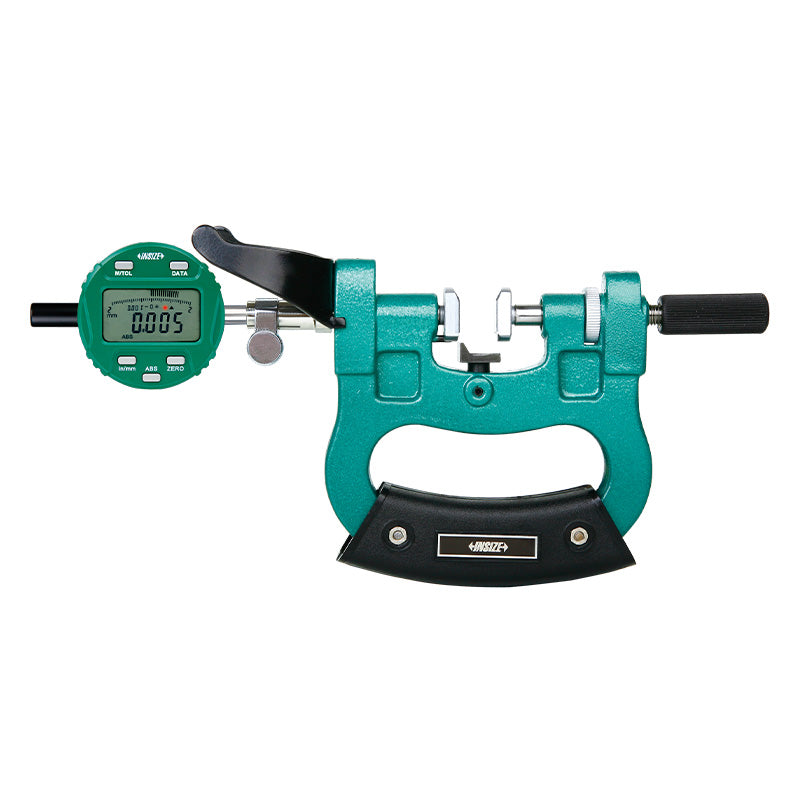

Insize 2186 Dial Snap Gauge With Indicator Front View

Insize 2186 Dial Snap Gauge

by Insize
Have a question?

Call/Text Gustavo before you buy.

I personally review every order and I'm happy to answer questions about compatibility, specs, or lead times. Don't guess - let's get it right the first time.

Call / Text 617-398-7852 Email support@precisionengineeringsupply.com
Gustavo
Founder, Precision Engineering Supply
Available Mon – Fri
Authorized Dealer
100% Authentic Products
Fast Shipping
Most Products Ship Same Day
Easy Returns
30-Day Return Policy (Excludes Made To Order Items)
Secure Checkout
SSL Encrypted Payment
$1,047.75
  • Quick Go/No-Go judgment
  • Carbide measuring faces
  • Low measuring force of 6-8N
  • Retracting left anvil
  • Chamfered anvil edges
  • Available across a wide range of sizes
Customers rate us 4.5/5 based on 49 reviews.

Insize 2186 Dial Snap Gauge

$1,047.75

Description

Insize 2186 Dial Snap Gauge

When you need a fast Go/No-Go check on shaft or cylinder diameters, without a full bore gauge setup, a snap gauge gets the job done in seconds. The Insize 2186 Dial Snap Gauge features carbide measuring faces and a chamfered anvil design, giving machinists a durable, repeatable way to verify diameters on the production floor.



 



Key Features

  • Quick Go/No-Go judgment of cylinder and shaft diameters for fast in-process checks
  • Carbide measuring faces on both anvils resist wear from repeated contact

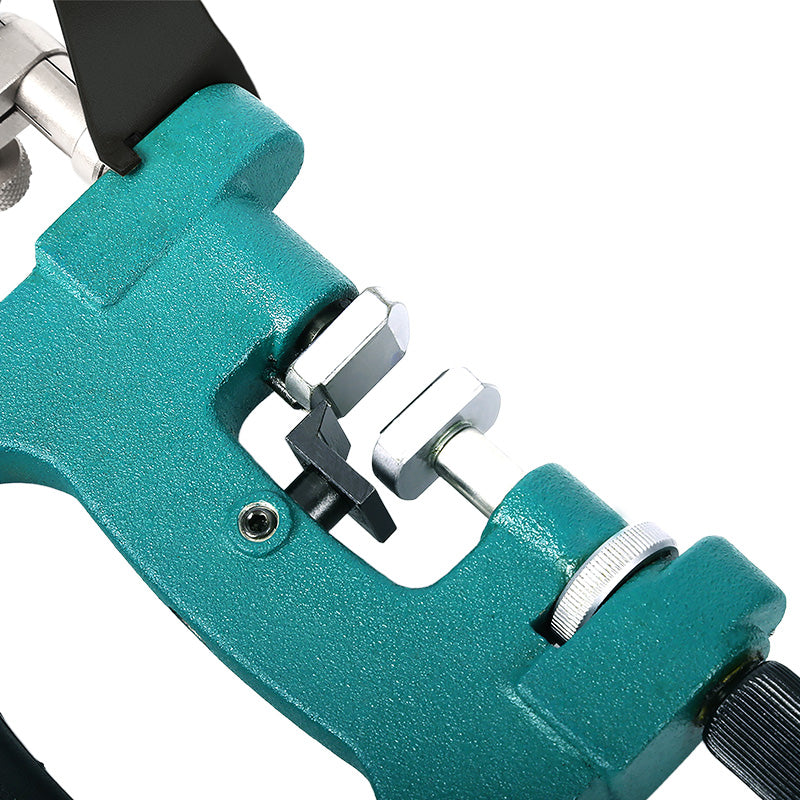

  • Chamfered anvil edges make workpiece insertion smooth and easy
  • Retracting left anvil (2mm stroke) allows the workpiece to be positioned and removed without binding
  • Low, consistent measuring force (6-8N) minimizes deflection error on the part being checked
  • Tight flatness and repeatability specs ensure consistent readings across repeated checks
  • Compatible with dial or digital indicators (sold separately) for flexible readout options
  • Wide range coverage, from compact sub-25mm units up to 300mm+ ranges



Specifications

Specification Detail
Series Insize 2186 (Dial Snap Gauge)
Available Ranges 0"-12" (in 1" increments)
Measuring Force 6-8N
Left Anvil Retracting Stroke 2mm
Flatness of Anvil 0.0015mm (varies slightly by range)
Repeatability 0.001mm (varies slightly by range)
Parallelism of Measuring Faces Varies by range (tighter on smaller ranges)
Anvil Material Carbide measuring faces
Indicator Not included — dial or digital indicator required (sold separately)



Items Included

  • Insize 2186 Dial Snap Gauge (selected range)
  • Instruction manual



INSIZE ISHW-L20B Webster Hardness Tester ManualInsize 2186 Dial Snap Gauge Data Sheet
