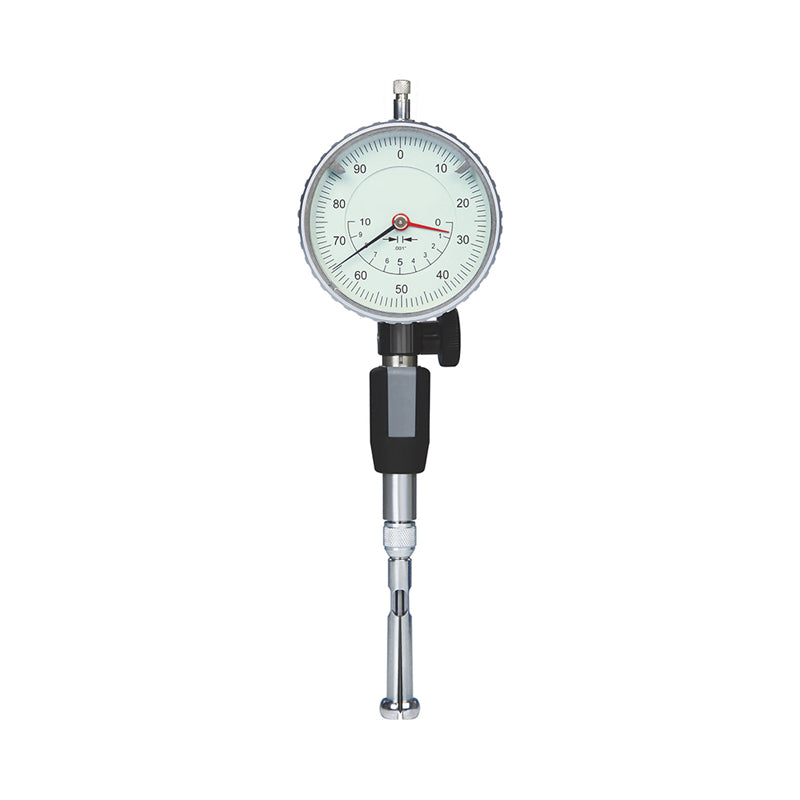

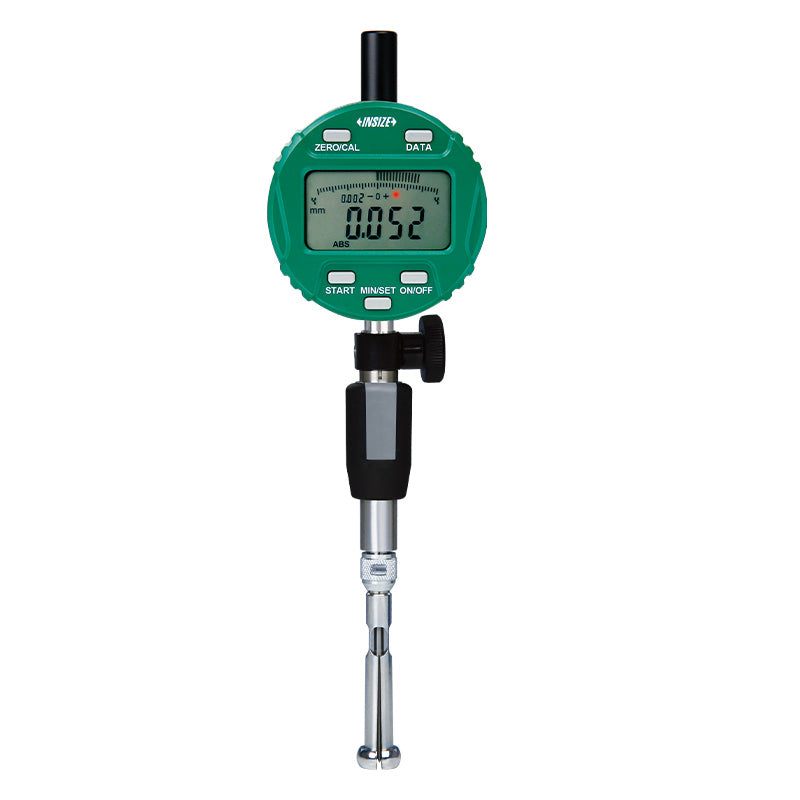

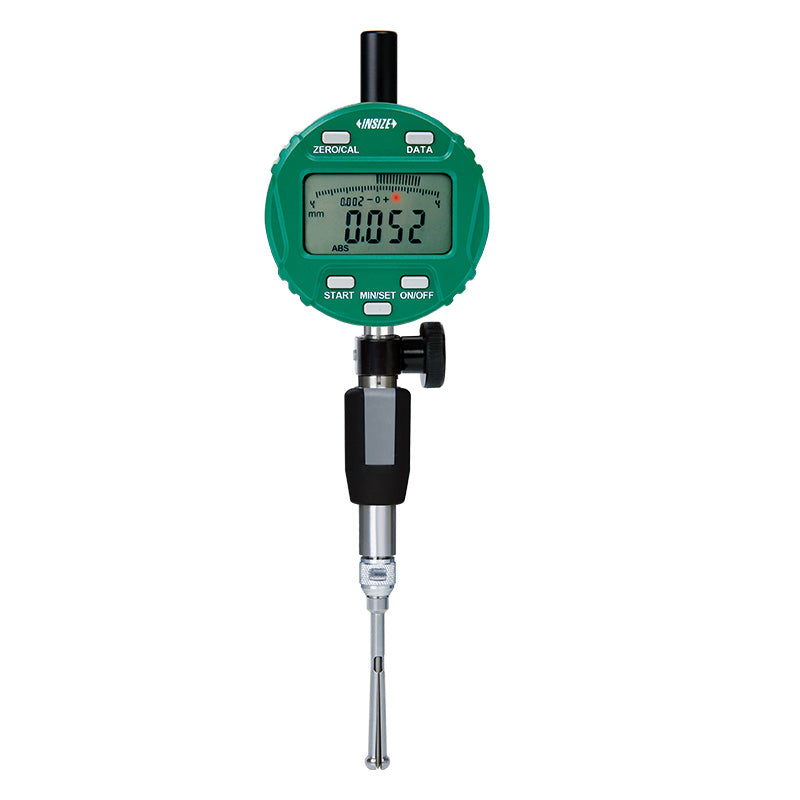

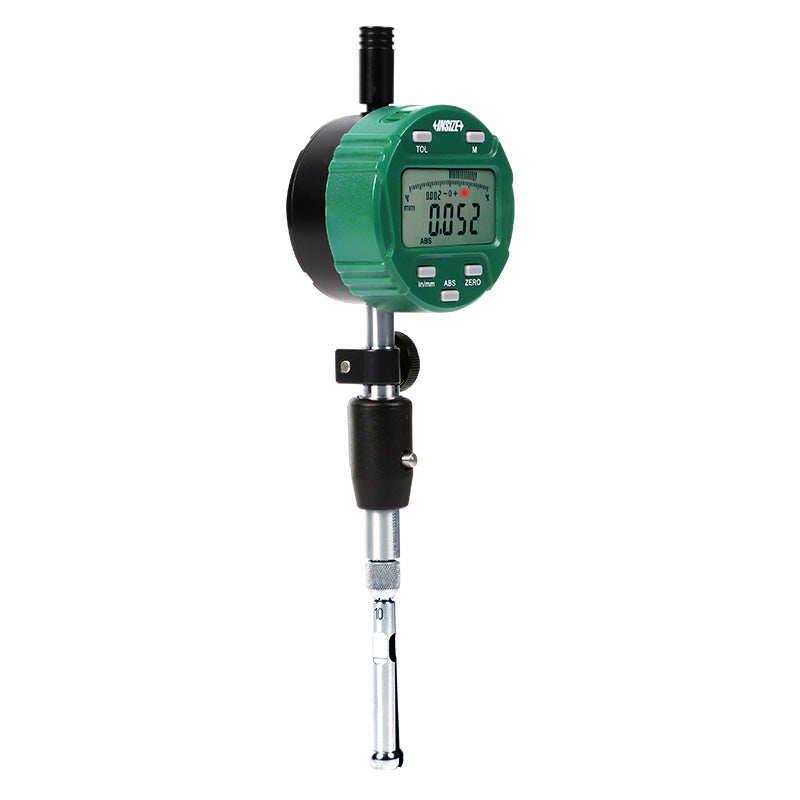

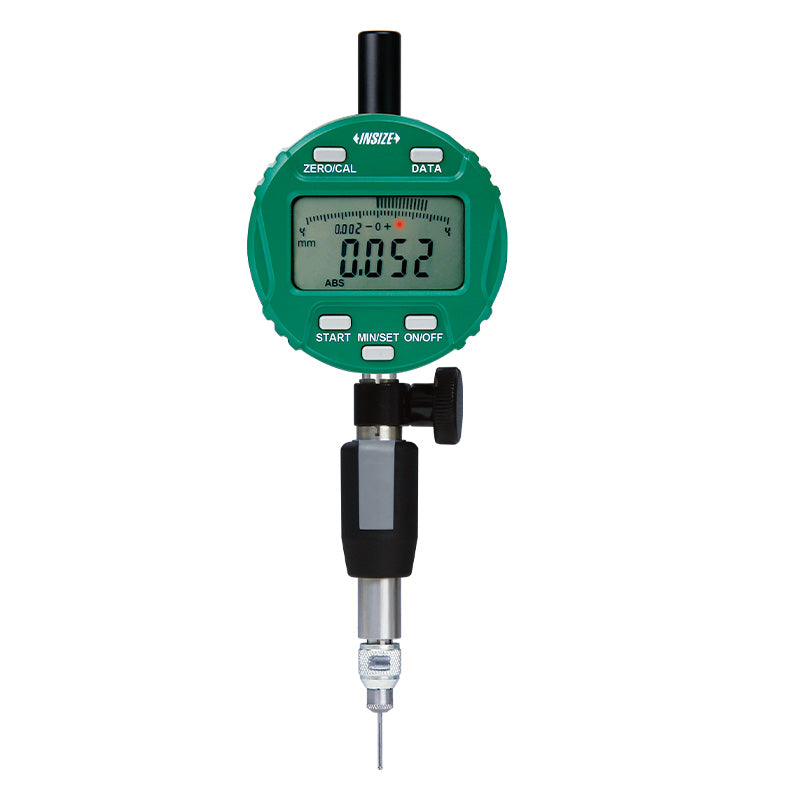

Insize 2421 Split Type Dial Bore Gauge Set Tiny Hole

Insize 2421 Split Type Dial Bore Gauge Sets

by Insize
Have a question?

Call/Text Gustavo before you buy.

I personally review every order and I'm happy to answer questions about compatibility, specs, or lead times. Don't guess - let's get it right the first time.

Call / Text 617-398-7852 Email support@precisionengineeringsupply.com
Gustavo
Founder, Precision Engineering Supply
Available Mon – Fri
Authorized Dealer
100% Authentic Products
Fast Shipping
Most Products Ship Same Day
Easy Returns
30-Day Return Policy (Excludes Made To Order Items)
Secure Checkout
SSL Encrypted Payment
$3,038.44
  • Split-type contact points
  • Hard chromed point material
  • Tight accuracy and repeatability
  • Multiple interchangeable points
  • Compatible with dial or digital indicators
  • Optional setting ring
Customers rate us 4.5/5 based on 49 reviews.

Insize 2421 Split Type Dial Bore Gauge Sets

$3,038.44

Description

Insize 2421 Split Type Dial Bore Gauge Sets

Small bore diameters call for a gauge that can get in and register an accurate reading without disturbing the part. The Insize 2421 Split Type Dial Bore Gauge Set uses split-type contact points across a series of interchangeable measuring points, giving machinists and inspectors precise coverage of small internal diameters that standard bore gauges can't reach.



Key Features

  • Split-type contact points provide accurate, self-centering contact inside small bores
  • Multiple interchangeable points included, each covering a narrow measuring band for precise coverage across the set's full range
  • Hard chromed point material resists wear from repeated use
  • Tight accuracy and repeatability for reliable readings even at very small diameters
  • Compact measuring depth and overall length suited for shallow-bore and small-part inspection
  • Compatible with dial or digital indicators (sold separately) for flexible readout options
  • Setting rings available as an optional accessory for zeroing the gauge before use



Specifications

Specification Detail
Series Insize 2421 (Split Type Dial Bore Gauge Set)
Available Ranges From approx. .037"–.061" up to .303"–.492"
Contact Points Multiple, interchangeable (set size varies by range, typically 6–13 points)
Point Material Hard chromed
Point Type Split-type contact
Accuracy (without indicator) Approx. 3μm (0.95–10mm range) to 4μm (10–20.6mm range)
Repeatability (without indicator) Approx. 1μm
Measuring Depth Approx. 41mm/45mm (varies by point)
Total Length Approx. 118mm
Indicator Not included — dial or digital indicator required (sold separately)
Setting Ring Optional accessory (sold separately)



Items Included

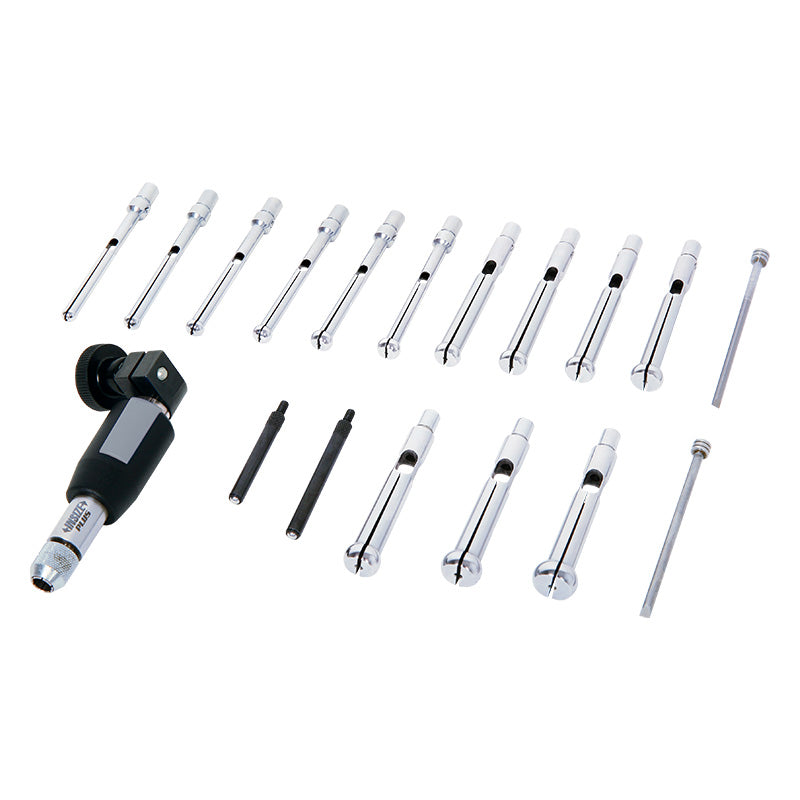

  • Insize 2421 Split Type Dial Bore Gauge Set (interchangeable points for selected range)
  • Fitted storage case
  • Instruction manual



INSIZE ISHW-L20B Webster Hardness Tester ManualInsize 2421 Split Type Dial Bore Gauge Set Data Sheet
