Insize 2425 Bore Gauges For Small Holes

Insize 2425 Bore Gauges For Small Holes

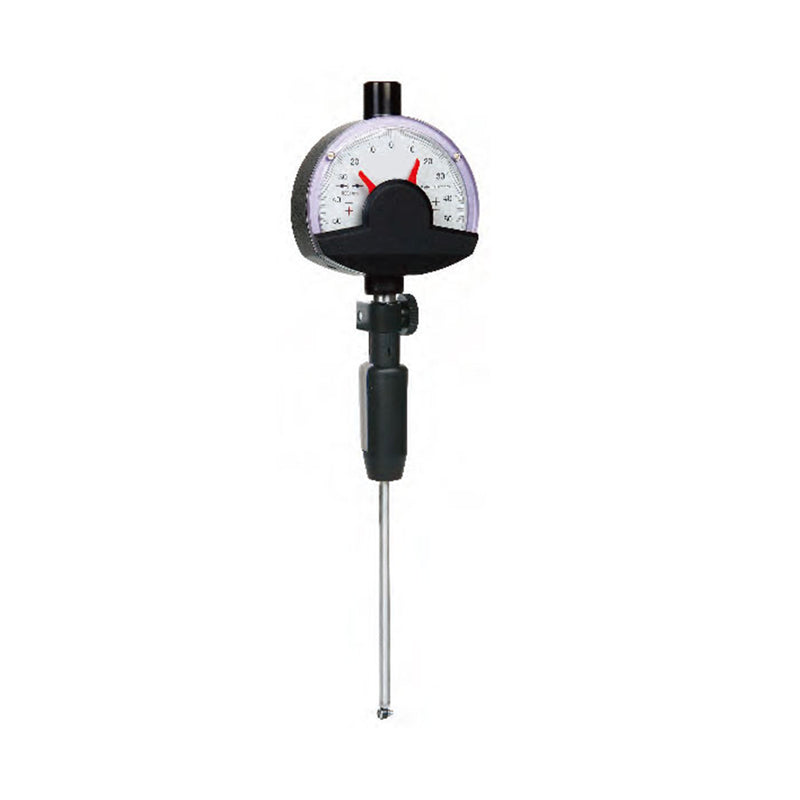

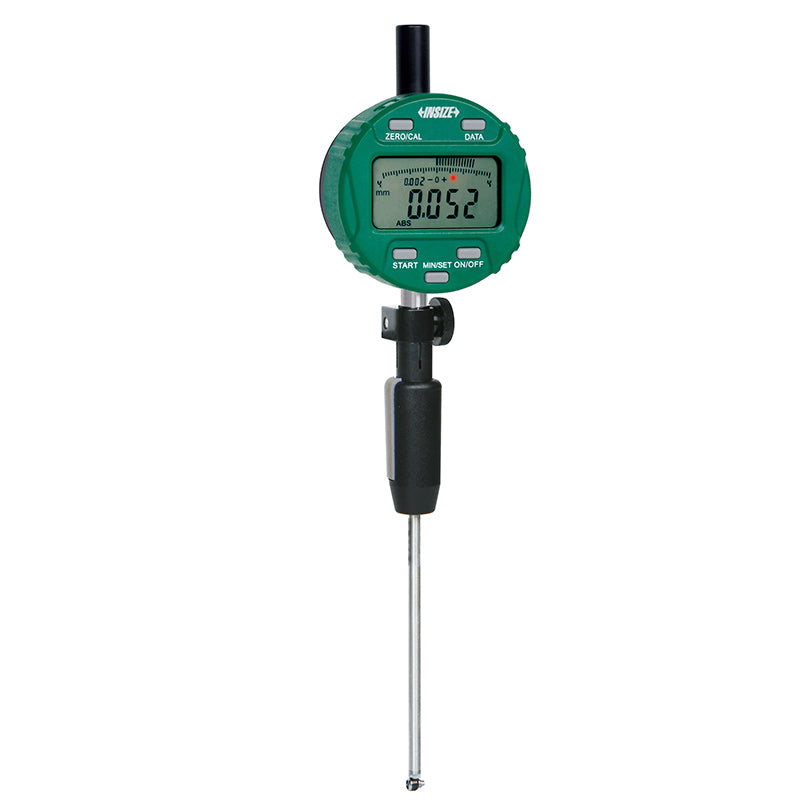

The Insize 2425 Bore Gauge series is designed to measure the diameter of small holes with a level of precision that standard bore gauges can't reach. Each gauge in the series features a carbide contact point and anvil for long-lasting wear resistance and consistent readings, and the series spans a wide selection of ranges from as small as 8mm up to roughly 20mm (with inch-equivalent models such as the 2425-E6, 2425-E8, 2425-E12, and 2425-E20) making it a practical choice for machine shops, tool and die makers, and quality control labs working with small bores, bushings, and precision-machined components. Each gauge is designed to work with a dial indicator or dial comparator to complete the readout, giving you the flexibility to pair the gauge head with the resolution your application demands.

Key Features

• Carbide contact point and anvil for durability and measurement consistency
• Designed specifically for small-diameter bore applications
• Available in multiple ranges to match a wide variety of small-hole sizes
• Compatible with 0.01mm/0.001mm or .001"/.0001"/.00005" graduation dial indicators
• Works with Insize setting rings for accurate calibration before use
• Compact design suited for tight-clearance measurement work

Specifications

Items Included

• Insize bore gauge head (small hole design) in the selected range
• Fitted storage/carrying case
• Instruction manual

Insize 2425 Bore Gauges For Small Holes Data Sheet
