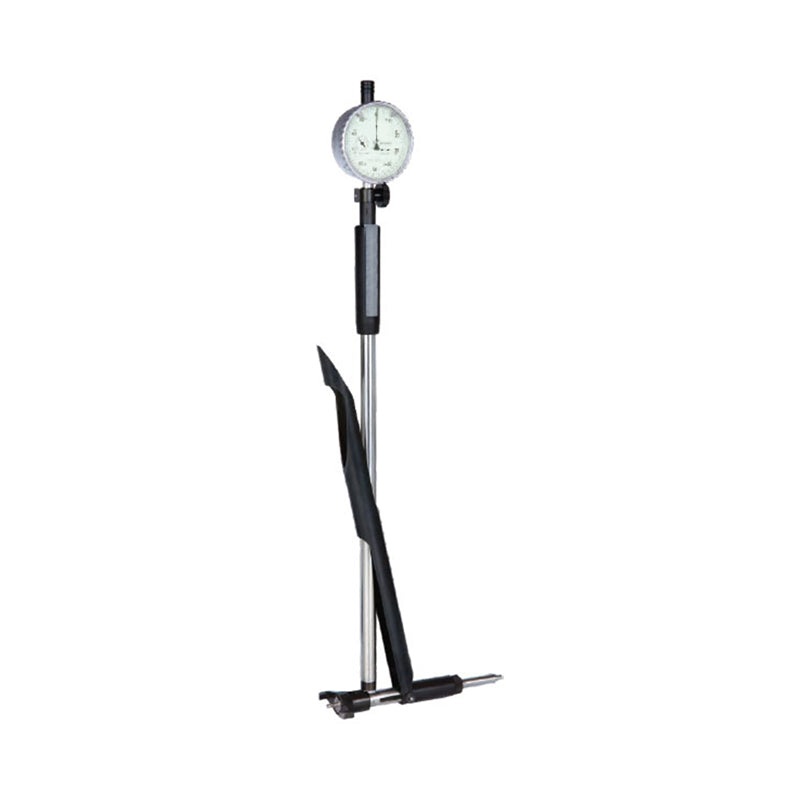

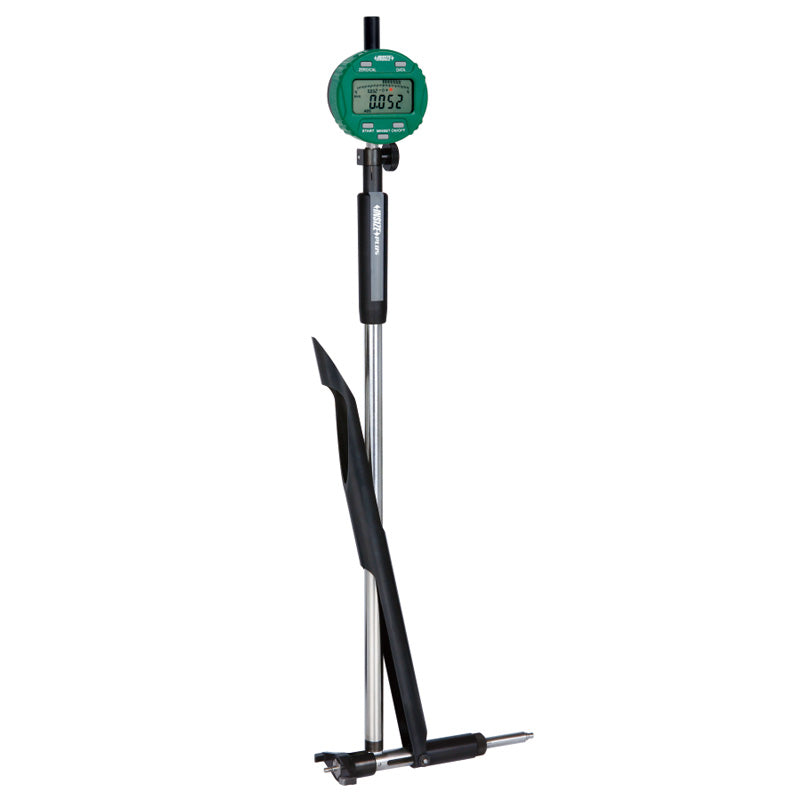

Insize 2433 Internal Groove Bore Gauges
The Insize 2433 Internal Groove Bore Gauge series is designed to measure the diameter of internal grooves (recessed channels machined into a bore wall) where a standard bore gauge contact point can't reach. Each gauge uses a retractable anvil that collapses to pass through the bore opening, then expands to make contact with the groove diameter, making it well suited for grooves with a width greater than 3mm. The series is available across a range of sizes, from 60-120mm up to 180-300mm (with inch-equivalent models such as the 2433-E120 and 2433-E180), making it a practical solution for machine shops and inspection labs working with retaining ring grooves, seal grooves, and other internal recesses. As with other Insize bore gauges, dial indicators and setting rings are sold separately, allowing you to build the readout configuration that fits your application.
Key Features
- Retractable anvil design allows the gauge to pass through the bore opening and expand to measure the groove
- Purpose-built for measuring internal groove diameters (groove width greater than 3mm)
- Available in multiple ranges to fit a variety of groove sizes
- Compatible with 0.01mm or 0.001mm graduation dial indicators
- Works with Insize setting rings for calibration before use
- Consistent accuracy across a wide measurement range
Specifications
| Specification |
Detail |
| Measurement Ranges Available |
2.4" - 4.7", 4.7" - 7.1", 7.1" - 8" |
| Minimum Groove Width |
Greater than 3mm |
| Typical Accuracy (without dial indicator) |
2µm; alternatively 1% of the deviation between workpiece size and setting ring |
| Typical Repeatability (without dial indicator) |
1µm |
| Anvil Requirement |
Anvil required (retractable design) |
| Compatible Dial Indicator Graduations |
0.01mm or 0.001mm |
| Compatible Setting Ring |
Insize setting ring (code 6312), sold separately |
| Application |
Diameter measurement of internal grooves |
Items Included
- Insize internal groove bore gauge body in the selected range
- Anvil
- Fitted storage/carrying case
- Instruction manual
Insize 2433 Internal Groove Bore Gauges Data Sheet
