Insize 2877 Digital Roller Thickness Gauges

Insize 2877 Digital Roller Thickness Gauges

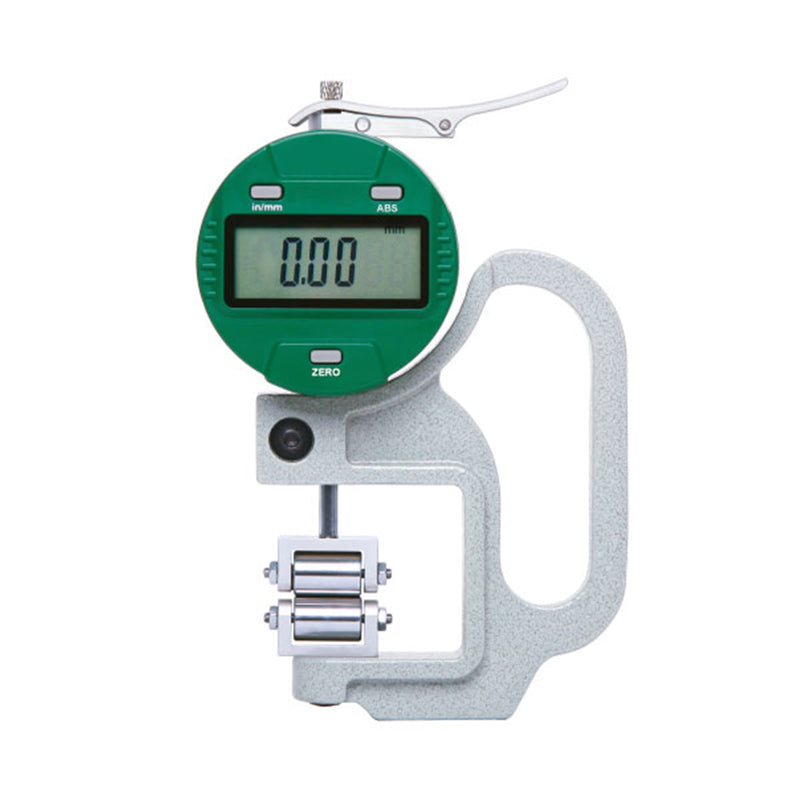

The Insize 2877 Digital Roller Thickness Gauge series is designed for fast, accurate thickness measurement of sheet metal, plastic, and other flat or coiled materials using a roller contact and spring-loaded spindle. The roller design allows the gauge to be rolled smoothly along a workpiece surface, making it easy to take multiple thickness readings quickly without repositioning a standard flat contact point. Each gauge features a large digital display with inch/mm switching, zero-setting, data preset, and both absolute and incremental measurement modes, and preset data is retained in memory even after the unit is powered off. Available in ranges from 0-4.5mm up to 0-10mm, with resolution options as fine as .00005"/0.001mm, the 2877 series is well suited for manufacturing, quality control, and material testing applications where speed and repeatability matter.

Key Features

• Roller contact with spring-loaded spindle allows fast, continuous thickness measurement across a surface
• Convenient grip handle and thumb trigger for comfortable one-handed operation
• Large digital display with inch/mm switching
• Zero-setting, data preset, and absolute/incremental measurement modes
• Preset data retained in memory after restart
• Data output capability for connection to a data output cable (sold separately)

Specifications

Items Included

• Insize digital roller thickness gauge in the selected range
• CR2032 battery
• Fitted storage case
• Instruction manual

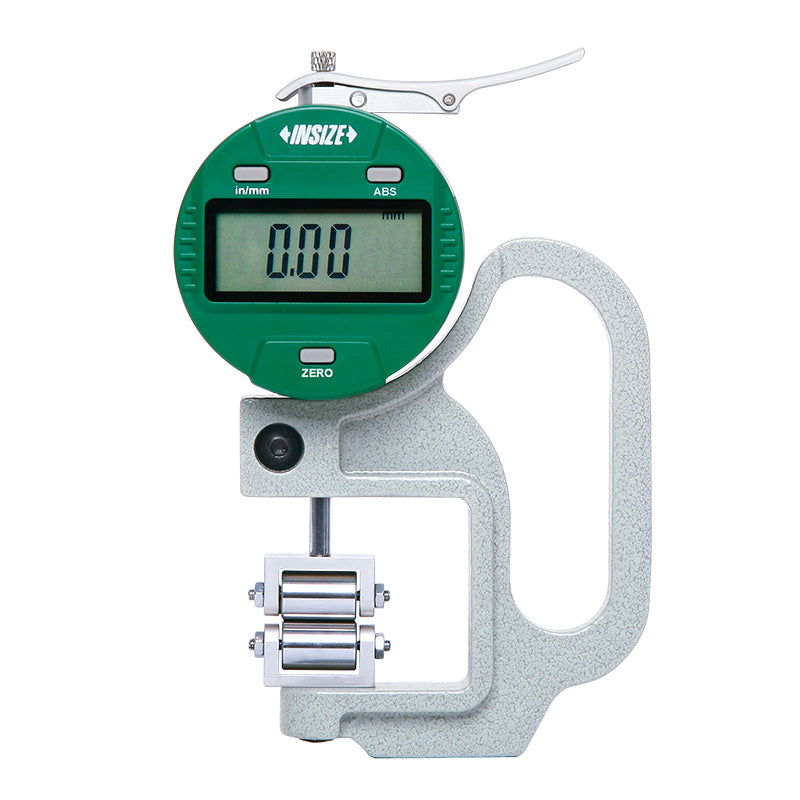

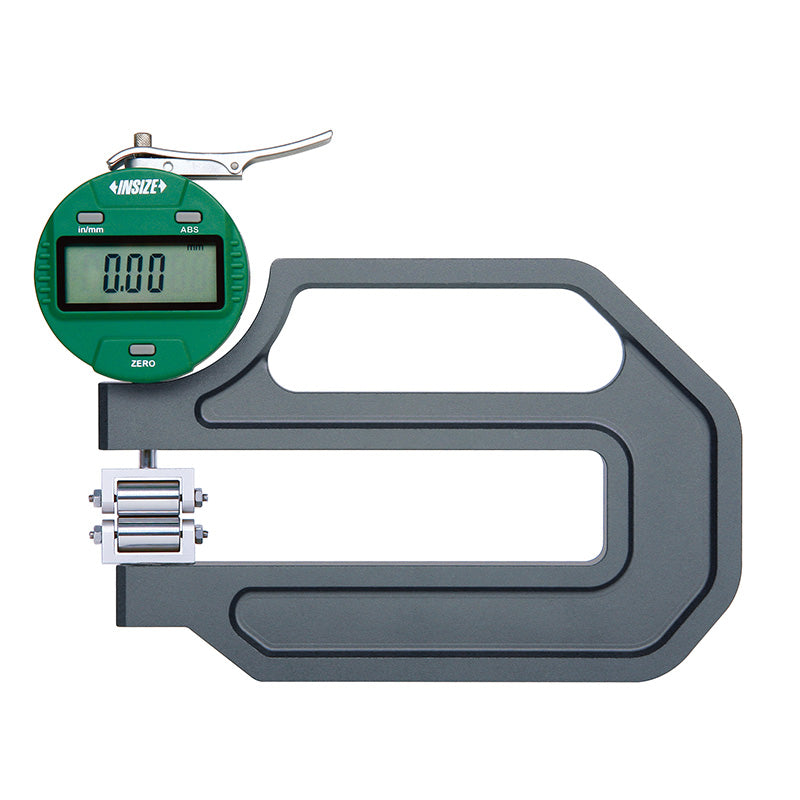

Insize 2877 Digital Roller Thickness Gauges Data Sheet
