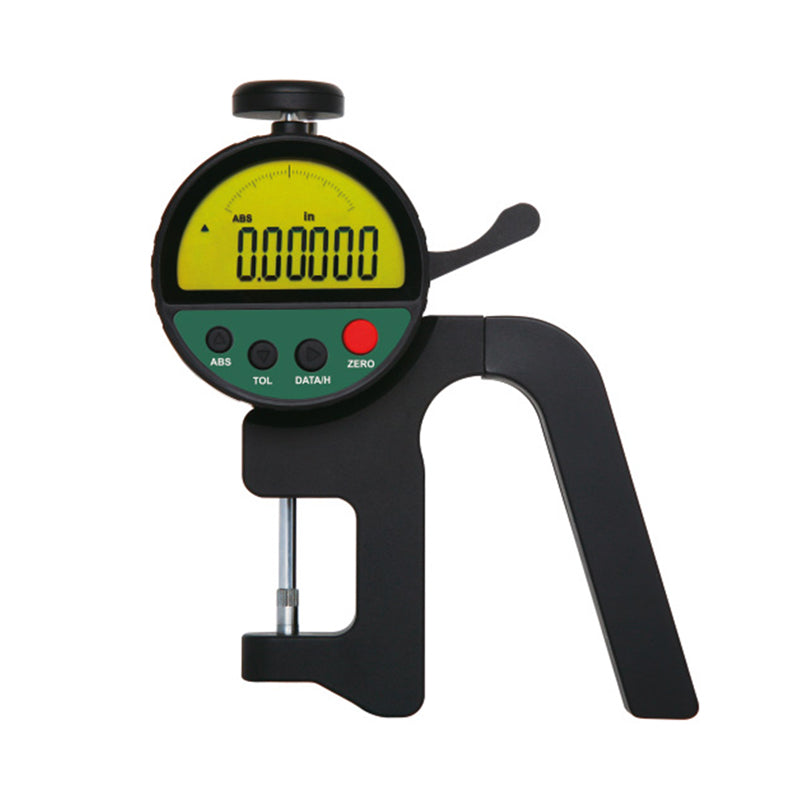

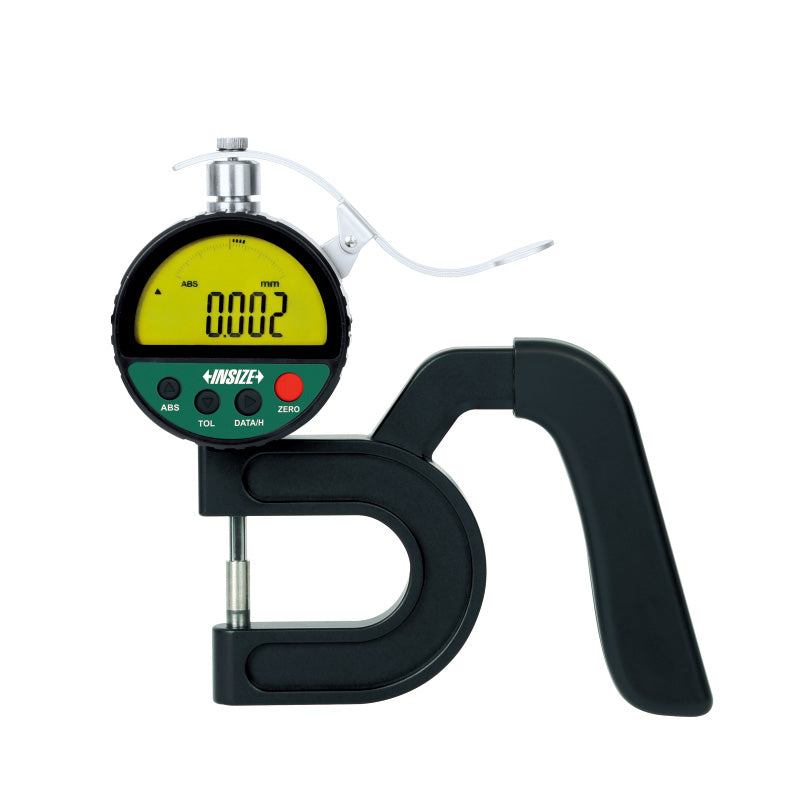

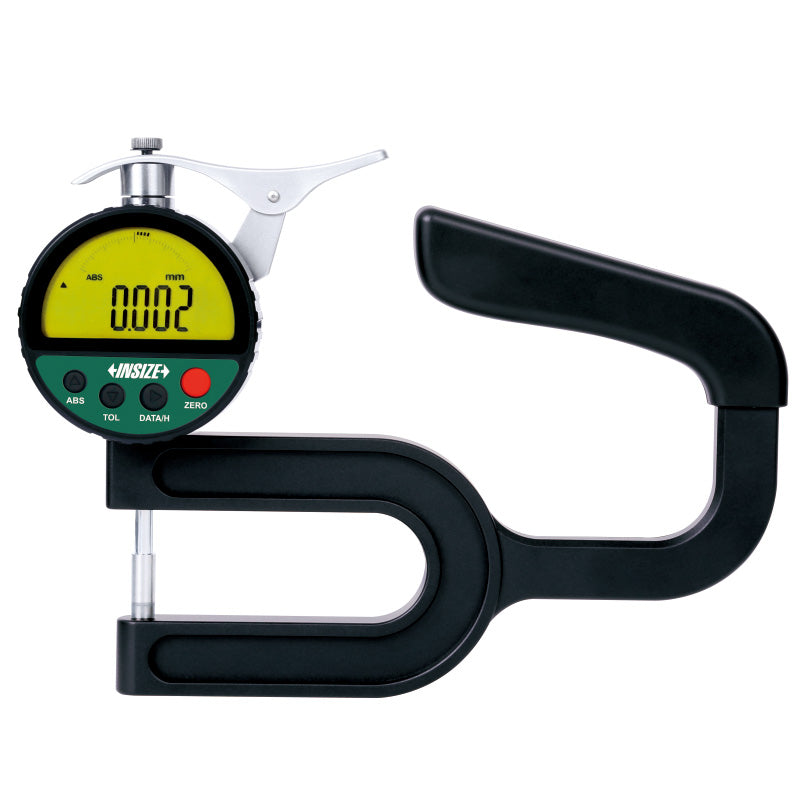

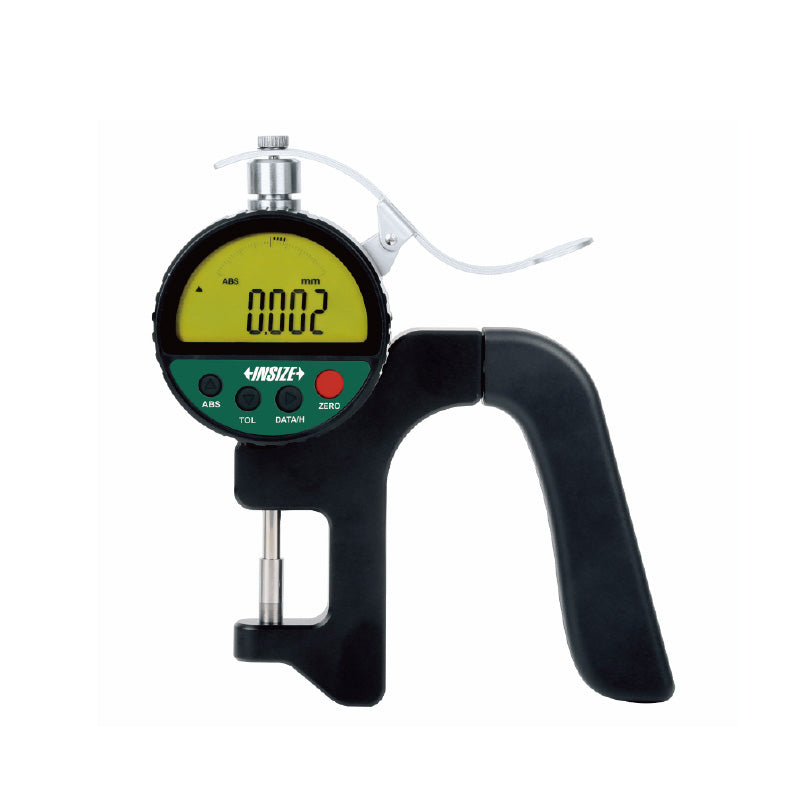

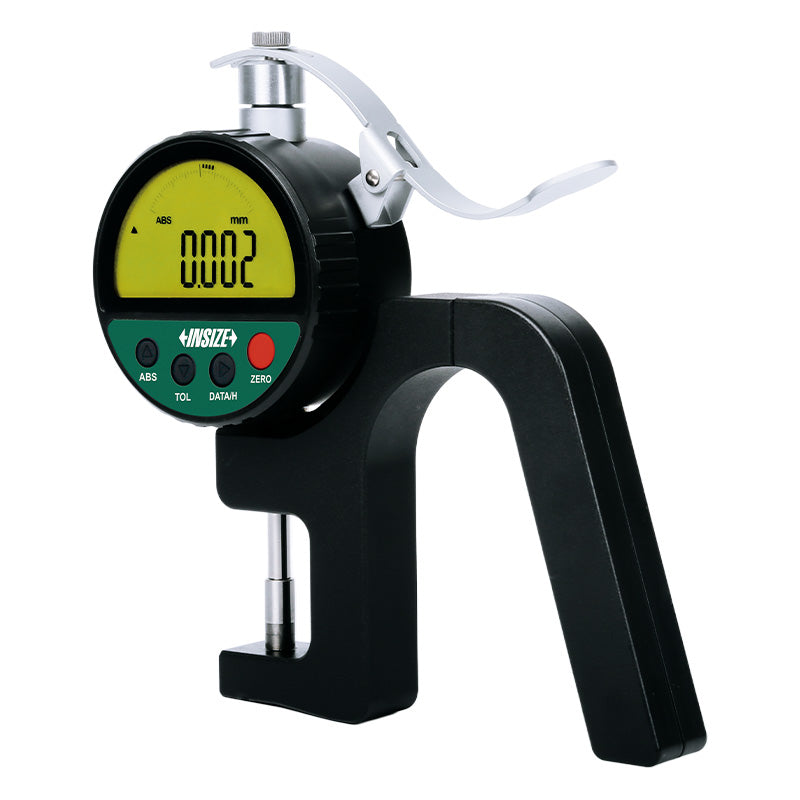

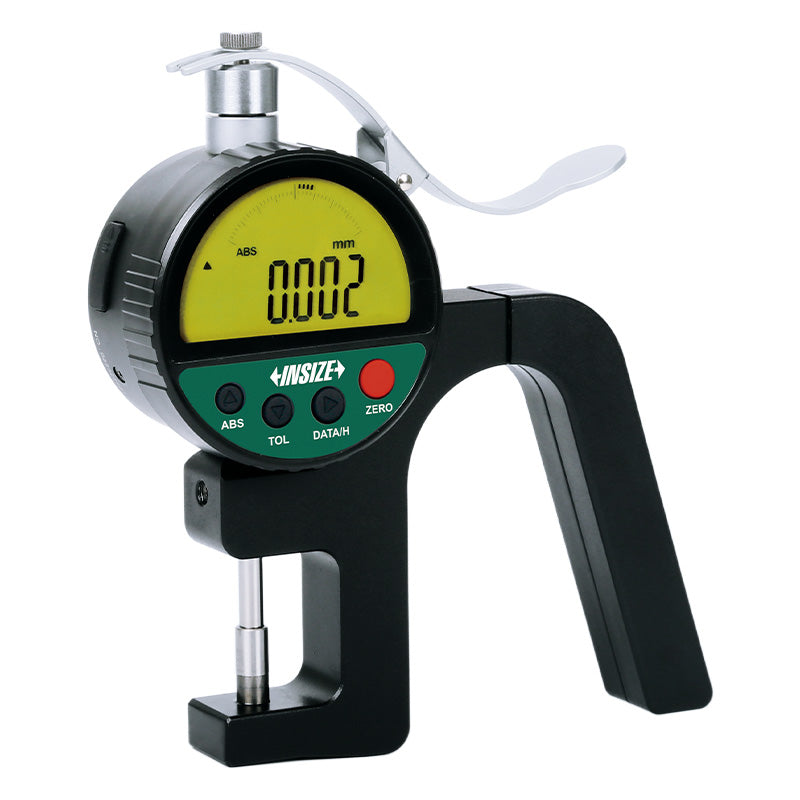

Insize 2879 High Precision Digital Thickness Gauges
The Insize 2879 High Precision Digital Thickness Gauge series is engineered for demanding thickness measurement applications where standard resolution isn't precise enough. Covering a range of 0-10mm (0-.4"), each gauge features an absolute encoder that retains its original data after power off, so you never lose your position when the unit shuts down. Ceramic spindle tip and anvil options resist wear over repeated use, and models like the 2879-30 and 2879-60 add analog display alongside the digital readout for quick visual reference. With resolution as fine as .00005"/0.001mm and accuracy down to ±0.002mm depending on the model, the 2879 series is well suited for quality control labs, calibration departments, and manufacturing environments where consistent, high-precision thickness data is essential.
Key Features
Absolute encoder retains original position data even after the unit powers off
Resolution as fine as .00005"/0.001mm for high-precision applications
Ceramic spindle tip and anvil available for wear resistance and measurement consistency
Dual digital and analog display on select models for fast visual reference
Full button functions: on/off, zero, tolerance, absolute/incremental measurement, max/min/TIR, data preset, mm/inch, data output, data hold
Data output capability with select models supplied with a data output cable
Specifications
Specification
Detail
Measurement Range
0-10mm (0-.4")
Resolution
.0005"/0.01mm or .00005"/0.001mm depending on model
Accuracy
±0.0001" to ±0.02mm depending on model
Repeatability
.00005" to 0.001mm depending on model
Measuring Force
.11-.22 lbf (0.5-1 N) on select models
Power
CR2032 battery or rechargeable battery (up to 12 hrs continuous use), automatic power off (adjustable)
Display
Digital, with analog display on select models
Data Output
Yes; some models supplied with data output cable (keyboard format)
Items Included
Insize high precision digital thickness gauge in the selected model
Battery (CR2032 or rechargeable, depending on model)
Fitted storage case
Instruction manual
Data output cable (included with select models; optional accessory on others)
