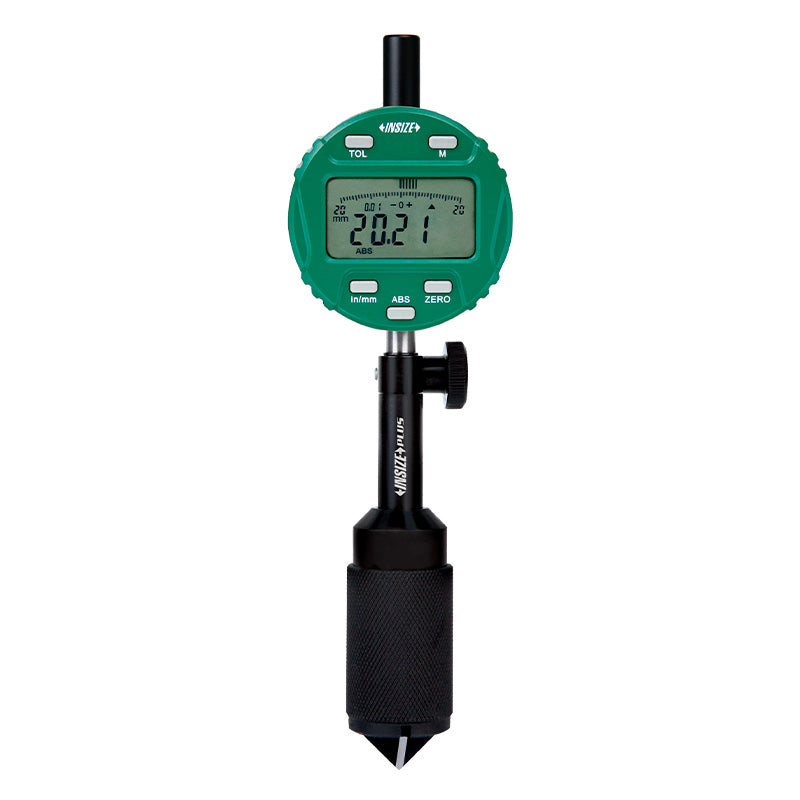

Insize 2942 Digital Internal Chamfer Gauges Front View

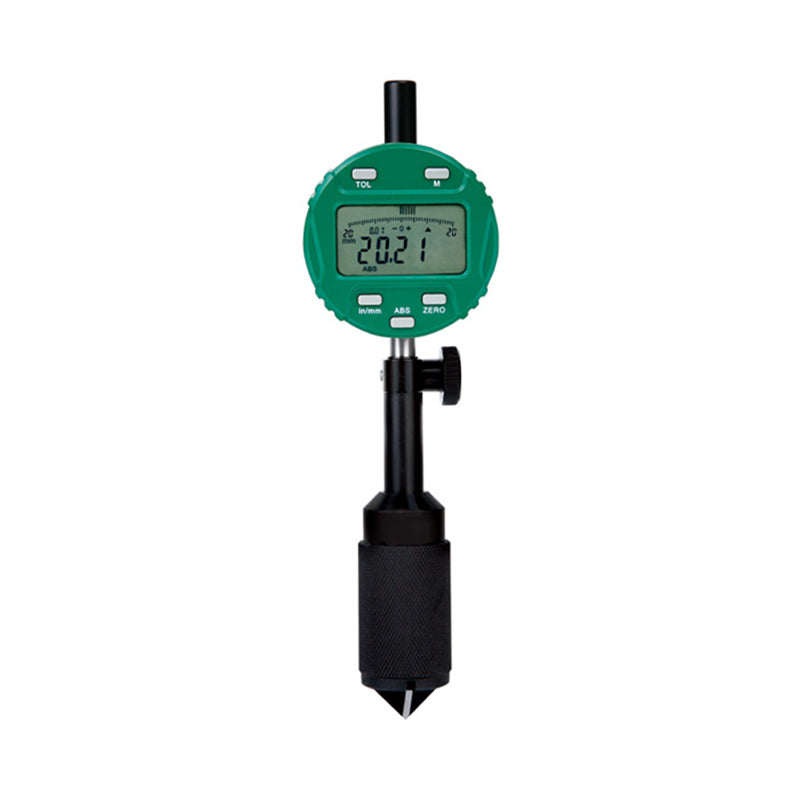

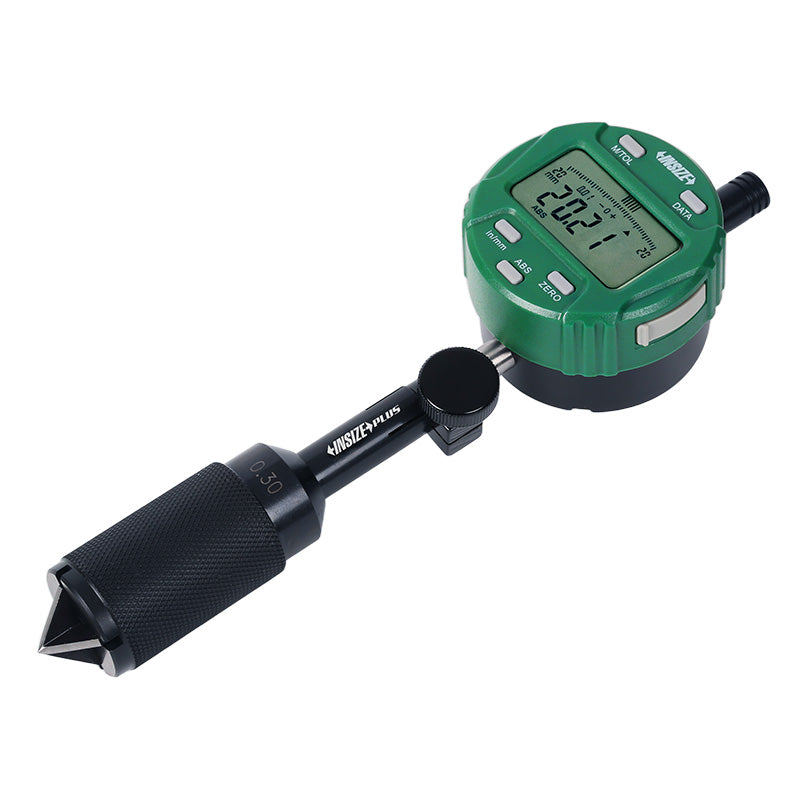

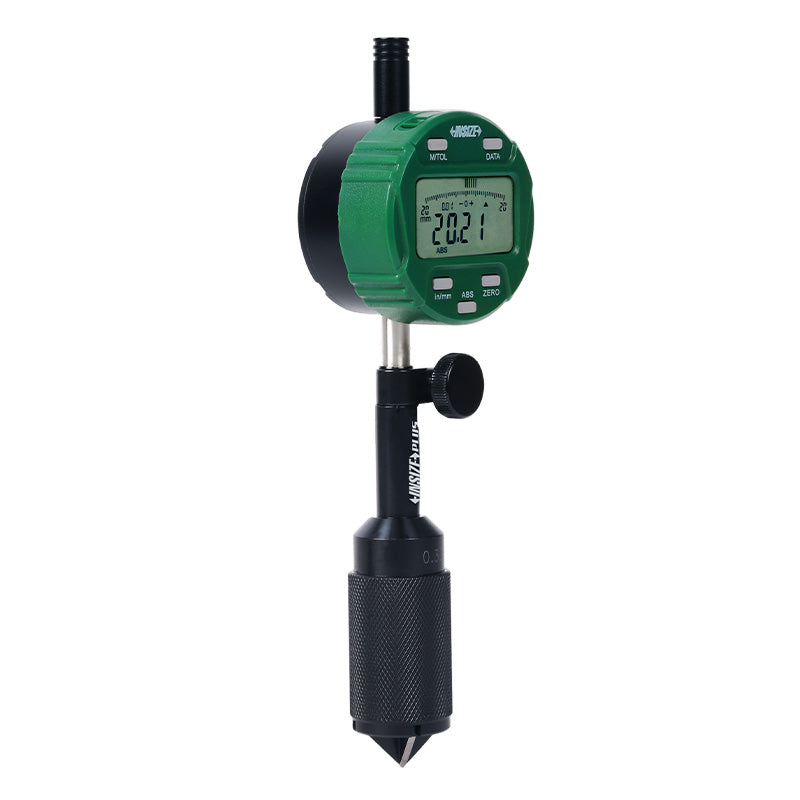

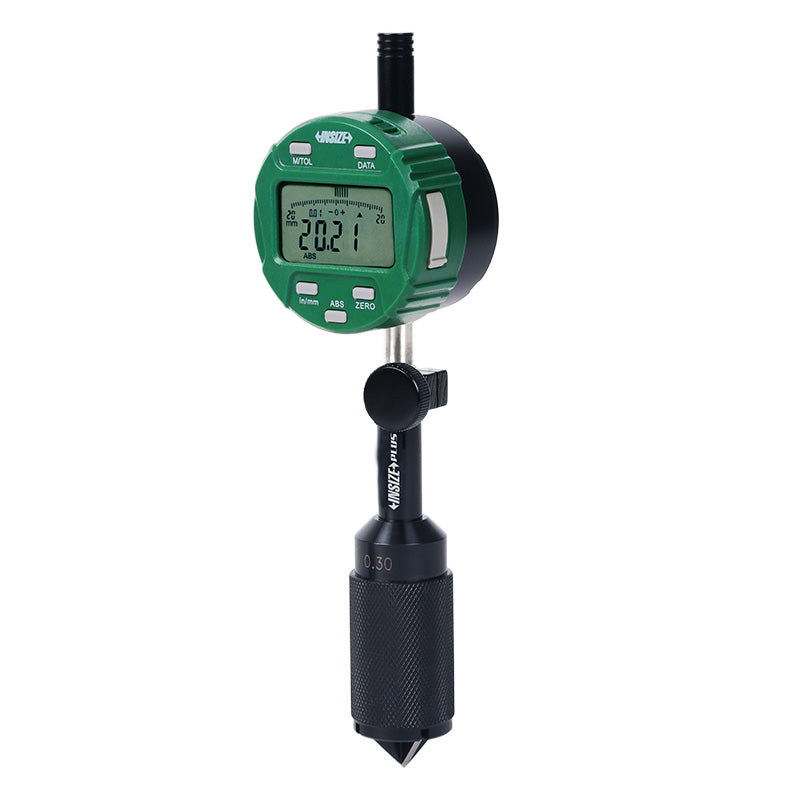

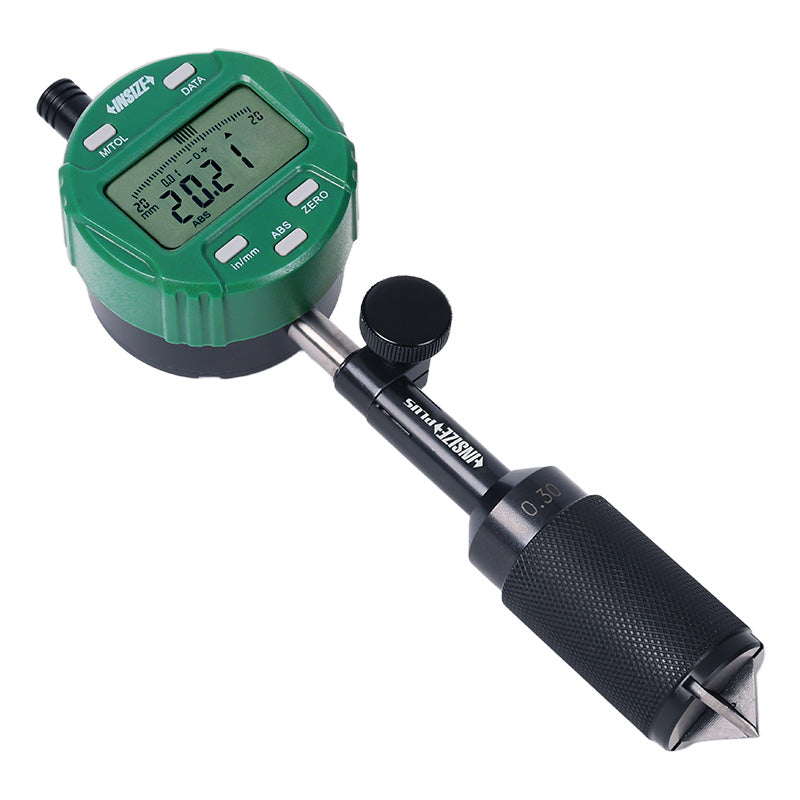

Insize 2942 Digital Internal Chamfer Gauges

by Insize
Have a question?

Call/Text Gustavo before you buy.

I personally review every order and I'm happy to answer questions about compatibility, specs, or lead times. Don't guess - let's get it right the first time.

Call / Text 617-398-7852 Email support@precisionengineeringsupply.com
Gustavo
Founder, Precision Engineering Supply
Available Mon – Fri
Authorized Dealer
100% Authentic Products
Fast Shipping
Most Products Ship Same Day
Easy Returns
30-Day Return Policy (Excludes Made To Order Items)
Secure Checkout
SSL Encrypted Payment
$2,352.23
  • Measures end diameter of chamfer or taper holes
  • Multiple diameter ranges
  • Select models include a setting ring
  • .0005"/0.01mm resolution
  • Available in 0-90° and 90-127°
  • Optional data output cable
Customers rate us 4.5/5 based on 49 reviews.

Insize 2942 Digital Internal Chamfer Gauges

$2,352.23

Description

Insize 2942 Digital Internal Chamfer Gauges

The Insize 2942 Digital Internal Chamfer Gauge series is built to measure the end diameter of chamfer or taper holes, a measurement that standard bore gauges aren't designed to capture. Each gauge is available across two angle ranges (0-90° and 90-127°) and multiple diameter ranges, from .020"-.791" up to .787"-1.575" (models 2942-20, 2942-40, 2942-203, and 2942-403), making the series a good fit for machine shops and inspection labs checking countersinks, tapered bore ends, and similar chamfered features. Each gauge offers .0005"/0.01mm resolution and comes supplied with a setting ring on select models, giving you a ready-to-use solution for verifying chamfer diameters against print tolerances.

 



Key Features

  • Measures end diameter of chamfer or taper holes with digital readout
  • Available in 0-90° and 90-127° applicable angle ranges
  • Multiple diameter ranges to fit a variety of chamfer and taper hole sizes
  • .0005"/0.01mm resolution for precise, easy-to-read measurements
  • Select models supplied with a setting ring for calibration right out of the box
  • Data output capability with optional data output cable for connection to a PC or data collection system



Specifications

Specification Detail
Measurement Ranges Available .020"-.791" (20-40mm), .787"-1.575"
Applicable Angle Ranges 0-90°, 90-127°
Resolution .0005"/0.01mm
Accuracy ±.0008" (0-90° models); ±.0012" (90-127° models)
Diameter (d) 1.114" (smaller range models); 1.969" (larger range models)
Included Setting Ring 5mm setting ring supplied with select models
Data Output Optional data output cable (code 7315-, 7302-, or 7305- series)



Items Included

  • Insize digital internal chamfer gauge in the selected range and angle
  • Setting ring (included with select models)
  • Fitted storage case
  • Instruction manual



INSIZE ISHW-L20B Webster Hardness Tester ManualInsize 2942 Digital Internal Chamfer Gauges Data Sheet
