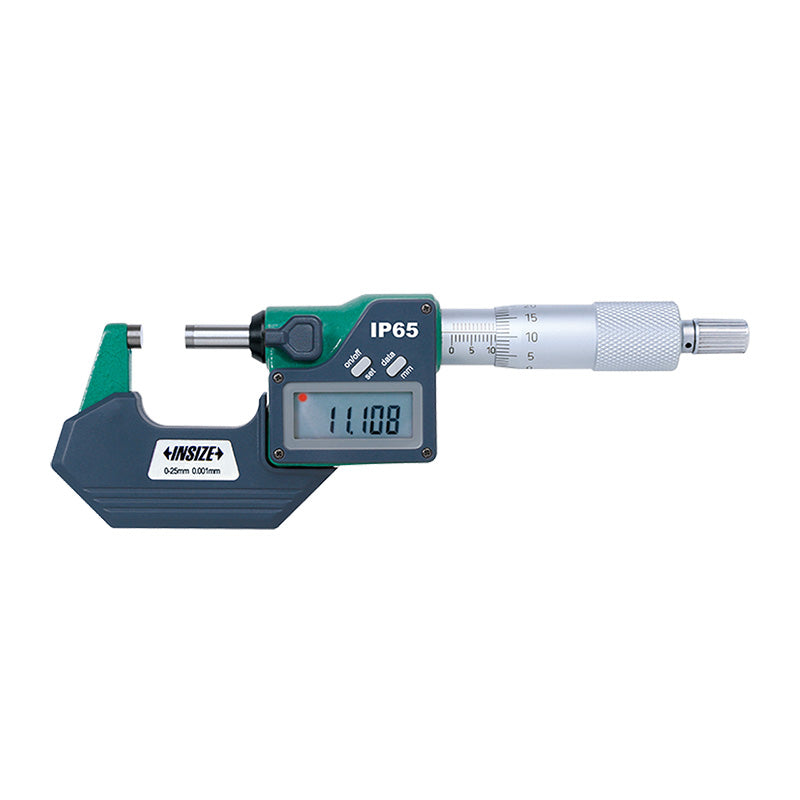

Insize 3101 Waterproof Digital Outside Micrometers (With Data Output)
The Insize 3101 Waterproof Digital Outside Micrometer series is built for accurate external measurement in demanding shop environments where dust, coolant, and moisture are a daily concern. Rated IP65 for dust and water resistance, each micrometer in the series features carbide measuring faces for long-term durability, a ratchet stop for consistent measuring pressure, and both absolute and incremental measurement modes. With data output built in, the 3101 series connects easily to data collection systems for SPC and quality control work. Available across a wide range of sizes from 0-25mm (0-1") up to 275-300mm (11-12") and supplied with setting standards on all but the smallest range, this series is a dependable choice for machine shops, inspection labs, and manufacturing environments that need reliable, repeatable outside diameter measurements.
Key Features
- IP65 dust/waterproof rating for reliable performance in wet or dirty shop conditions
- Carbide measuring faces for long-term durability and measurement consistency
- Ratchet stop delivers consistent measuring pressure on every use
- Absolute (ABS) and incremental (INC) measurement modes
- Data output function for connection to SPC and data collection systems
- Supplied with spherical anvil and setting standards (except 0-25mm/0-1" range)
Specifications
| Specification |
Detail |
| Measurement Ranges Available |
0-25mm (0-1") through 275-300mm (11-12") |
| Resolution |
.0005"/0.01mm or .00005"/0.001mm depending on model |
| Accuracy |
±2µm to ±3µm depending on range (metric models); ±.00008"/.002mm on select models |
| Protection Rating |
IP65 (dust/waterproof) |
| Measuring Face Material |
Carbide |
| Button Functions |
On/off, set, mm/inch, ABS/INC, data output |
| Battery |
LR44 or SR44, automatic power off |
| Data Output |
Yes, USB or SPC cable compatible (cable sold separately) |
Items Included
- Insize 3101 waterproof digital outside micrometer in the selected range
- Spherical anvil
- Setting standard (included on all ranges except 0-25mm/0-1")
- LR44 or SR44 battery

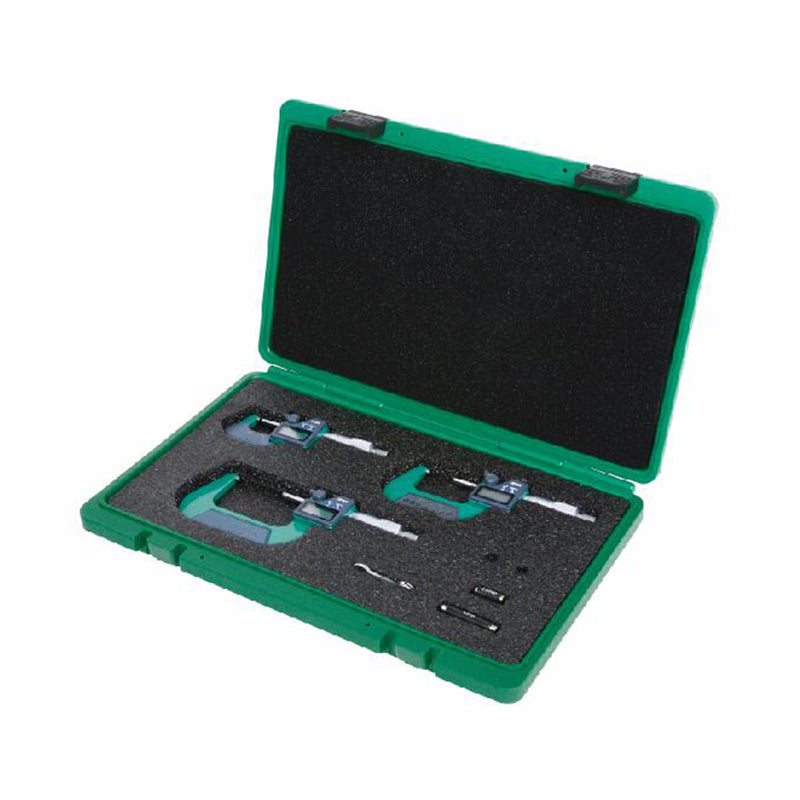

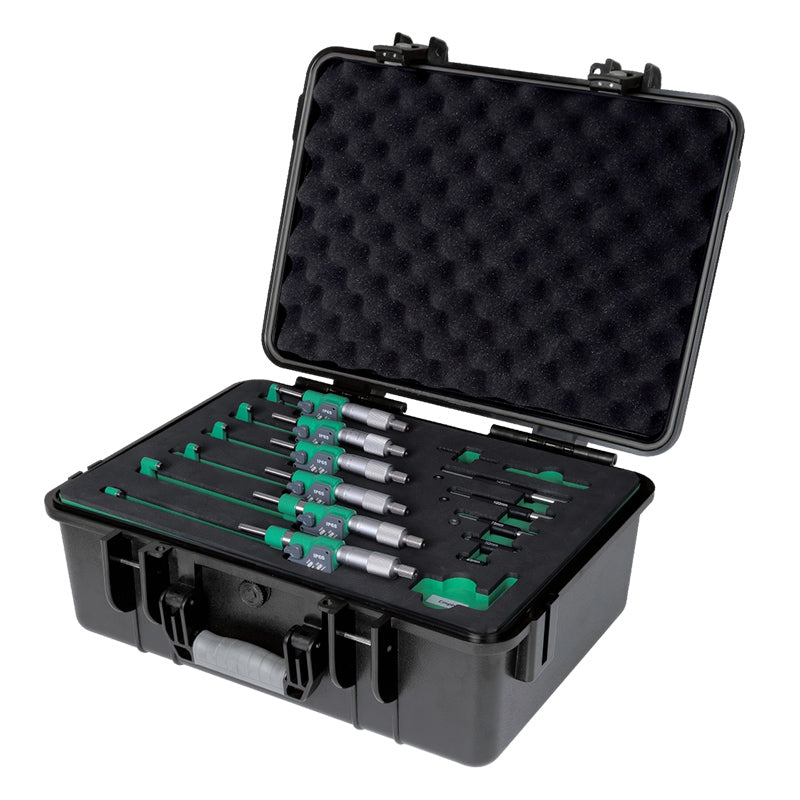

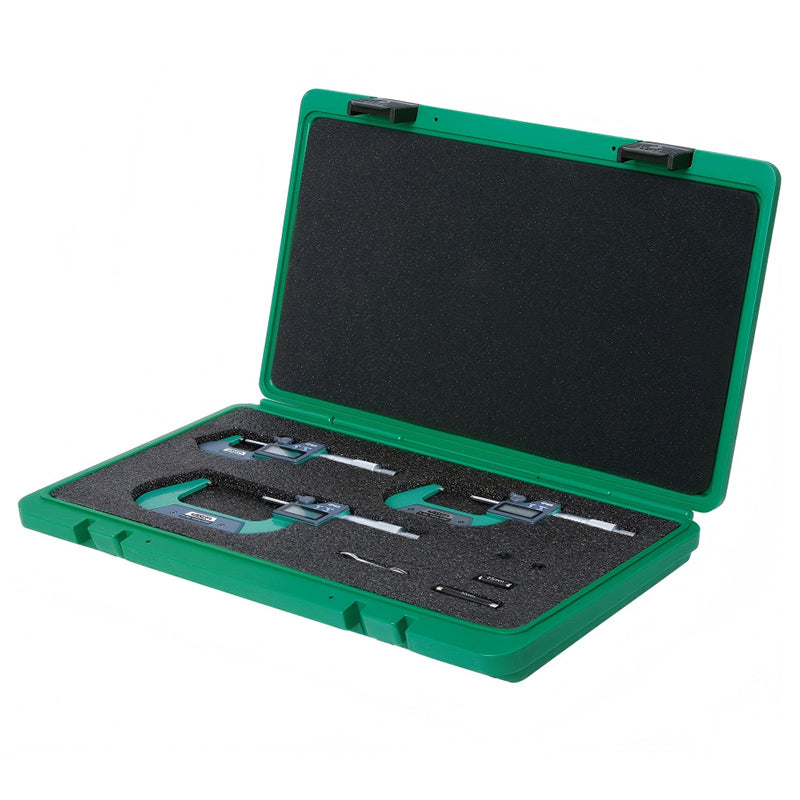

- Fitted storage case
- Instruction manual
Insize 3101 Waterproof Digital Outside Micrometers Data Sheet
