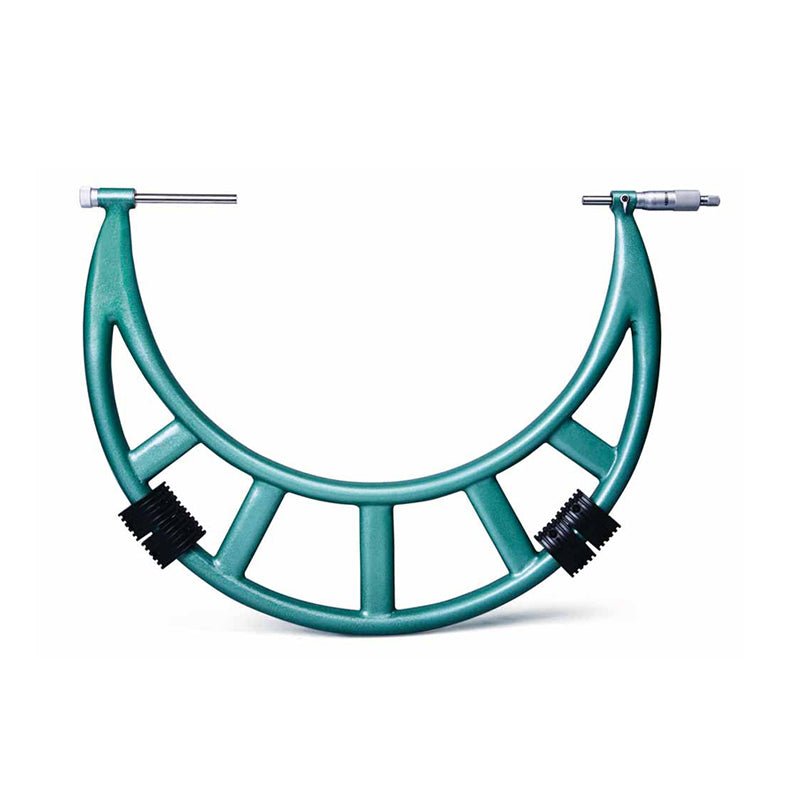

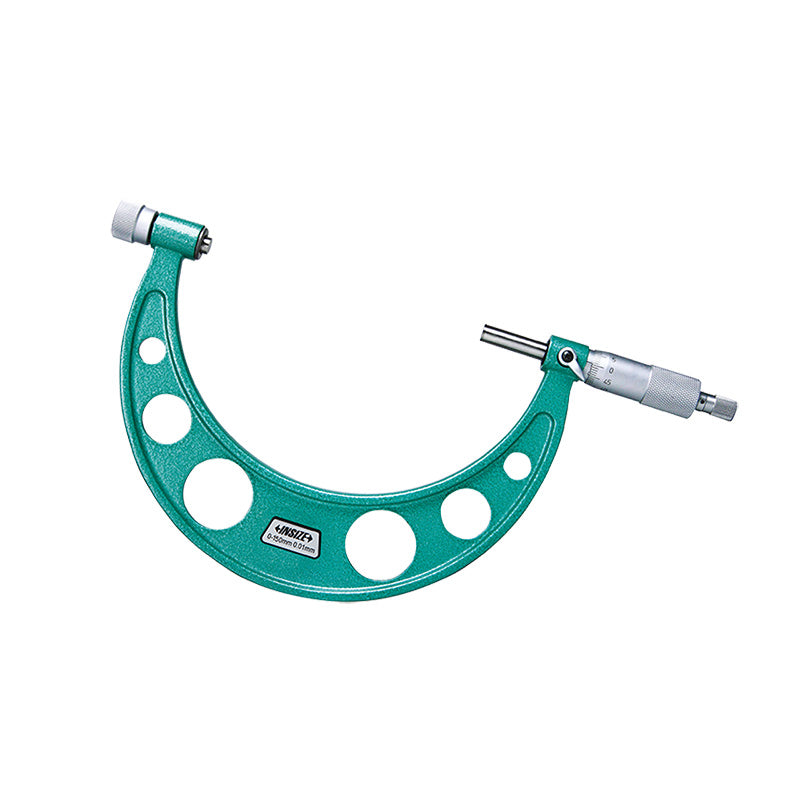

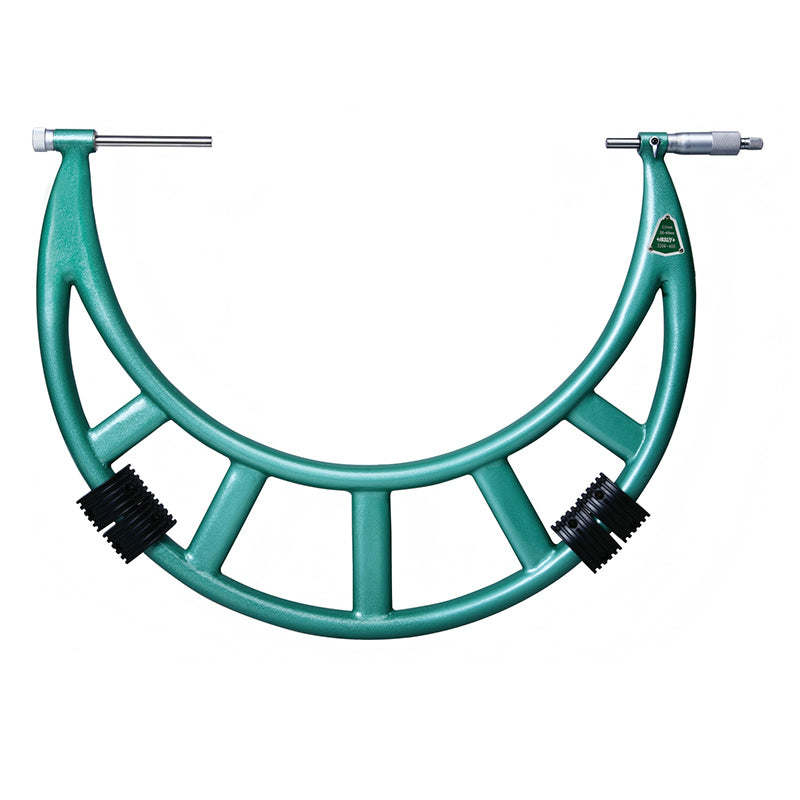

Insize 3206 Outside Micrometers With Interchangeable Anvils
The Insize 3206 Outside Micrometer with Interchangeable Anvils is designed to measure external diameters across a wide range using a single micrometer frame paired with a set of swappable anvils and setting standards. Rather than needing a separate micrometer for each 1" or 25mm increment, the 3206 series lets you switch anvils to cover ranges as broad as 0"-6", 6"-12", or even 28"-32" with one tool, saving on both cost and storage space. Each unit features carbide measuring faces for long-lasting durability and a ratchet stop for consistent measuring pressure, and is supplied complete with anvils, setting standards, and a fitted storage case. This makes the 3206 series a practical choice for machine shops and inspection labs that need to measure a variety of diameters without investing in a full set of individual micrometers.
Key Features
- Interchangeable anvils allow one micrometer frame to cover a wide diameter range
- Carbide measuring faces for long-lasting durability and consistent accuracy
- Ratchet stop delivers consistent measuring pressure on every reading
- Supplied with multiple anvils and setting standards matched to the range
- Available in ranges from 0"-6" up to 28"-32" (and beyond)
- Furnished in a fitted case for organized storage of all anvils and standards
Specifications
| Specification |
Detail |
| Measurement Ranges Available |
0"-2", 0"-6", 6"-12", 12"-16", 16"-20", 28"-32", and other ranges (0-100mm metric models also available) |
| Graduation |
.0001" (0-6" and 0-2" models); .001" (6" and larger models); 0.01mm (metric models) |
| Accuracy |
±.00016" on smaller ranges, increasing on larger ranges depending on model |
| Measuring Face Material |
Carbide |
| Stop Type |
Ratchet stop |
| Anvils Included |
Multiple, sized to the selected range (e.g., 6 anvils and 6 standards for the 6"-12" model) |
| Setting Standard |
Included |
Items Included
- Insize 3206 outside micrometer frame in the selected range
- Interchangeable anvils sized to the selected range
- Setting standards
- Fitted storage case
- Instruction manual
Insize 3206 Outside Micrometers With Interchangeable Anvils Data Sheet
