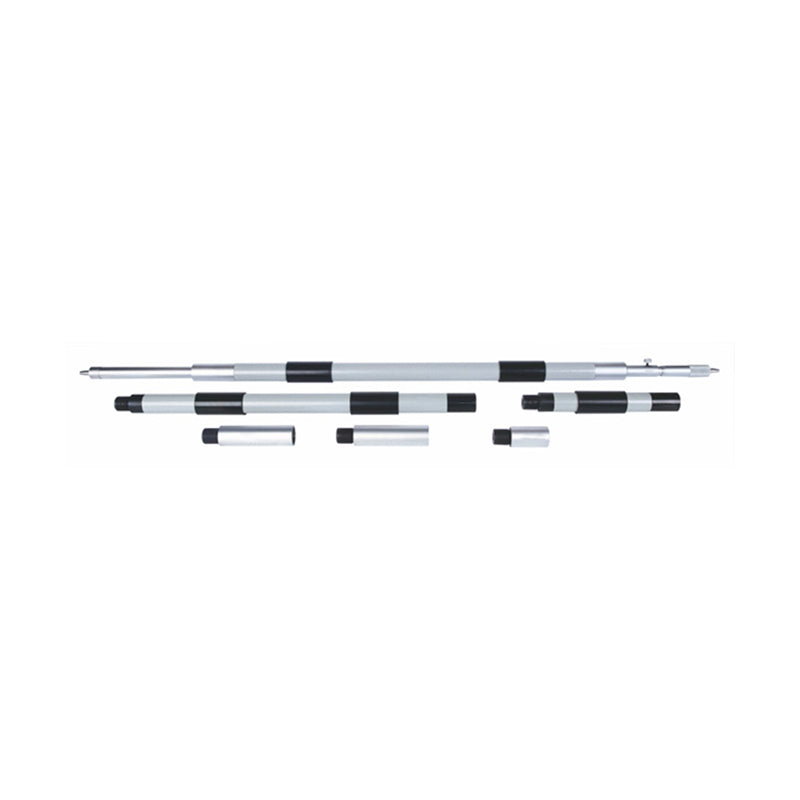

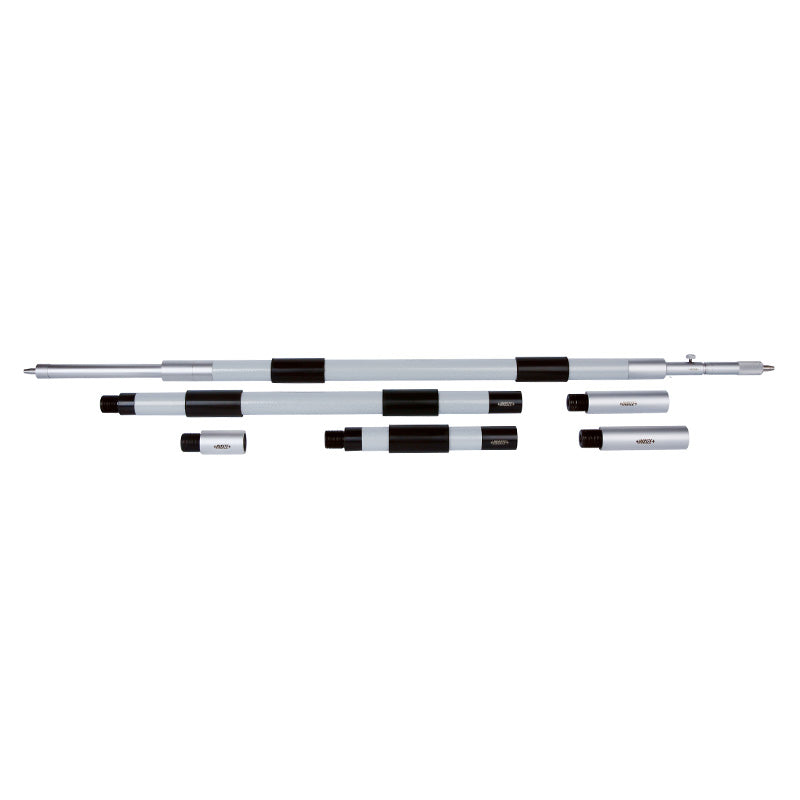

Insize 3224 Tubular Inside Micrometers
The Insize 3224 Tubular Inside Micrometer series is built for measuring exceptionally large internal diameters, using a 2" travel micrometer head paired with a full set of extension rods. Covering ranges from 40"-80" up to 40"-200" (and metric equivalents from 1000mm up to 4000mm), the series is designed for jobs where standard bore gauges and smaller tubular micrometers simply don't have the reach. Each unit features carbide measuring faces for long-lasting durability and comes supplied with setting standards, making it a dependable option for large-scale manufacturing, heavy equipment fabrication, and industrial inspection work involving oversized cylinders, tanks, and bored components. As the range increases, additional extension rods are supplied to reach the full measuring capacity of each model.
Key Features
- 2" travel micrometer head paired with extension rods for large-diameter measurement
- Carbide measuring faces for long-lasting durability and consistent accuracy
- Supplied with setting standards for accurate calibration
- Available in ranges from 40"-80" up to 40"-200" (1000-4000mm metric equivalents)
- Additional extension rods supplied as range increases to reach full measuring capacity
- Furnished in a fitted storage case to keep rods and standards organized
Specifications
| Specification |
Detail |
| Measurement Ranges Available |
40"-80", 40"-120", 40"-160", 40"-200" (inch); 1000-4000mm (metric) |
| Graduation |
.001" (inch models); 0.01mm (metric models) |
| Accuracy |
[.00005(3+n+L/2)]", n = number of rods, L = maximum measuring length (inch); (7+n+L/50)µm for metric models |
| Micrometer Head Travel |
2" (inch models); 50mm (metric models) |
| Extension Rods Included |
Varies by range (e.g., 2", 4"x2, 8", 20" for the 40"-80" model; additional rods added for larger ranges) |
| Measuring Face Material |
Carbide |
| Setting Standard |
Included |
Items Included
- Insize 3224 tubular inside micrometer head in the selected range
- Extension rods (quantity varies by range)
- Setting standards
- Fitted storage case
- Instruction manual
Insize 3224 Tubular Inside Micrometers Data Sheet
