Insize 3227 Two Points/Three Points Internal Micrometers
$1,572.00
Description
Shipping
Why Buy From Us
Pricing
Returns
Financing
Description
Insize 3227 Two Points/Three Points Internal Micrometers

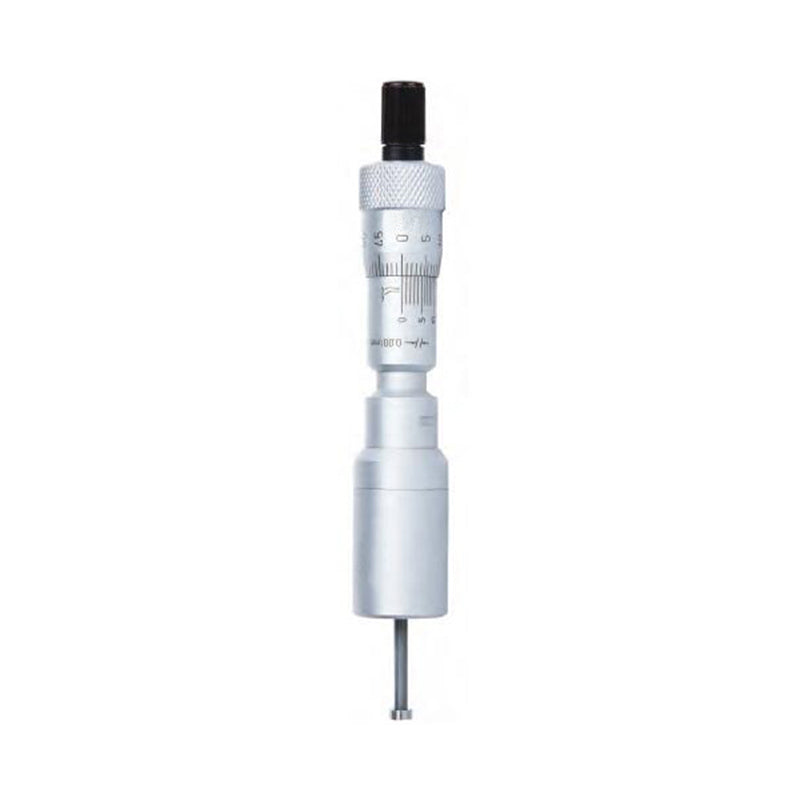

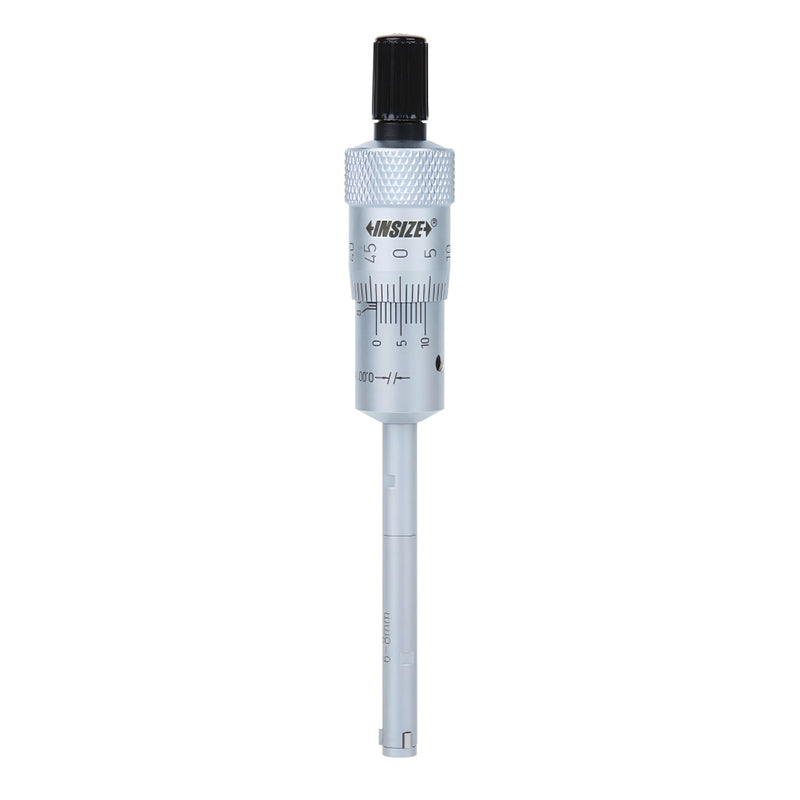

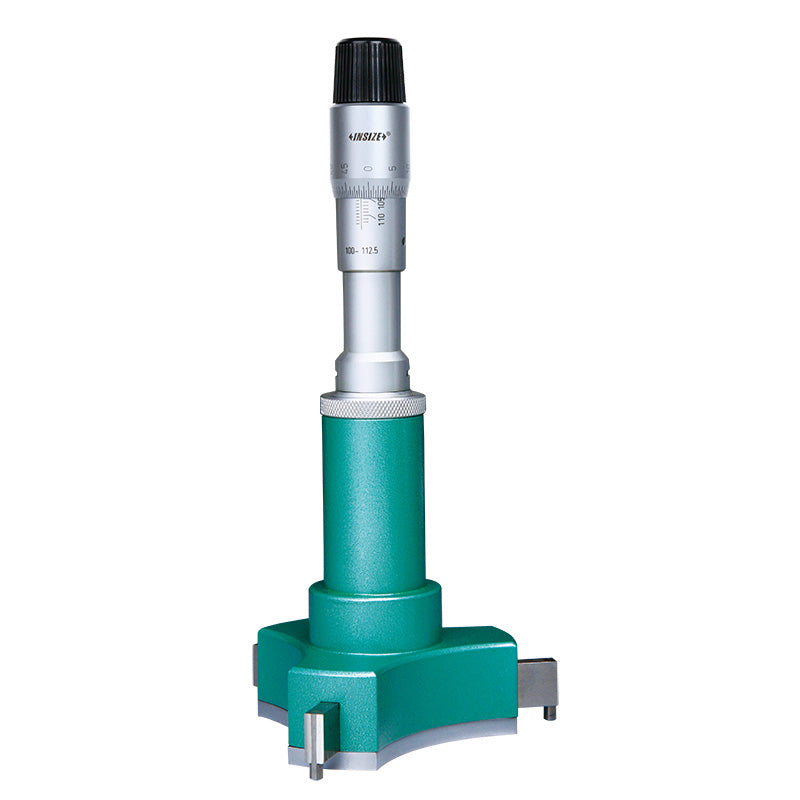

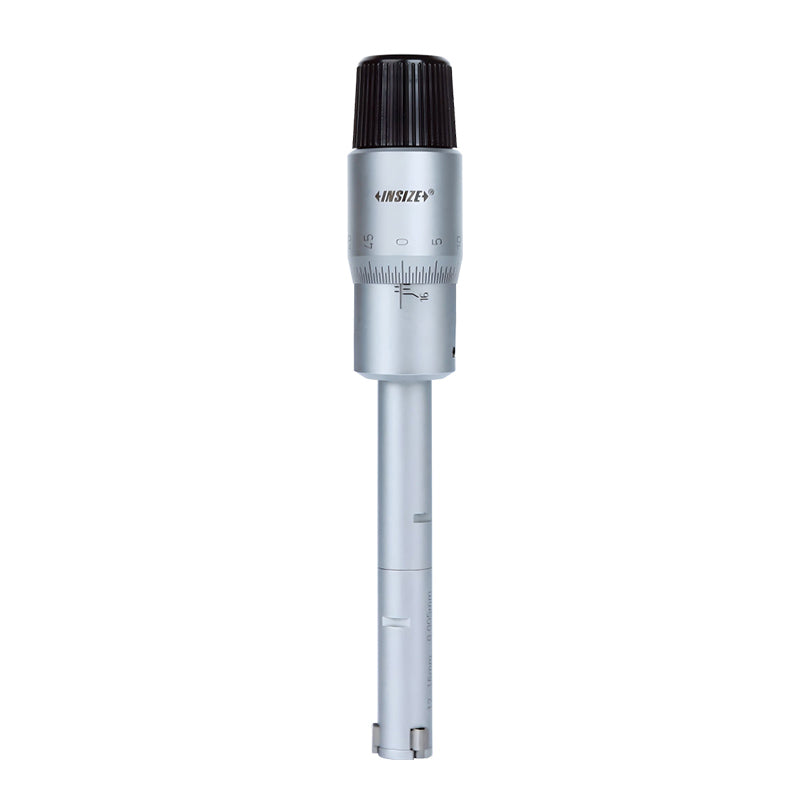

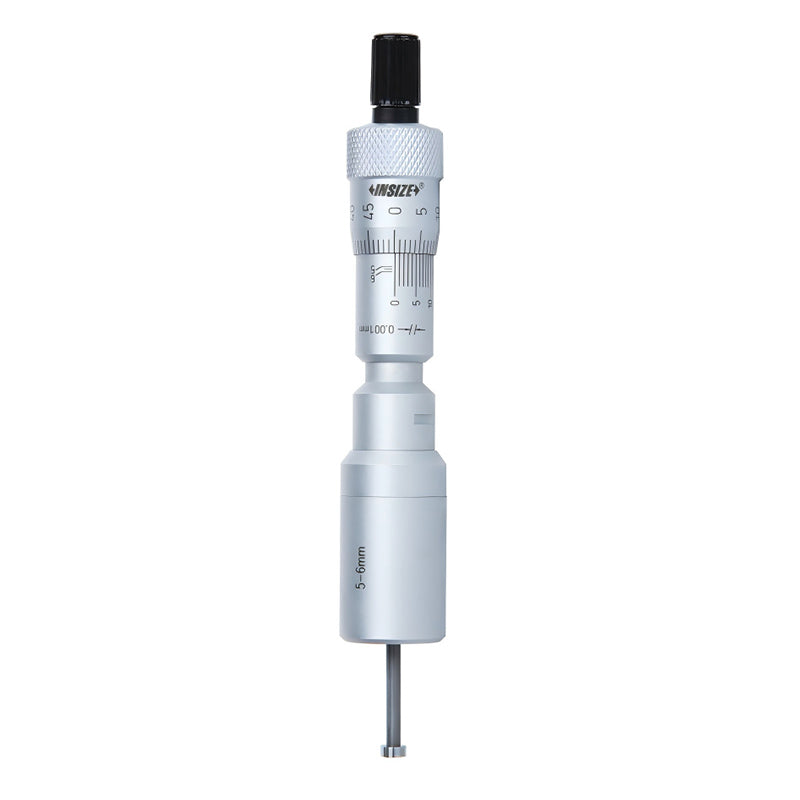

The Insize 3227 Two Points/Three Points Internal Micrometer series is a traditional, non-digital mechanical micrometer built for accurate internal bore measurement. Smaller ranges use two-point contact, while mid and larger ranges use three-point contact for even, consistent readings around the bore. Meeting the DIN 863-4 standard, each micrometer features a ratchet stop for consistent measuring pressure and is supplied complete with a setting ring, and larger ranges also include an extension rod. Covering diameters from as small as .08" (2mm) up to 12" (300mm), and available as individual gauges or as sets with multiple interchangeable measuring heads, the 3227 series is a dependable option for machine shops, tool rooms, and inspection labs that need reliable internal diameter measurement without the added complexity of a digital readout.
Key Features
Two-point or three-point contact design depending on range for accurate bore measurement
Meets DIN 863-4 standard for internal micrometers
Ratchet stop delivers consistent measuring pressure on every use
Supplied with a setting ring matched to the range; extension rod included on larger ranges

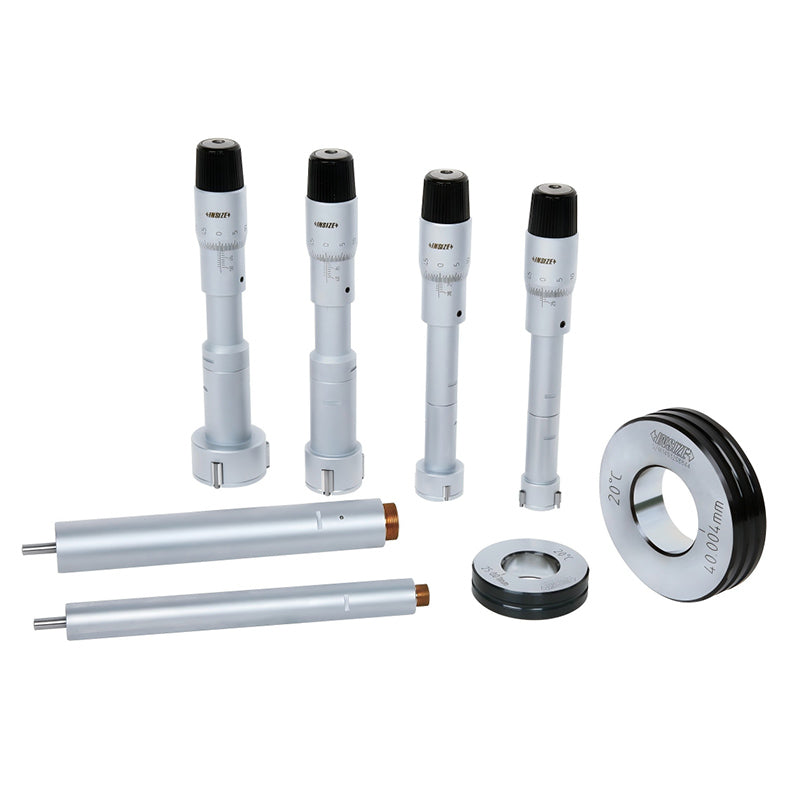

Available as individual gauges or as sets with multiple interchangeable measuring heads
Supplied with manufacturer inspection certificate
Specifications
Specification
Detail
Measurement Ranges Available
.08"-.1" (2-2.5mm) up to 4"-12" (100-300mm); individual and set configurations
Graduation
.001mm (2-12mm range); .005mm (12-300mm range); .0001"-.0002" on inch models depending on range
Accuracy
4-5µm on metric models; .0002" on inch models (varies slightly by range)
Contact Type
Two points (smaller ranges) or three points (mid/larger ranges)
Standard Compliance
DIN 863-4
Setting Ring
Included, sized to the selected range
Extension Rod
Included on select mid and larger ranges
Items Included
Insize 3227 internal micrometer body in the selected range (multiple heads if purchased as a set)
Setting ring(s) matched to the range
Extension rod (included on select mid and larger ranges)
