- Wide Measuring Range: Enables measurement of large internal diameters using a single instrument.
- Three-Point Contact: Self-centering measuring jaws improve stability and accuracy by contacting the workpiece at three evenly spaced points.
- High Graduation Resolution: Graduation of 0.0001″, allowing very fine incremental measurements

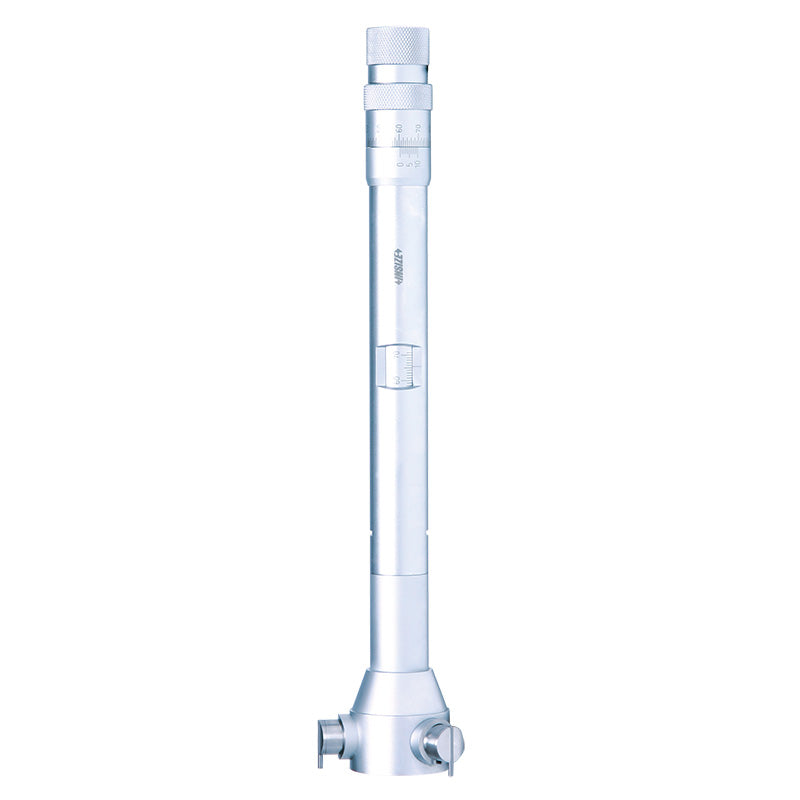

INSIZE 3228-10 Wide Range Three Points Internal Micrometer, 6-10"
by Insize
$3,980.30
INSIZE 3228-10 Wide Range Three Points Internal Micrometer
Are you looking for a precision, wide-range internal micrometer that uses a three-point measuring mechanism to provide highly accurate internal diameter measurements in the span of 6″ to 10″? The INSIZE 3228-10 is designed for professional metrology and machining environments, this tool ensures stable, repeatable readings even in large bores. Its rugged build, ratchet stop, and carbide measuring faces make it reliable for industrial use and frequent calibration.
Key Features
- Wide Measuring Range (6″ to 10″): Enables measurement of large internal diameters using a single instrument.
- Three-Point Contact: Self-centering measuring jaws improve stability and accuracy by contacting the workpiece at three evenly spaced points.
- High Graduation Resolution: Graduation of 0.0001″, allowing very fine incremental measurements.
- Carbide Measuring Faces: Durable carbide tips resist wear, ensuring long-term precision.
- Ratchet Stop: Promotes consistent measuring force and repeatability across measurements.
- Setting Ring Included: Comes with a 6″ diameter setting ring for calibration before use.
-
Inspection Certificate: Supplied with a manufacturer’s inspection certificate, supporting traceability and quality control.
Specifications
| Measuring Range | 6″ – 10″ |
| Graduation / Resolution | 0.0001″ |
| Accuracy | ±0.00032″ |
| Measuring Faces Material | Carbide |
| Contact Type | 3-point (three measuring jaws) |
| Stop Mechanism | Ratchet stop |
| Included Setting Ring | 6″ diameter |
| Standards / Certification | Manufacturer inspection certificate included |
Items Included
- 3228-10 micrometer body
- 6″ diameter setting ring for calibration
- Manufacturer’s inspection / calibration certificate
- Protective case or storage box
Insize 3228-10 Wide Range Three Points Internal Micrometer Manual
