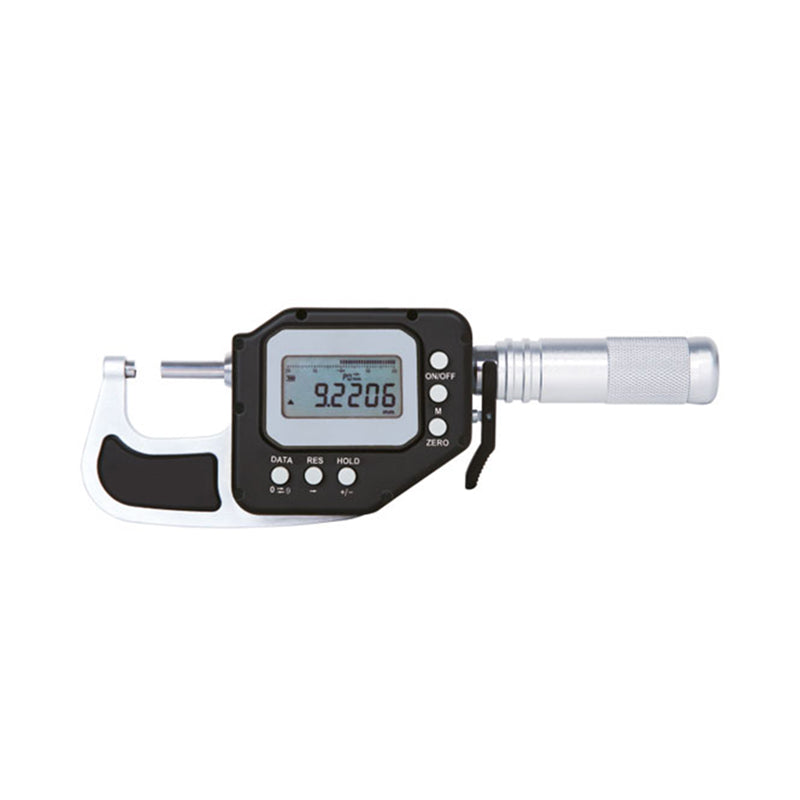

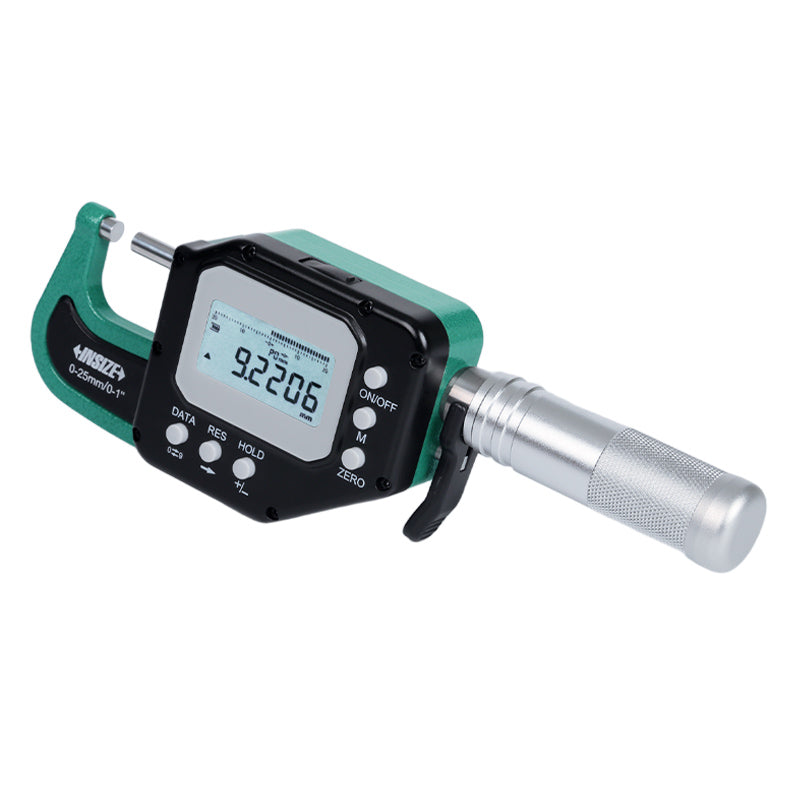

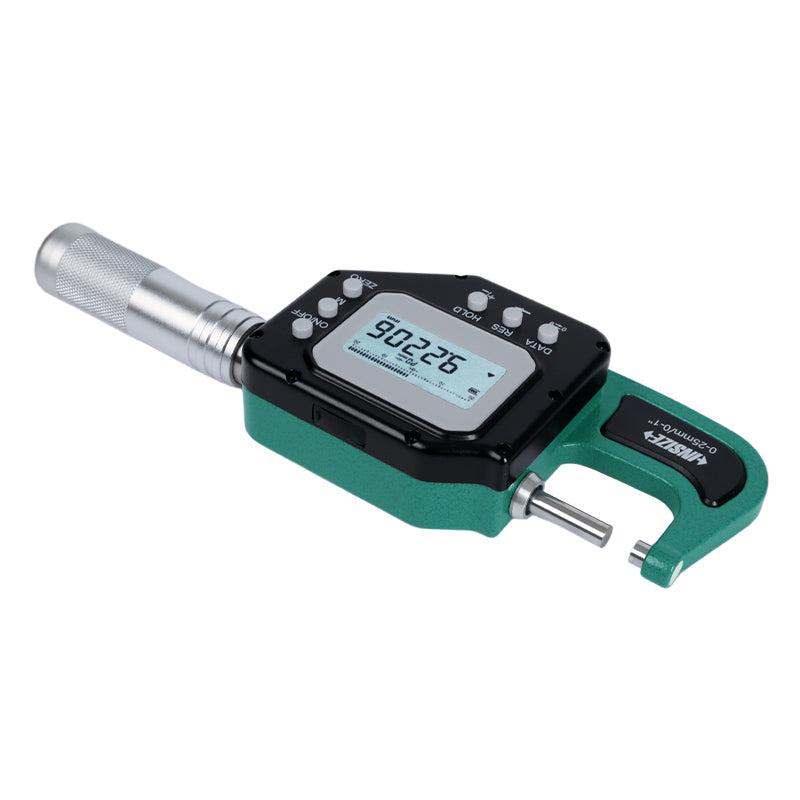

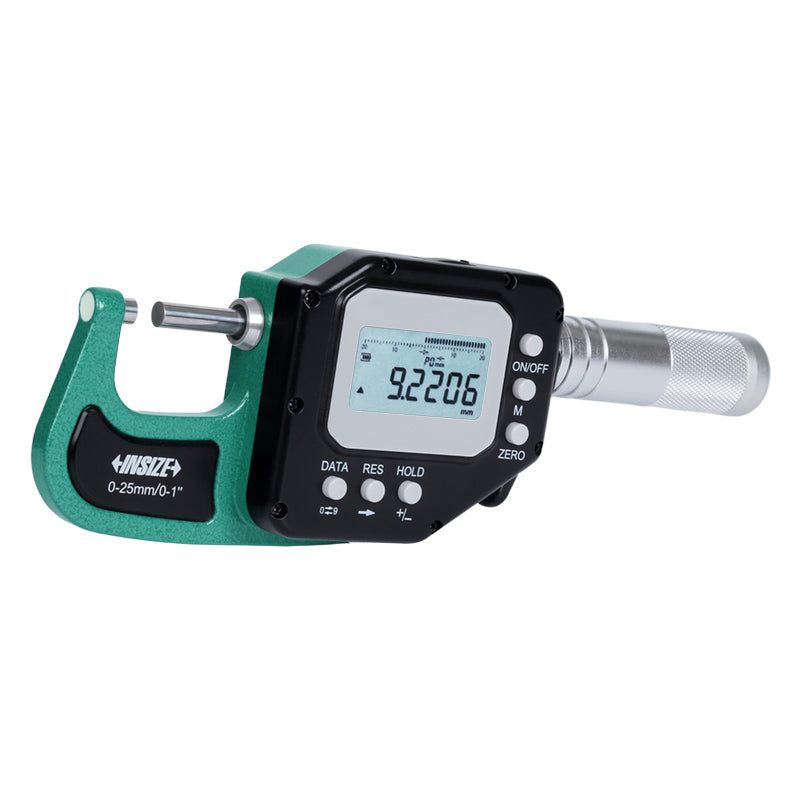

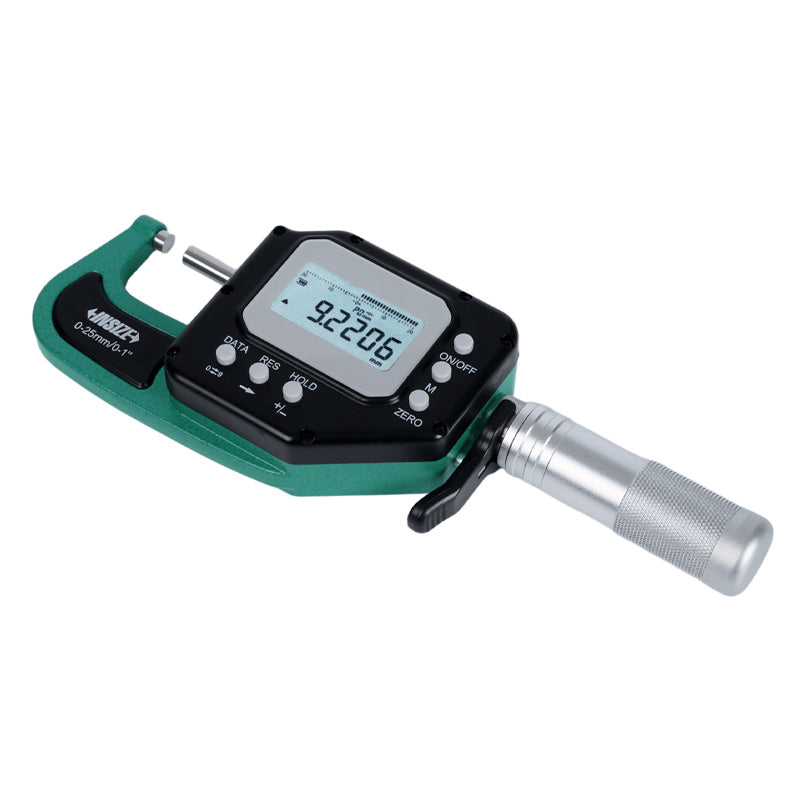

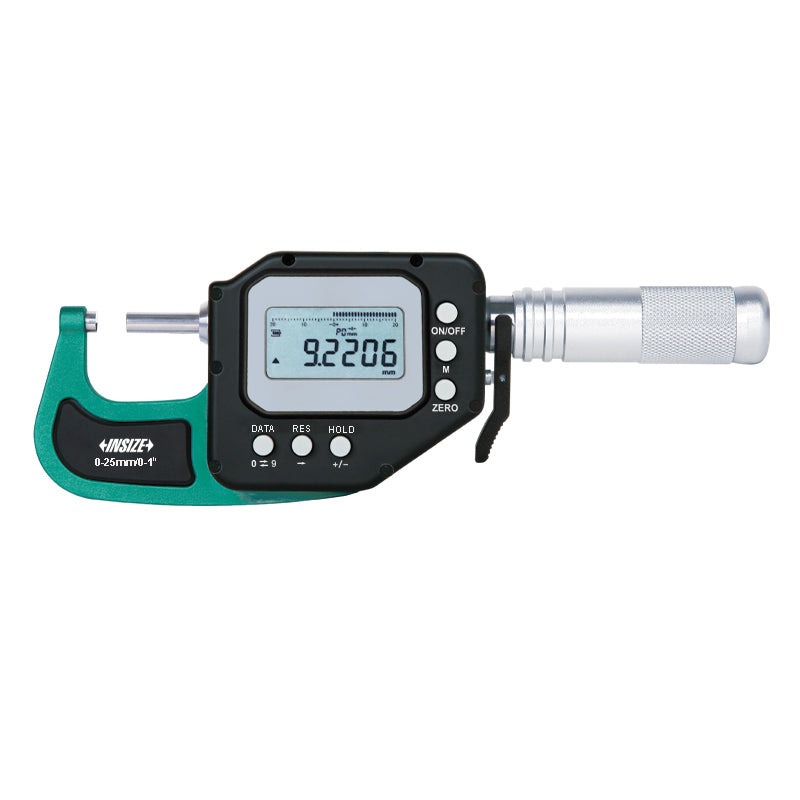

The Insize 3350 High Precision Digital Micrometer/Snap Gauge series was developed for in-process measurement in shop environments, combining the familiar feel and ease of use of a standard indicating micrometer with the accuracy and resolution of an electronic capacitive system. Each unit features a non-rotating spindle design, so one turn of the sleeve advances the spindle without affecting measurement accuracy, and an absolute encoder that retains its original data even after the unit powers off. With adjustable resolution down to .00001"/0.0002mm, a carbide spindle and anvil, IP65 waterproof protection, and a rechargeable battery good for 24 hours of continuous use, the 3350 series is well suited for CNC machining support, in-process quality checks, and production environments where fast, repeatable, and highly precise measurements are essential.
Key Features
Non-rotating spindle: one turn of the sleeve advances the spindle without affecting measurement accuracy
Absolute encoder retains original data even after the unit powers off
Adjustable resolution: .00001"/0.0002mm, .00005"/0.001mm, or .0005"/0.01mm
Spindle retracts .12" (3mm) at the press of the fork for quick part loading
IP65 waterproof rating with customizable measuring force (small measuring force reduces waterproof/dustproof level)
Full button functions: data output, tolerance, data preset, data hold, measuring direction change, max/min/TIR, and adjustable resolution
Specifications
Specification
Detail
Measurement Ranges Available
0-1" (0-25mm) up to 3"-4" (75-100mm), including wireless (WL) variants
Resolution
.00001"/0.0002mm, .00005"/0.001mm, or .0005"/0.01mm (adjustable)
Measuring Force
7-10N standard, customizable from 2-12N
Contact Point Material
Carbide spindle and anvil
Protection Rating
IP65 waterproof
Spindle Feed
.2" (5mm) per sleeve turn; retracts .12" (3mm) via fork
Bearings
Linear ball bearings rated for 10 million cycles
Power
Rechargeable battery, up to 24 hours continuous use
Data Output
Yes; optional wireless transmitter/receiver and data input cable available
Items Included
Insize 3350 digital micrometer/snap gauge in the selected range
Gage blocks for zero setting (included on all ranges except 0-1"/0-25mm)
