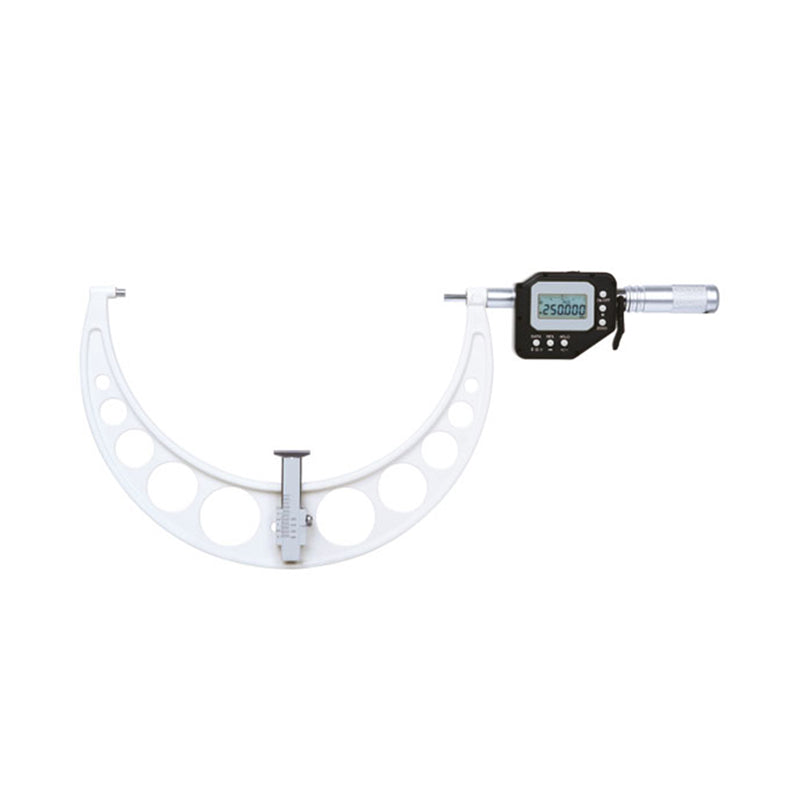

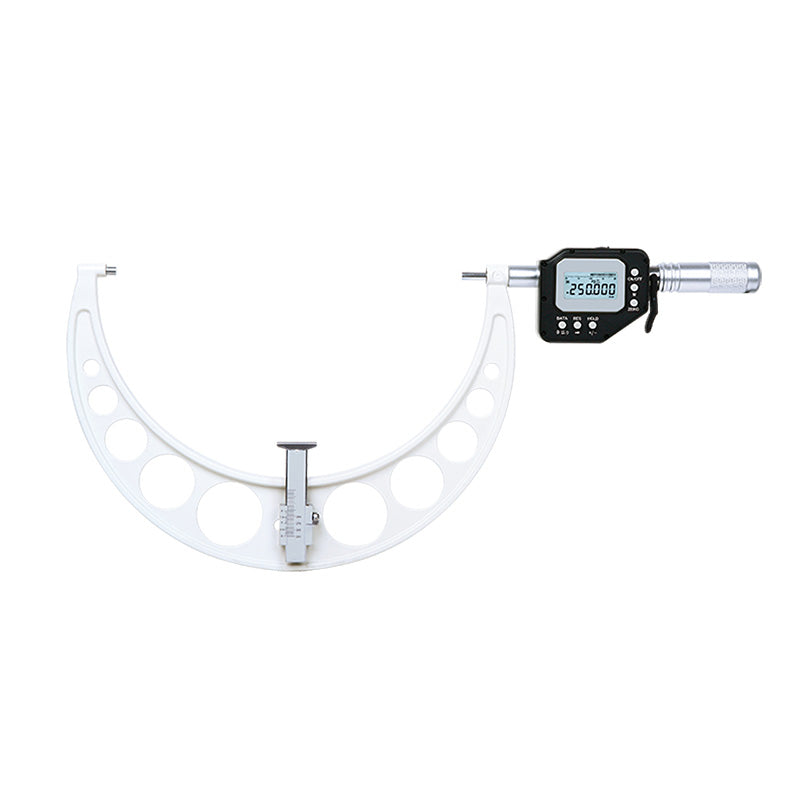

Insize 3351 Digital Micrometers/Snap Gauges
The Insize 3351 High Precision Digital Micrometer/Snap Gauge series extends the accuracy and features of Insize's digital snap gauge line into larger measuring ranges, covering sizes from 100mm up to 300mm (roughly 4" to 12"). Like other Insize high precision digital micrometers, each unit uses a non-rotating spindle, so one turn of the sleeve advances the spindle a fixed distance without affecting measurement accuracy, along with an absolute encoder that retains its original data even after the unit powers off. Adjustable resolution down to .00001"/0.0002mm gives you the flexibility to match the readout to your application, and select models are available with built-in wireless (WL) data transmission for direct connection to a data collection system. With a data interface built in and gage blocks supplied for zero setting, the 3351 series is a practical choice for CNC machining support, in-process inspection, and quality control work involving larger parts.
Key Features
- Non-rotating spindle: one turn of the sleeve advances the spindle without affecting measurement accuracy
- Absolute encoder retains original data even after the unit powers off
- Adjustable resolution: .00001"/0.0002mm, .00005"/0.001mm, or .0005"/0.01mm
- Spindle retracts at the press of the fork for quick, easy part loading
- Built-in wireless data transmission available on select models (WL variants)
- Data interface built in, with gage blocks supplied for zero setting
Specifications
| Specification |
Detail |
| Measurement Ranges Available |
100-125mm (4"-5") up to 275-300mm (11"-12") |
| Resolution |
.00001"/0.0002mm, .00005"/0.001mm, or .0005"/0.01mm (adjustable) |
| Spindle Feed |
.2" (5mm) per sleeve turn |
| Contact Point Material |
Carbide spindle and anvil |
| Data Interface |
Built in; select models available with built-in wireless (WL) |
| Zero Setting |
Gage blocks supplied |
| Power |
Rechargeable battery |
Items Included
- Insize 3351 digital micrometer/snap gauge in the selected range
- Gage blocks for zero setting
- Rechargeable battery
- Fitted storage case
- Instruction manual
Insize 3351 Digital Micrometers/Snap Gauges Data Sheet
