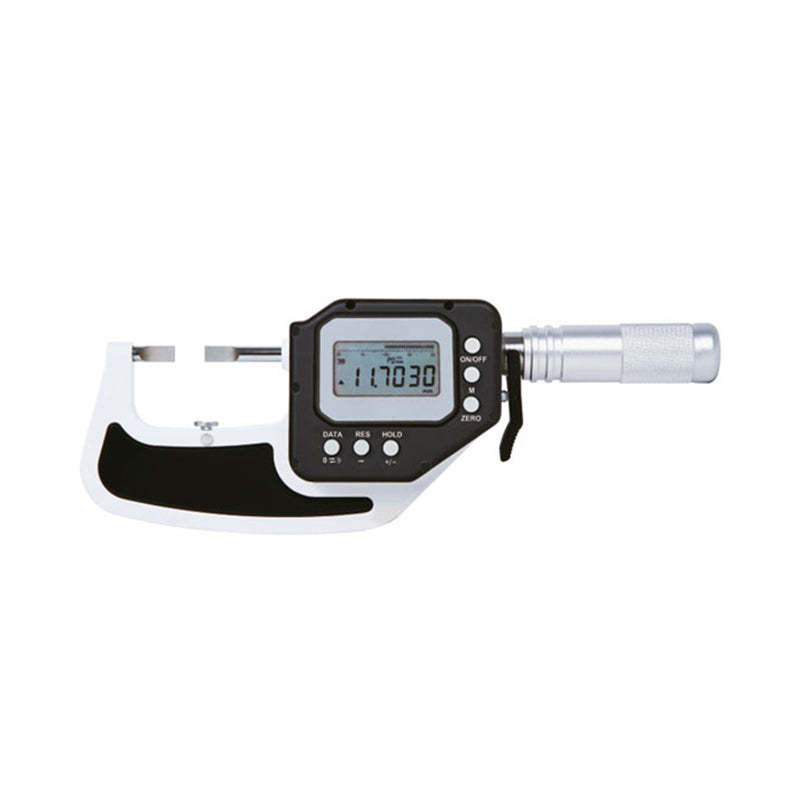

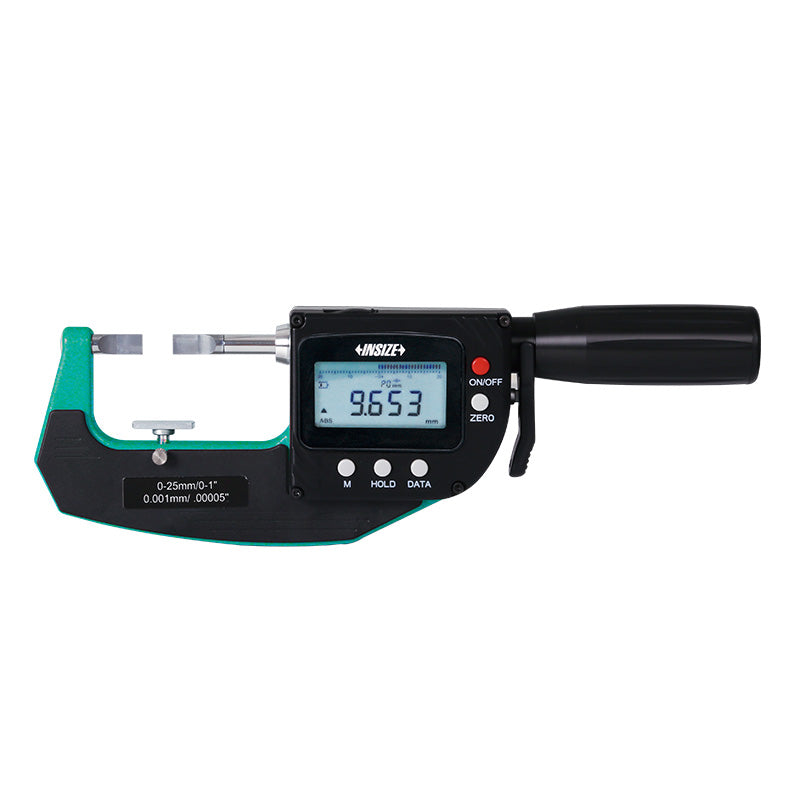

The Insize 3352 High Precision Digital Blade Micrometer/Snap Gauge series is purpose-built to measure the groove diameter of shafts and keyways, using flat plate-style anvils that reach into narrow grooves where standard round-tip anvils can't take an accurate reading. Manufactured to DIN 863/1 and ISO 3611 standards, each unit features a solid carbide anvil paired with an enamel-coated tool steel frame, along with a precision locking lever that maintains a constant clamping force of 7-10N as the spindle advances. Like other Insize high precision digital micrometers, the 3352 series uses an absolute encoder that retains its original data even after power off, offers adjustable resolution down to .00001"/0.0002mm, and is powered by a rechargeable battery good for 24 hours of continuous use. Select models are also available with built-in wireless (WL) data transmission for direct connection to a data collection system, making this series a strong fit for machine shops and inspection labs that regularly check shaft and keyway grooves.
Key Features
Flat plate-style carbide anvils designed to measure groove diameter on shafts and keyways
Absolute encoder retains original data even after the unit powers off
Adjustable resolution: .00001"/0.0002mm, .00005"/0.001mm, or .0005"/0.01mm
Precision locking lever maintains a constant 7-10N clamping force, customizable from 2-12N
Built-in wireless data transmission available on select models (WL variants)
Manufactured to DIN 863/1 and ISO 3611 standards
Specifications
Specification
Detail
Measurement Ranges Available
0-25mm (0-1") up to 50-75mm (2"-3")
Resolution
.00001"/0.0002mm, .00005"/0.001mm, or .0005"/0.01mm (adjustable)
Measuring Force
7-10N standard, customizable from 2-12N
Anvil Material
Solid carbide (plate/blade style)
Frame Material
Tool steel with enamel coating
Spindle Feed
.2" (5mm) per sleeve turn; retracts .12" (3mm) via lever
Protection Rating
IP65 (select models)
Standard Compliance
DIN 863/1, ISO 3611
Power
Rechargeable battery, up to 24 hours continuous use
Data Interface
Built in; select models available with built-in wireless (WL)
Items Included
Insize 3352 digital blade micrometer/snap gauge in the selected range
Gage blocks for zero setting (included on all ranges except 0-25mm/0-1")
