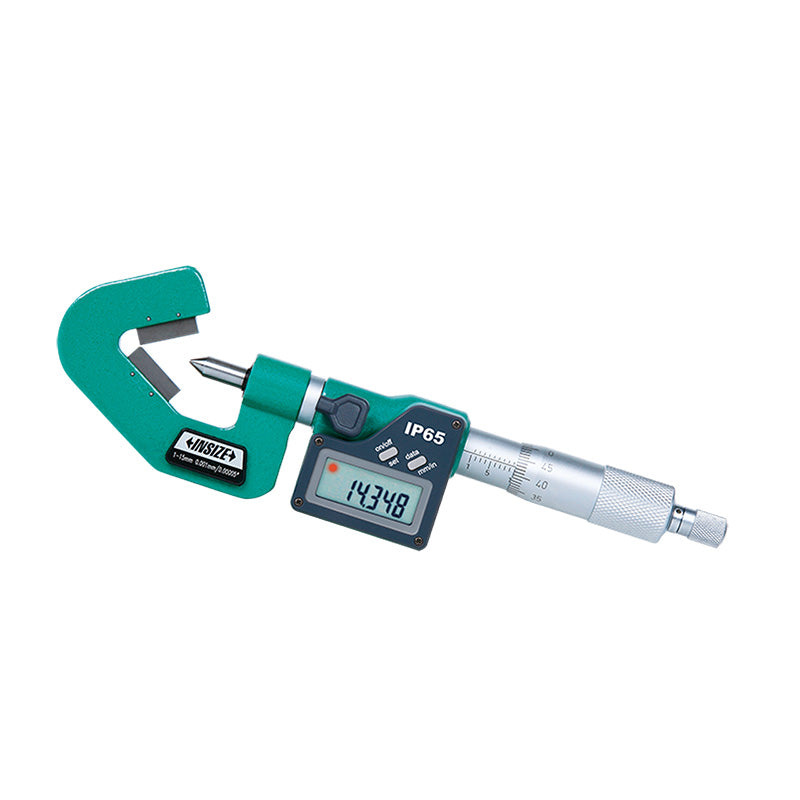

Insize 3590 Digital V-Anvil Micrometers
The Insize 3590 Digital V-Anvil Micrometer series is designed to measure the diameter of parts or cutting tools with odd numbers of grooves, such as taps, reamers, and end mills, where a standard flat-faced micrometer can't get an accurate reading across the cutting edges. Each micrometer uses a V-shaped anvil sized to match a specific flute count — 3-flute (60° angle), 5-flute (108° angle), or 7-flute (128°34'17" angle) — so the anvil sits evenly against the tool's cutting edges for a true diameter measurement. Rated IP65 for dust and waterproof protection, each unit features carbide measuring faces, a ratchet stop for consistent measuring pressure, and built-in data output for connection to SPC and data collection systems. Available across a wide selection of ranges, from .04"-.6" up to 3.4"-4.2" (1-105mm), the 3590 series is a valuable tool for tool and cutter grinding shops, tool rooms, and quality control labs that regularly inspect fluted cutting tools.
Key Features
- V-shaped anvil design matched to 3, 5, or 7-flute cutting tools for accurate diameter measurement
- IP65 dust/waterproof rating for reliable performance in demanding shop conditions
- Ratchet stop delivers consistent measuring pressure on every use
- Carbide measuring faces for long-lasting durability and accuracy
- Built-in data output for connection to SPC and data collection systems
- Available in a wide range of sizes to match different flute counts and tool diameters
Specifications
| Specification |
Detail |
| Measurement Ranges Available |
.04"-.6" (1-15mm) up to 3.4"-4.2" (85-105mm) |
| Flute Options |
3-flute (60° angle), 5-flute (108° angle), 7-flute (128°34'17" angle) |
| Resolution |
.00005"/0.001mm |
| Accuracy |
±4µm to ±6µm depending on range |
| Protection Rating |
IP65 (dust/waterproof) |
| Measuring Face Material |
Carbide |
| Button Functions |
On/off, set, mm/inch, ABS/INC, data transmit |
| Battery |
LR44, automatic power off |
| Data Output |
Yes, optional data output cable (code 7315-, 7302-, 7305-) |
Items Included
- Insize 3590 digital V-anvil micrometer in the selected range and flute configuration
- Setting standard
- LR44 battery
- Fitted storage case
- Instruction manual
Insize 3590 Digital V-Anvil Micrometers Data Sheet
