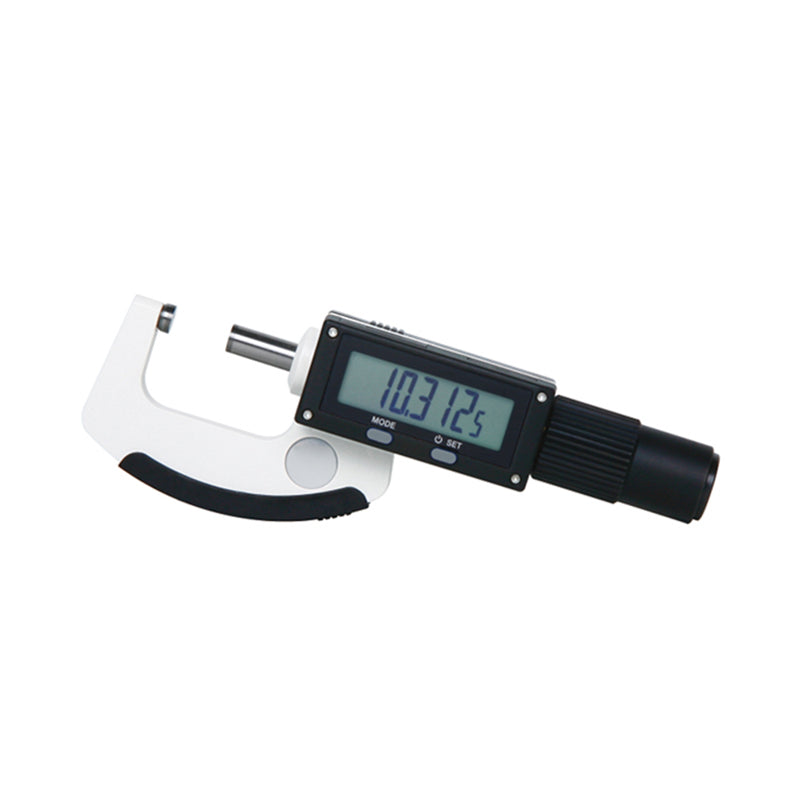

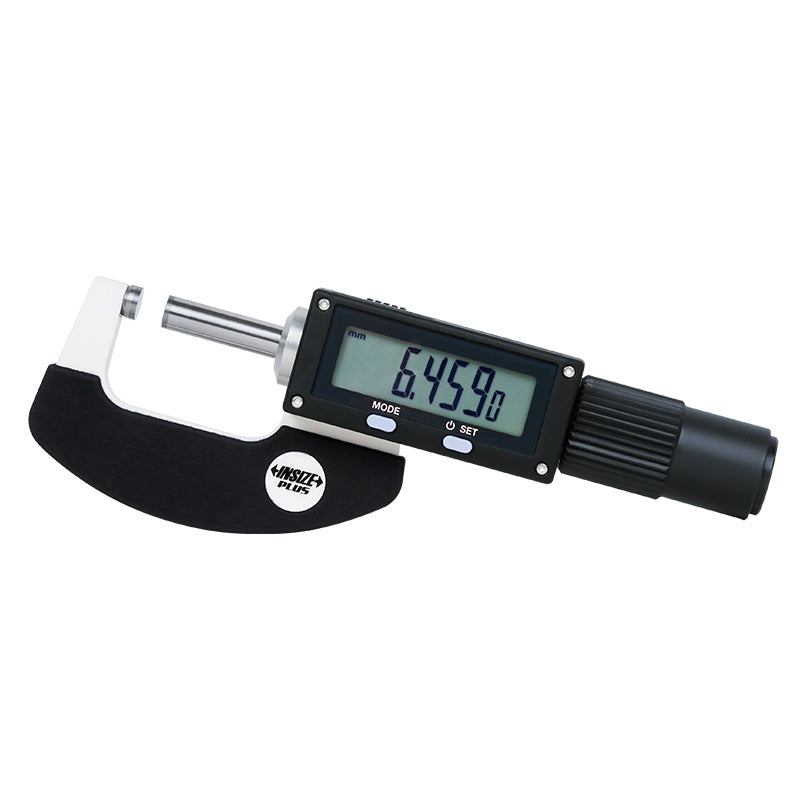

Insize 3661 High Precision Non-Rotating Spindle Digital Micrometers

Insize 3661 High Precision Non-Rotating Spindle Digital Micrometers

The Insize 3661 High Precision Non-Rotating Spindle Digital Micrometer series is built for demanding measurement work where accuracy can't be compromised by spindle rotation. Each unit uses a non-rotating spindle design, so one turn of the sleeve advances the spindle without twisting against the workpiece or affecting the reading, and offers adjustable resolution across three settings — 0.01mm/.0005", 0.001mm/0.00005", and 0.0005mm/.00002" — for flexibility across different precision requirements. With .5µm repeatability and a measuring face flatness of 0.3µm, this series delivers the kind of consistency needed for high-precision inspection work. Available in ranges from 0-30mm (0-1.18") up to 275-305mm (10.83"-12.01"), the 3661 series is well suited for tool rooms, metrology labs, and quality control departments that need dependable, repeatable measurements at the top end of digital micrometer performance.

Key Features

• Non-rotating spindle design keeps measurement accuracy unaffected as the sleeve turns
• Adjustable resolution: 0.01mm/.0005", 0.001mm/0.00005", or 0.0005mm/.00002"
• .5µm repeatability for highly consistent, reliable readings
• Measuring face flatness of 0.3µm for accurate, even contact
• Measuring force of 5-10N for consistent, controlled contact pressure
• Button functions include mm/inch, max/min value tracking, preset value, hold, on/off, and zero

Specifications

Items Included

• Insize 3661 high precision non-rotating spindle digital micrometer in the selected range
• Fitted storage case
• Instruction manual

Insize 3661 High Precision Non-Rotating Spindle Digital Micrometers Data Sheet
