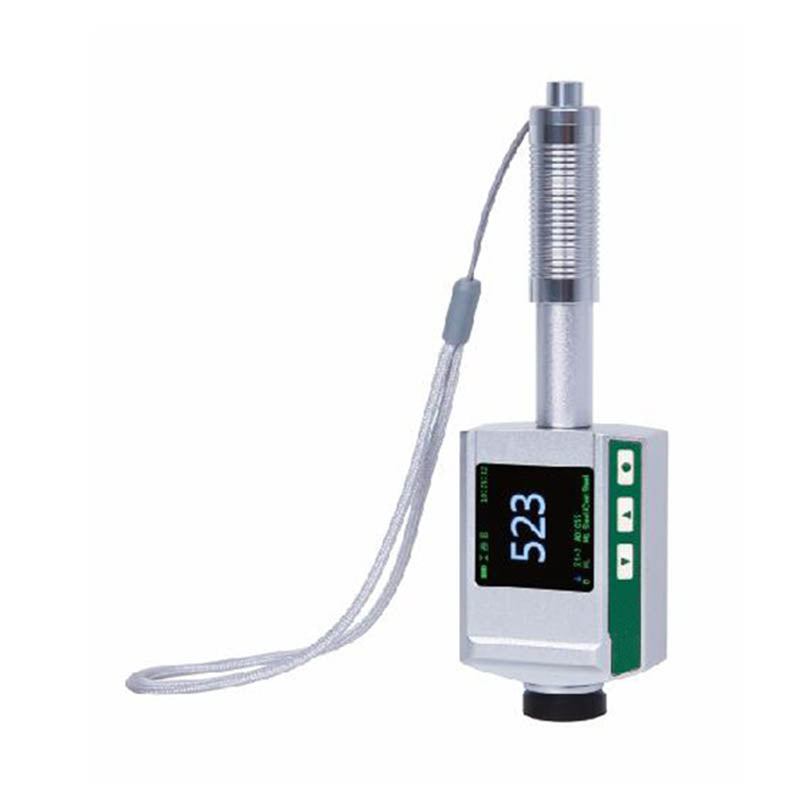

INSIZE HDT-L410 Portable Leeb Hardness Tester
INSIZE HDT-L410 Portable Leeb Hardness Tester
If you're looking for a reliable and versatile portable electronic hardness tester, designed for fast, accurate, and convenient on-site testing of a wide range of metals, the INSIZE HDT-L410 is exactly what you need. With a hardness range of 170 to 960 HLD, this unit converts Leeb hardness values into multiple industry-standard scales, including Vickers (HV), Brinell (HB), Rockwell (HRC, HRB, HRA), Shore (HS), and tensile strength (SGM), ensuring broad compatibility with testing requirements.
Featuring a high-definition 320×320 TFT display in a durable metal housing, the HDT-L410 provides clear readings in all environments. It supports four display modes, automatic direction correction, tolerance testing, and built-in statistical calculations to simplify workflows and reduce errors.
With a resolution of 1HLD, 1HV, 1HB, 0.1HRC, 0.1HRB, 0.1HRA, 0.1HS, and 1SGM, along with ±4HLD accuracy (at HLD=800), this tester ensures dependable precision across different scales. The impact device D offers consistent performance, while the rechargeable 3.7V Li-Polymer battery provides portability and extended use.
The HDT-L410 comes complete with essential accessories, including a hardness test block, support ring, cleaning brush, USB cable, and software for data transfer and analysis.
Key Features
- Resolution 1HLD, 1HV, 1HB, 0.1HRC, 0.1HRB, 0.1HRA, 0.1HS, 1SGM
- Accuracy 0.1HRC, 0.1HRB, 0.1HRA, 0.1HS, 1SGM ±4HLD (when HLD=800)
- Metal housing. HD TFT 320×320 display
- Impact device D
- Based on Leeb (HLD), converted to Vickers (HV), Brinell (HB), Rockwell (HRC, HRA and HRB), Shore (HS) and tensile strength (SGM
- Four display modes
- Automatic direction correction. Tolerance testing
- Automatic power off, automatic calculation of statistics
Specifications
| Type | Portable Electronic Hardness Testers |
| Scale Type | Leeb |
| Minimum Hardness | 170 HLD |
| Maximum Hardness | 960 HLD |
| Hardness Range | 170 to 960 HLD |
| Power Source | Rechargeable Battery |
| Battery Type | 3.7V Rechargeable Li-Polymer |
Items Included
- Main Unit
- Hardness Test Block D
- Small Support Ring
- Cleaning Brush
- AC/DC Adapter
- USB Cable
- Software Disk
INSIZE HDT-L410 Portable Leeb Hardness Tester Manual
