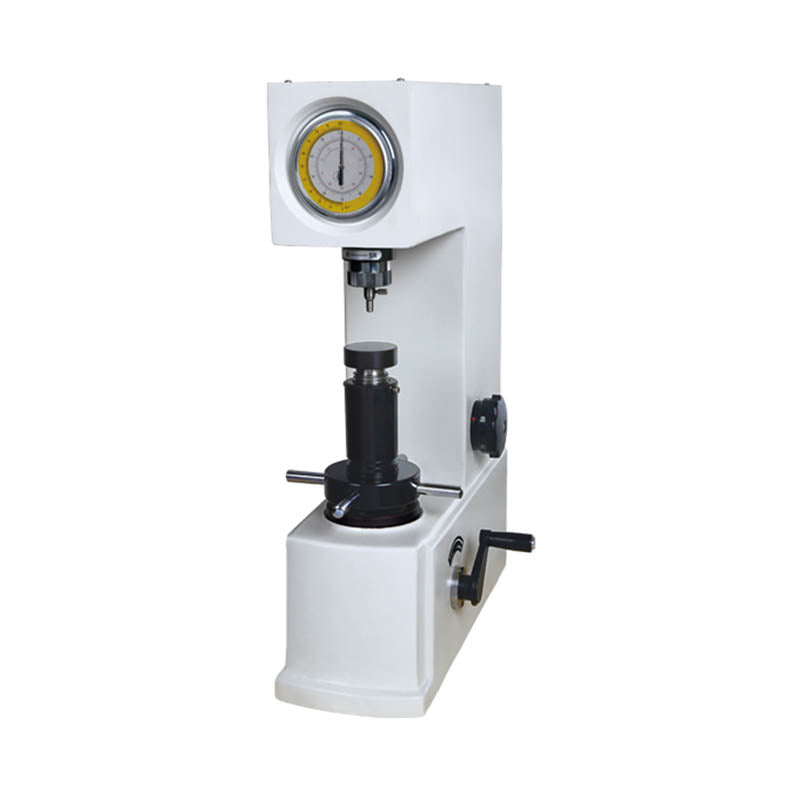

INSIZE HDT-RSR100 Manual Rockwell and Superficial Rockwell Hardness Tester

INSIZE HDT-RSR100 Manual Rockwell and Superficial Rockwell Hardness Tester

  • Dual testing capability
  • High precision and reliability
  • Versatile scale coverage
  • Durable and user-friendly design
  • Complete testing kit
by Insize
$8,572.00

Notify me when back in stock

trustbadge

FREE SHIPPING UP TO 70 LBS

trustbadge

ALWAYS TAX FREE

trustbadge

PRICE MATCH GUARANTEE

trustbadge

EASY 30-DAY RETURN

Have questions about this product?

Contact Us
Customers rate us 4.5/5 based on 49 reviews.

INSIZE HDT-RSR100 Manual Rockwell and Superficial Rockwell Hardness Tester

$8,572.00

Description

INSIZE HDT-RSR100 Manual Rockwell and Superficial Rockwell Hardness Tester

Are you looking for a highly reliable, manual hardness tester designed for both Rockwell and Superficial Rockwell testing? The INSIZE HDT-RSR100 is engineered with robust mechanical design and precise load control, this instrument is ideal for quality control labs, metallurgical testing, and production environments. It supports a comprehensive range of Rockwell scales, allowing you to test a wide variety of materials with one device.

Key Features

  • Dual-mode testing: Supports both standard Rockwell and Superficial Rockwell hardness scales for maximum versatility
  • Wide hardness scale coverage: Includes HRA, HRB, HRC, HRD, HRF, HRG as well as superficial scales HR15N, HR30N, HR45N, HR15T, HR30T, HR45T.
  • Manual load control: Enables the operator to apply test force manually, giving precise control over the loading, dwell, and unloading phases.
  • Analogue display: Classic dial readout allows easy reading of hardness values with minimal training.
  • Manual stage elevation: Provides flexibility in positioning test specimens for a wide variety of shapes and sizes.
  • High resolution: 0.5 HR resolution ensures fine discrimination between hardness levels.
  • Robust load wheel and handle: Designed for durable, long-term use and consistent performance.
  • Comprehensive scale switching: A mode-selection wheel allows quick switching between Rockwell and Superficial Rockwell scales, streamlining testing workflows.
  • ISO compliance: Built in accordance with international standards (e.g., ISO 6508) for reliable, standardized hardness measurement.



Specifications

Hardness Scales HRA, HRB, HRC, HRD, HRF, HRG, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T
Preliminary Test Force 29.4 N (3 kgf) for Superficial Rockwell
98 N (10 kgf) for standard Rockwell
Total Test Force Options 147 N (15 kgf), 294 N (30 kgf), 441 N (45 kgf), 588 N (60 kgf), 980 N (100 kgf), 1471 N (150 kgf)
Load Control Manual
Stage Elevation Manual
Resolution 0.5 HR
Max Workpiece Height ~160 mm
Max Workpiece Depth ~140 mm (from center of indenter)
Display Analogue dial
Power Supply N/A (purely mechanical/manual system)
Dimensions 460 mm × 240 mm × 660 mm
Weight ~75 kg



Items Included

  • 1 × Main hardness tester unit
  • 1 × Ø 60 mm flat anvil
  • 1 × Ø 150 mm flat anvil
  • 1 × V-type anvil (for cylindrical workpieces Ø 4–60 mm)
  • 1 × Diamond indenter (for standard Rockwell)
  • 1 × Carbide ball indenter (Ø 1.5875 mm) for certain Rockwell scales
  • Multiple hardness test blocks:
    • HRB 88–95
    • HRC 20–30
    • HRC 60–65
    • 78–88 HR15N
    • 55–73 HR30N
    • 57–69 HR30T
  • 1 × Protective anti-dust cover / case
