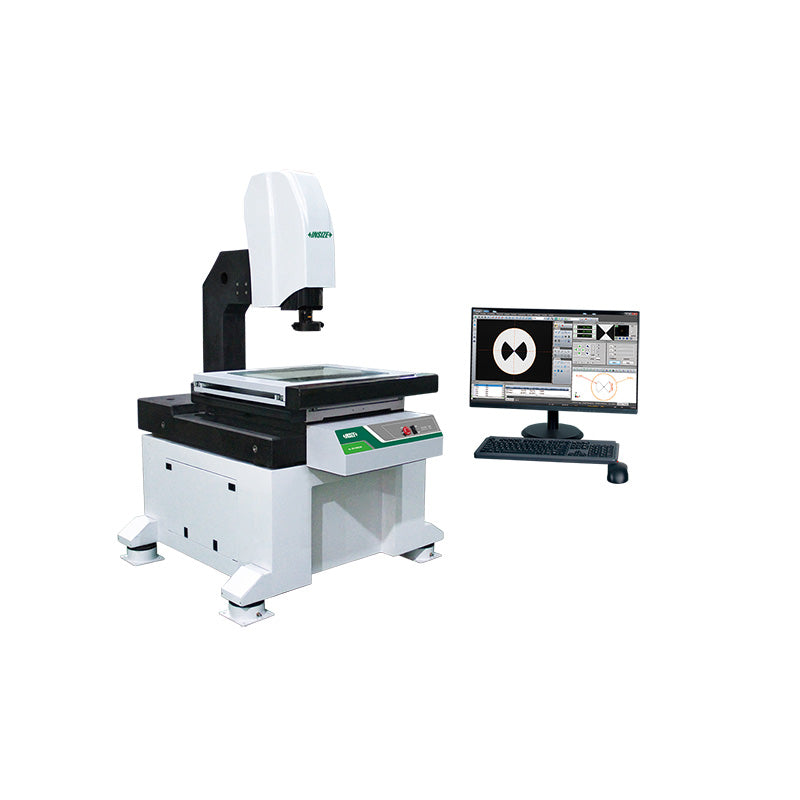

Insize ISD-V500N CNC Vision Measuring Systems

Insize ISD-V500N CNC Vision Measuring Systems

Complex parts demand measurement systems that can keep pace without sacrificing accuracy, and the Insize ISD-V500N CNC Vision Measuring System is built for exactly that challenge. It pairs CNC-controlled motion with vision-based optical measurement to capture dimensional data across multiple features automatically, cutting down on manual setup and operator-to-operator variability. Designed for demanding production and metrology environments, it gives quality teams a consistent, repeatable way to inspect intricate geometries at scale.

Key Features

• CNC-controlled motion for automated, repeatable measurement
• Vision-based inspection for precise dimensional data capture
• Program-driven operation reduces operator-dependent variability
• Handles complex geometries and multiple features per run
• Suited to high-throughput production and demanding QC workflows

Specifications

Who It's For

Ideal for quality control departments and manufacturers handling complex or high-volume parts who need consistent, automated dimensional measurement without the variability of manual optical comparators.

Items Included

• Insize ISD-V500N CNC Vision Measuring System
• Software and workstation (per configuration)
• Calibration/reference accessories (per configuration)

Insize ISD-V500N CNC Vision Measuring Systems Data Sheet
