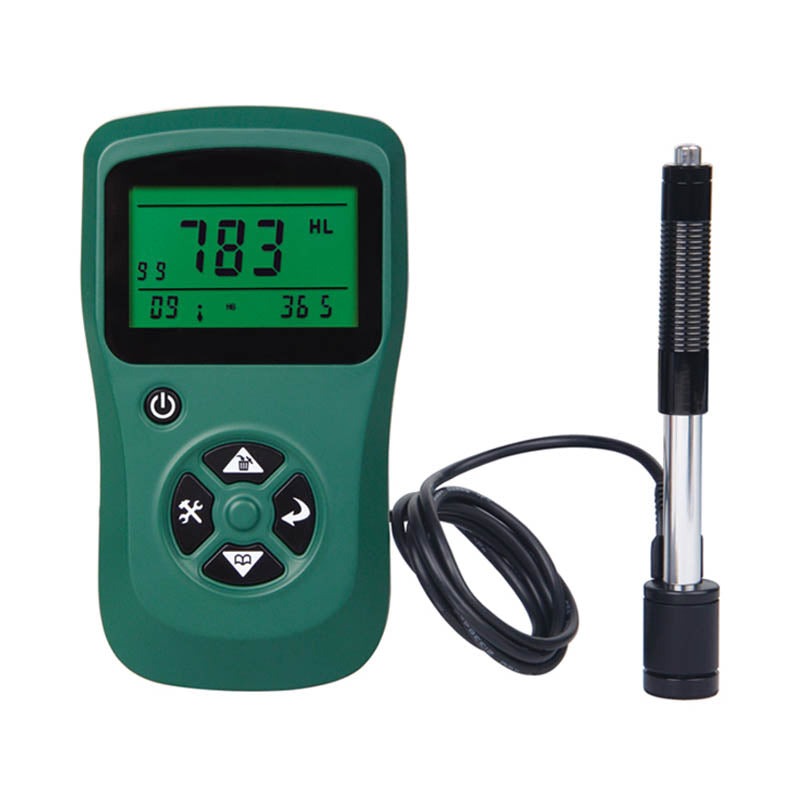

INSIZE ISH-PHB Portable Leeb Hardness Tester
INSIZE ISH-PHB Portable Leeb Hardness Tester
Are you looking for equipment that is designed for fast, accurate, and versatile hardness testing across multiple scales, including Brinell (HB), Leeb (HLD), Rockwell (HRB/HRC), Vickers (HV), and Shore (HS), compliant with ASTM A957 standards? The INSIZE ISH-PHB Portable Leeb Hardness Tester has a measuring resolution of 0.1HRB, 0.1HRC, 1HB, 1HLD, 1HS, 1HV, and 1MPa and an accuracy of ±6 HLD, it delivers reliable results for a wide range of materials. The tester features an indenter size of 0.79, memory storage for up to 99 measurement values, automatic power-off, and Bluetooth connectivity for wireless printer output. Supplied with a hardness test block D and a small support ring, this portable unit is ideal for field testing, workshops, and quality control environments.
Key Features
- Min. reading: 1HLD, 1HV, 1HB, 0.1HRC, 0.1HRB, 1HS, 1MPa
- Accuracy ±6HLD (when HLD=800)
- Display: Leeb(HLD), converted hardness, material, impact direction, test time
- Output bluetooth. Supplied w impact device D
- Set measurement times (1~9) to have average value.
- Based on Leeb(HLD), converted to (HV),(HB), (HRC and HRB), Shore(HS) and tensile strength(MPa)
- Memory of 99 measurement values for browsing
- Connected with printer via bluetooth. Automatic power off. According to ASTM A 956
Specifications
| Accepted Test Materials | Brass, Bronze, Cast Aluminum Alloy, Cast Iron, Cast Steel, Copper, Stainless Steel, Steel, Tool Steel |
| Accuracy | +/-6 HLD, 0.1 HRB, 0.1 HRC, 1 HB, 1 HLD, 1 HS, 1 HV, 1 MPa |
| Display Type | Digital |
| Features | Automatic Power Off, Connect with Printer Via Bluetooth, Memory of 99 Measurement Values for Browsing |
| Hardness Scale | Leeb |
| Includes | Main Unit, Hardness Test Block D, Small Support Ring |
| Indenter | 0.79 |
| Interface Type | ASTM A 957 |
| Measuring Range | 0.1HRB, 0.1HRC, 1HB, 1HLD, 1HS, 1HV, 1MPa |
| Measuring Range - Maximum | 68 HRC, 101 HRB, 655 HB, 900 HLD, 955 HV |
| Measuring Range - Minimum | 13 HRB, 19 HB, 20 HRC, 32 HS, 80 HV, 170 HLD |
| Product Type | Portable Hardness Tester |
| Resolution | +/-6 HLD |
| Scales | B, HLD, HRB, HRC, Vickers HV |
| Testing Methods | Rebound |
| Type | ASTM A 957 |
| Work Surface Material | Brass, Bronze, Cast Aluminum Alloy, Cast Iron, Cast Steel, Copper, Stainless Steel, Steel, Tool Steel |
| Work Surface Width | 25/64 in |
Items Included
- Main Unit
- Hardness Test Block D
- Small Support Ring
