INSIZE ISH-PHB-B Portable Leeb Hardness Tester Manual- Built-in Bluetooth connectivity enables fast wireless data transfer to devices and printers, streamlining reporting and documentation.
- High measurement accuracy (±6 HLD at HLD=800) ensures reliable test results, reducing the risk of error during critical inspections.
- Multi-scale conversion capabilities allow hardness results to be translated into HV, HB, HRC, HRB, HS, and MPa values—all from one test.
- Wide resolution range (1HLD, 1HV, 1HB, 0.1HRC, etc.) provides precise hardness readings across various material types.

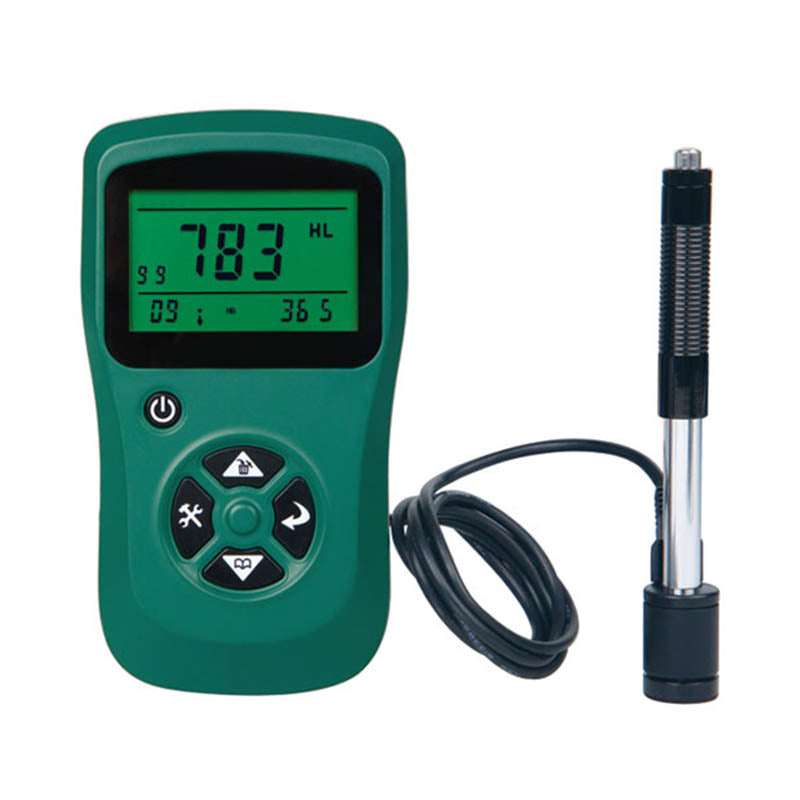

INSIZE ISH-PHB-B Portable Leeb Hardness Tester
by Insize
$1,245.00
INSIZE ISH-PHB-B Portable Leeb Hardness Tester
Are you looking for equipment that is a high-precision, wireless hardness testing device designed for fast and reliable measurements across metals? The INSIZE ISH-PHB-B Portable Leeb Hardness Tester has built-in Bluetooth, it allows seamless data transfer and connects to printers via a wireless module for efficient reporting. With resolutions of 1HLD, 1HV, 1HB, 0.1HRC, 0.1HRB, 1HS, and 1MPa, and an accuracy of ±6HLD (at HLD=800), it converts Leeb hardness values to Vickers (HV), Brinell (HB), Rockwell (HRC/HRB), Shore (HS), and tensile strength (MPa). Equipped with memory for 99 measurements, automatic averaging, and power-off functionality, this portable tester complies with ASTM A956 standards and comes complete with a support ring and Hardness Test Block D, making it ideal for field or workshop use.
- Built-in Bluetooth
- 1HLD, 1HV, 1HB, 0.1HRC, 0.1HRB, 1HS, 1MPa
- Accuracy ±6HLD (when HLD=800)
- Based on Leeb (HLD), converted to Vickers (HV), Brinell (HB), Rockwell (HRC and HRB), Shore (HS) and tensile strength (Mpa)
- Memory of 99 measurement times (1~9) to have average value
- Connected with printer via wireless module
- Automatic power off
- According to ASTM A 956
Key Features
- Built-in Bluetooth
- High Accuracy
- Multi-Scale Conversion
- Memory & Printing
- Convenient Operation
Specifications
| Hardness Scales |
Leeb (HLD), Vickers (HV), Brinell (HB), Rockwell (HRC/HRB), Shore (HS), Tensile Strength (MPa)
|
| Resolution |
1HLD, 1HV, 1HB, 0.1HRC, 0.1HRB, 1HS, 1MPa
|
| Accuracy | ±6 HLD (when HLD=800) |
| Built-in Connectivity | Bluetooth, wireless printer connection |
| Memory |
Stores up to 99 measurements with averaging capability
|
| Automatic Features | Automatic power-off |
| Standards Compliance | ASTM A956 |
| Included Accessories |
Small support ring, Hardness Test Block D
|
| Operation Type | Portable, handheld |
Items Included
- Main Unit
- Small Support Ring
- Hardness Tester Block D
