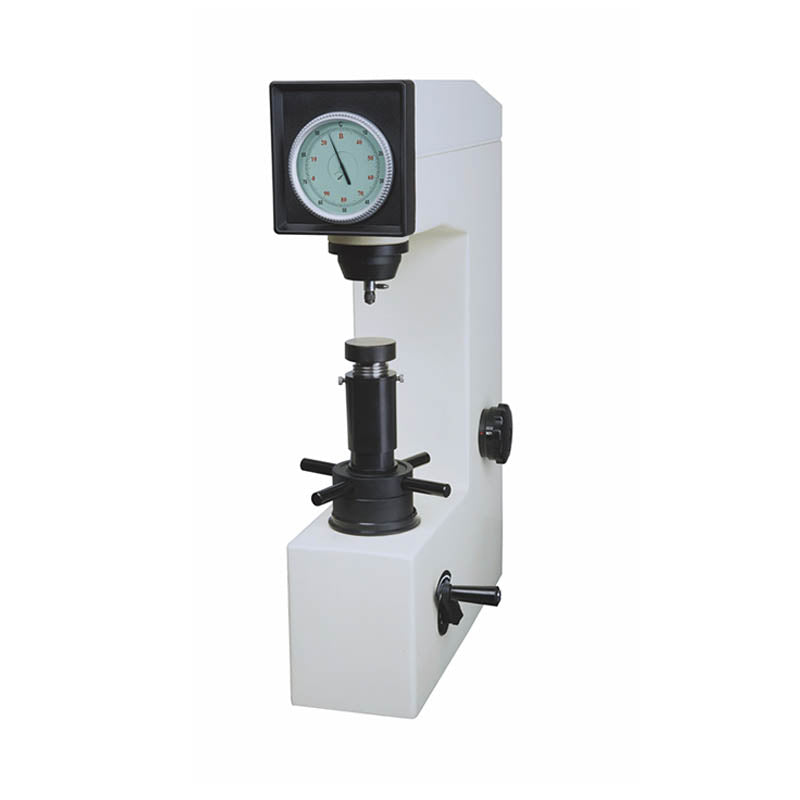

INSIZE ISH-R150 Manual Rockwell Hardness Tester

INSIZE ISH-R150 Manual Rockwell Hardness Tester

Are you looking for a reliable, heavy-duty manual Rockwell hardness tester designed for precision hardness testing across multiple Rockwell scales? The INSIZE ISH-R150 is built with robust mechanics, this tester provides accurate and repeatable measurements through a purely mechanical operation which is ideal for quality control labs, metallurgical shops, and inspection departments where a manual, no-frills device is preferred.

Key Features

• Versatile Hardness Scales: Supports a wide range of Rockwell hardness scales: HRA, HRB, HRC, HRD, HRF, and HRG, making it suitable for a variety of materials and applications.
• Adjustable Test Forces: Offers a preliminary test force of 98 N (10 kgf) and selectable major test forces of 588 N (60 kgf), 980 N (100 kgf), and 1471 N (150 kgf).
• Manual Operation: Both the stage elevation and the load control are manually operated, giving full control over test setup and execution.
• Analog Readout: The hardness value is displayed on a dial gauge, allowing for intuitive reading without reliance on electronics.
• Precision & Resolution: Capable of readings down to 0.5 HR, ensuring meaningful sensitivity for many hardness testing applications.
• Robust Build: Large capacity test area capable of a maximum workpiece height of approx. 170 mm and a depth of 165 mm (measured from the center of the indenter).
• Compact, Heavy-Duty Design: With a frame dimension of about 520 × 160 × 700 mm and a weight of 60 kg, it offers excellent stability during testing.

Specifications

Items Included

• Main hardness tester unit (manual)
• Ø 60 mm flat anvil
• Ø 150 mm flat anvil
• V-type anvil (for cylindrical specimens)
• Diamond indenter
• Ø 1.5875 mm carbide ball indenter
• Hardness test block HRB 85–95 (1 pc)
• Hardness test block HRC 60–70 (1 pc)
• Hardness test block HRC 20–30 (1 pc)

Insize ISH-R150 Manual Rockwell Hardness Tester Manual
