INSIZE ISH-TDV1000A-B Digital Micro-Vickers Hardness Tester
by Insize
$26,681.00

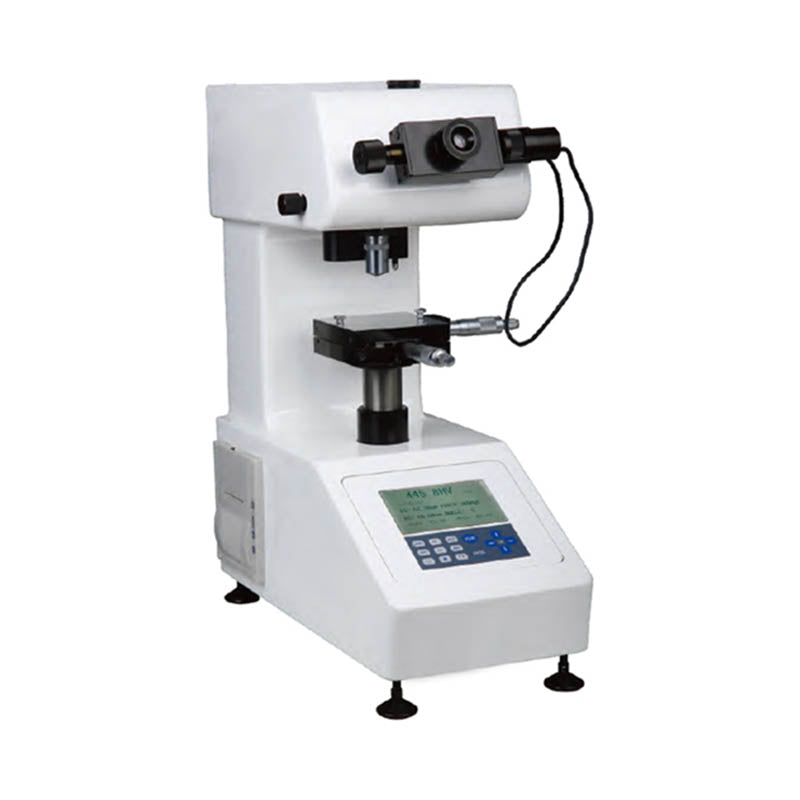

INSIZE ISH-TDV1000A-B Digital Micro-Vickers Hardness Tester
Are you looking for a high-precision digital micro-Vickers hardness tester, expertly engineered to measure the hardness of small, thin, or delicate workpieces with exceptional accuracy and repeatability? The INSIZE ISH-TDV1000A-B has an automatic load control and a broad selection of test forces, this instrument is ideal for metallurgical labs, quality control environments, and advanced research applications.
Key Features
- Ultra-Low to High Test Force Range: Offers eight selectable test forces – from 0.01 to 1 kgf – enabling measurement of very fine or sensitive materials.
- Wide Vickers Hardness Scales: Supports HV0.01, HV0.025, HV0.05, HV0.1, HV0.2, HV0.3, HV0.5, and HV1 scales.
- Automatic Load Control: Automatically handles the phases of loading, dwell (hold), and unloading for consistent test cycles.
- Adjustable Dwell Time: The test load can be held for 5 to 60 seconds (in 5-second increments) to accommodate different material behaviors.
- High Magnification Optics: Equipped with 10× and 40× objectives, plus a 15× eyepiece, delivering total magnification of 150× for observation, and up to 600× for precise indentation measurement.
- Manual Stage Elevation: The worktable can be raised or lowered manually, giving operators intuitive control over sample positioning.
- Large Workpiece Capacity: Supports samples up to 85 mm in height and 85 mm in depth (from indenter center), making it suitable for a variety of specimen sizes.
- XY Stage: Includes a 100 × 100 mm stage with 25 × 25 mm travel and a resolution of 0.01 mm, allowing precise lateral positioning.
- Data Interface: Equipped with RS-232C output for data export, facilitating connection to PCs or printers.
- Power: Compatible with 110/220V, 50 Hz power supply.
- Robust Build: The tester has durable construction, measuring 540 × 500 × 640 mm and weighing approximately 50 kg.
- Scale Conversion: Besides Vickers (HV), the instrument supports conversion to Rockwell scales such as HRA, HRB, and HRC.
Specifications
| Model | ISH-TDV1000A-B |
| Test Forces (kgf) | 0.01, 0.025, 0.05, 0.1, 0.2, 0.3, 0.5, 1 |
| Vickers Scales (HV) | HV0.01, 0.025, 0.05, 0.1, 0.2, 0.3, 0.5, 1 |
| Dwell Time | 5 to 60 seconds, in 5-second steps |
| Load Control | Automatic (load / dwell / unload) |
| Stage Elevation | Manual |
| Objectives | 10×, 40× |
| Eyepiece | 15× |
| Magnification | 150× (observation), 600× (measurement) |
| Max Specimen Size | Height: 85 mm; Depth: 85 mm from indenter center |
| XY Stage Size | 100 × 100 mm; Travel: 25 × 25 mm; Resolution: 0.01 mm |
| Data Output | RS-232C |
| Power Supply | 110 / 220 V, 50 Hz |
| Dimensions (mm) | 540 × 500 × 640 mm |
| Weight | ~50 kg |
Items Included
- Main hardness tester unit
- 10× objective lens
- 40× objective lens
- Micro-Vickers indenter
- Micro-Vickers hardness test blocks: one at ~400–500 HV0.2, one at ~700–800 HV1
- Slice (sheet) specimen holder / clamp
- Cylindrical (round) specimen holder / clamp
- Vice (for clamping test pieces)
- Circular bubble level (for leveling the tester)
- Dust-proof cover / protective cover
- Spare lamp
- Spare fuse
- Power cord / cable
- Screwdriver and hex wrenches for setup and transport-locking removal
- Certificate of Quality / Calibration Certificate
- Operation manual / user guide
Insize ISH-TDV1000A-B Digital Micro-Vickers Hardness Tester Manual
