INSIZE ISHR-M111 Magnetic Rockwell Hardness Tester
by Insize
$8,947.00

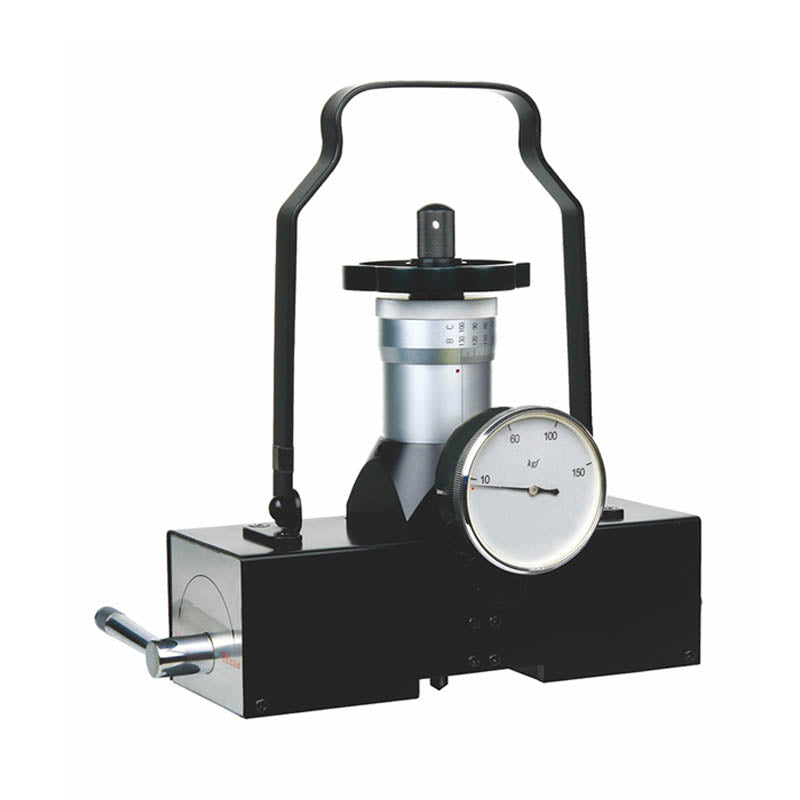

INSIZE ISHR-M111 Magnetic Rockwell Hardness Tester
Are you looking for a compact, manual Rockwell tester tailored for use on large, heavy steel or iron workpieces where portability and strong holding force are required? Rather than relying on conventional weight-sets, the INSIZE ISHR-M111 Magnetic Rockwell Hardness Tester uses a magnetic base for secure attachment to ferrous parts, making it ideal for field measurements or shop-floor testing. Designed to comply with ISO 6508 and ASTM E18, it delivers dependable hardness readings across multiple Rockwell scales with a robust, yet lightweight build.
Key Features
- Magnetic Base Fixation: The built-in magnetic clamping system securely anchors the tester to steel or iron surfaces, ensuring stable measurements on large or cumbersome workpieces.
- Multi-Scale Rockwell Measurement: Supports six standard Rockwell scales — HRA, HRB, HRC, HRD, HRF, and HRG — enabling versatile testing across various material types.
- Manual Load Control: Test forces (60 kg, 100 kg, 150 kg) are applied manually via a hand wheel, with a preliminary (minor) force of 10 kg.
- High Resolution: Provides a minimum reading (resolution) of 1 HR, giving clear, easy-to-read results.
- Portable & Lightweight: With a compact footprint (220 × 70 × 220 mm) and weight of just ~4.7 kg, the tester is easy to carry and set up.
- Magnifier with LED: Comes with a magnifier and built-in LED light for clearer viewing of the indentation and dial.
- Wide Workpiece Compatibility: Suitable for flat parts (length > 180 mm, width > 60 mm, thickness > 5 mm) and cylindrical or tubular components (length > 180 mm, diameter > 50 mm, wall thickness > 8 mm).
- Standards Compliance: Built to meet ISO 6508 and ASTM E18 specifications for Rockwell hardness testing.
Specifications
| Model | ISHR-M111 |
| Hardness Scales | HRA, HRB, HRC, HRD, HRF, HRG |
| Preliminary Test Force | 10 kg |
| Total Test Forces | 60 kg, 100 kg, 150 kg |
| Load Control | Manual (hand wheel) |
| Minimum Readout / Resolution | 1 HR |
| Workpiece Requirements | Flat: L > 180 mm, W > 60 mm, Thickness > 5 mm; Cylindrical / Tube: Length > 180 mm, Ø > 50 mm, Wall Thickness > 8 mm |
| Dimensions | 220 × 70 × 220 mm |
| Weight | ≈ 4.7 kg |
| Standards | ISO 6508, ASTM E18 |
Items Included
- Main tester unit
- Flat anvil (for test blocks)
- Supports / fixtures (for cylindrical or tubular workpieces)
- Diamond Rockwell indenter
- Carbide ball indenter (Ø 1.5875 mm)
- Hardness test block HRB (≈ 85–95)
- Hardness test block HRC (≈ 60–70)
- Hardness test block HRC (≈ 20–30)
- Mounting supports for cylindrical/tubular components
- Magnifier with built-in LED light for indentation inspection
- Lifting / handle mechanism for positioning the tester
