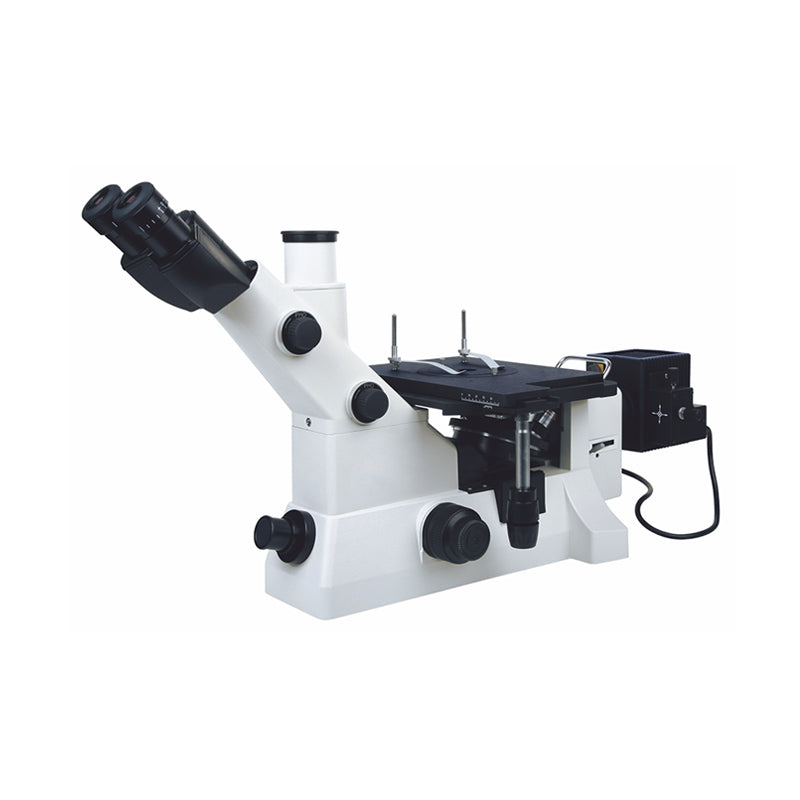

INSIZE ISM-M2000 Metallurgical Microscope

INSIZE ISM-M2000 Metallurgical Microscope

by Insize
Save 5%
$18,067.44
$17,164.07
Availability: Translation missing: en.general.icons.icon_check_circle icon Only 10 left!

Notify me when back in stock

INSIZE ISM-M2000 Metallurgical Microscope

Eyepiece (wide field) 10X (view field .87" DIA). Objective (plan achromatic): 5X (included), 10X(included), 20X(included), 50X(included),100X (included)

Stage: double layer, size 6.30×5.51", travel: 2.95×1.97"(0.1mm/.004"). Illumination:12V/50W halogen lamp

Built-in green, yellow, blue, gray and frosted glass. Pupil distance 1.89~2.95". Diopter adjustment ±5 diopter(two eyepieces)

For high magnification observation and metallurgical image analysis

Objective can be used in both bright field and dark field

Kohler illumination system provides uniform illumination field

Description

INSIZE ISM-M2000 Metallurgical Microscope

Eyepiece (wide field) 10X (view field .87" DIA). Objective (plan achromatic): 5X (included), 10X(included), 20X(included), 50X(included),100X (included)

Stage: double layer, size 6.30×5.51", travel: 2.95×1.97"(0.1mm/.004"). Illumination:12V/50W halogen lamp

Built-in green, yellow, blue, gray and frosted glass. Pupil distance 1.89~2.95". Diopter adjustment ±5 diopter(two eyepieces)

For high magnification observation and metallurgical image analysis

Objective can be used in both bright field and dark field

Kohler illumination system provides uniform illumination field
