Inspired Flight IF800 Tomcat + Gremsy VIO EO/IR Bundle - Mission-Ready Medium-Lift ISR Quad, Ready to Fly Out of the Case
Most drone procurement ends with a platform. This bundle starts with a complete mission system. The Inspired Flight IF800 Tomcat paired with the Gremsy VIO EO/IR payload and SRoC + DL2450 Radio GCS gives your team everything needed to deploy, fly, and collect actionable intelligence on day one — no additional sourcing, no integration headaches, no compatibility guesswork.
Built entirely on U.S.-manufactured hardware, Blue UAS-listed, and NDAA-compliant, the IF800 bundle is procurement-ready for federal agencies, defense contractors, public safety departments, and critical infrastructure operators who can't compromise on data security or mission performance.
Who This Bundle Is Built For
-
Public Safety & First Responders - rapid deployment for search and rescue, incident command overwatch, and missing persons operations using combined optical and thermal imaging
-
Defense & Government Agencies - Blue UAS-listed and NDAA-compliant; procurement-ready for DoD, DHS, and federally funded programs without additional waivers
-
Infrastructure Inspection Teams - power lines, pipelines, bridges, and towers inspected at distance with 240x zoom and radiometric thermal for heat anomaly detection
-
Mapping & Surveying - 54-minute endurance and stable platform for photogrammetry, LiDAR integration, and terrain mapping over large areas
-
Law Enforcement - covert aerial observation with EO/IR dual-sensor switching, AI object tracking, and long-range laser range finding
-
Emergency Management - damage assessment, disaster relief coordination, and real-time situational awareness in post-event environments
Why the IF800 Tomcat Beats DJI's M300 for Government & Enterprise Use
The DJI M300 is a capable platform - but it's a Chinese-manufactured system operating under a foreign data governance framework. For federal agencies, defense contractors, and any organization handling sensitive operational data, that's an unacceptable risk. The IF800 Tomcat is American-made, Blue UAS-certified by the Defense Innovation Unit, and NDAA Section 848 compliant - meaning your data stays where it belongs, and your procurement clears without the policy exceptions DJI requires.

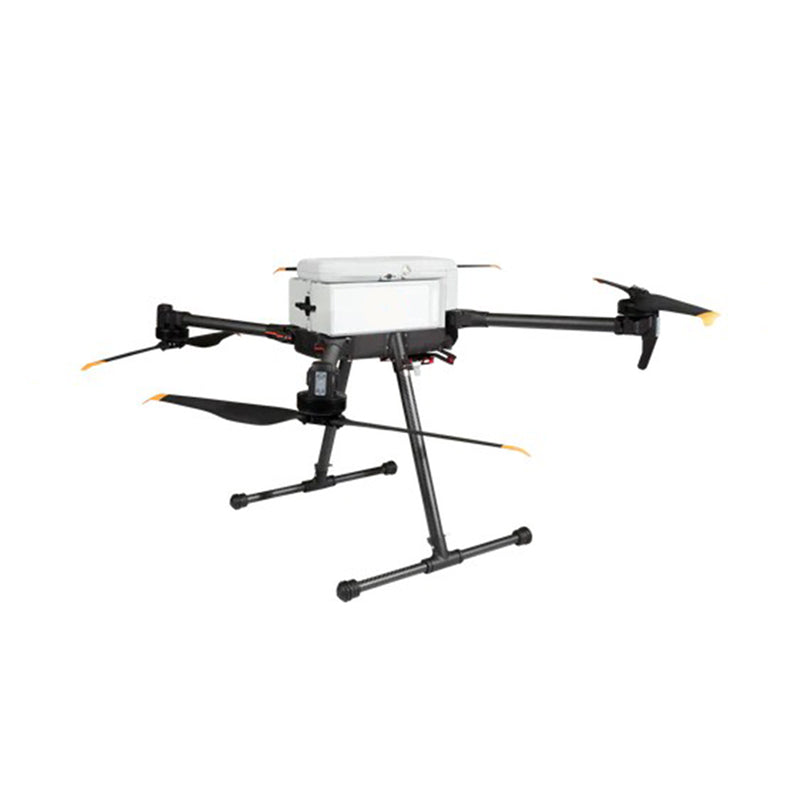

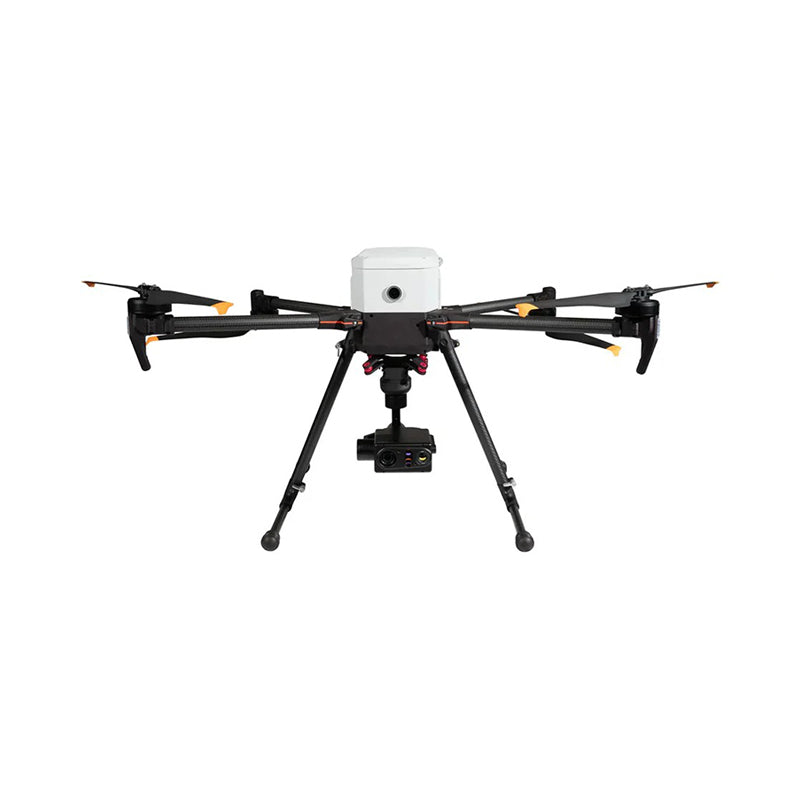

IF800 Tomcat - Aircraft Specifications
| Specification |
Detail |
| Platform Type |
Medium-lift quadcopter (foldable) |
| Max Flight Time |
54 minutes (unloaded); 40+ minutes with Gremsy VIO payload |
| Max Payload Capacity |
6.6 lbs (3.0 kg) |
| Max Speed |
49 MPH |
| Wind Resistance |
23 knots |
| IP Rating |
IP43 |
| Batteries |
Dual hot-swappable IB388 smart batteries (included) |
| Battery Intelligence |
On-board cell balancing, cycle tracking, NFC status readout, 500-cycle design life |
| FPV Camera |
Integrated — 30° upward-angle for real-time pilot awareness |
| Flight Controller |
CubePilot Cube Blue H7 running ArduPilot |
| Ground Control Software |
Inspired Ground Control (IGC) — purpose-built mission planning interface |
| Remote ID |
Integrated, pre-filed FAA Declaration of Compliance |
| Portability |
Foldable carbon frame; entire kit fits in included wheeled SKB hard case |
| Compliance |
Blue UAS (DIU Certified), NDAA Section 848, Green UAS |
| Manufacture |
U.S.-built and supported |

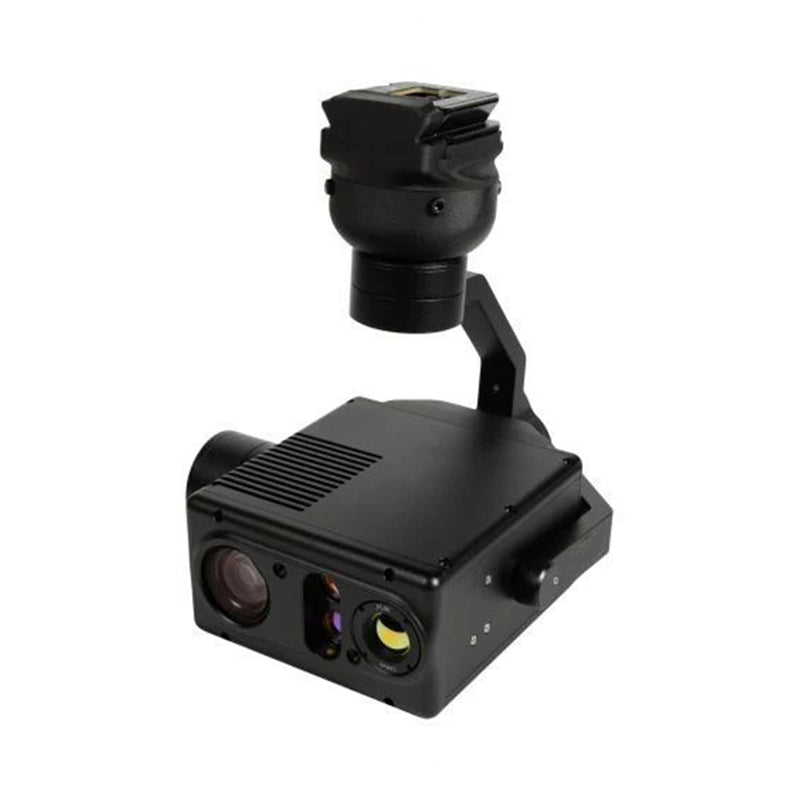

Gremsy VIO EO/IR Payload - Sensor Specifications
| Specification |
Detail |
| EO Camera |
Sony 4K Block Zoom Camera — 8.51 MP |
| Optical Zoom |
20x optical / 30x super-resolution / 240x combined zoom |
| Thermal Camera |
FLIR Boson 640 radiometric thermal sensor |
| Thermal Resolution |
640 × 512 at 60 Hz |
| Thermal Sensitivity |
≤ 50 mK — detects precise temperature differences |
| Thermal Zoom |
1x–8x digital zoom |
| Laser Rangefinder |
0–2400m at 1 Hz / 0–1200m at 10 Hz |
| Rangefinder Accuracy |
0.1–0.5m precision |
| Viewing Modes |
EO only, IR only, EO/IR combined, IR/EO combined |
| AI Features |
Auto object tracking, AI detection (humans, vehicles, boats), Auto-Zoom |
| Geotagging |
GPS coordinates, gimbal attitude, target GPS, camera orientation embedded in imagery |
| Payload Weight |
854g (1.88 lbs) |
| Compliance |
NDAA-compliant, ITAR-free; assembled in the USA |
| Interface |
MAVLink plug-and-play; UART/Ethernet; QGroundControl & Gremsy Payload Assistant app |
What's Included in This Bundle
- 1x Inspired Flight IF800 Tomcat aircraft
- 1x SRoC + DL2450 Radio Ground Control Station
- 1x Gremsy VIO EO/IR payload (Sony 4K + FLIR Boson 640 thermal + laser rangefinder)

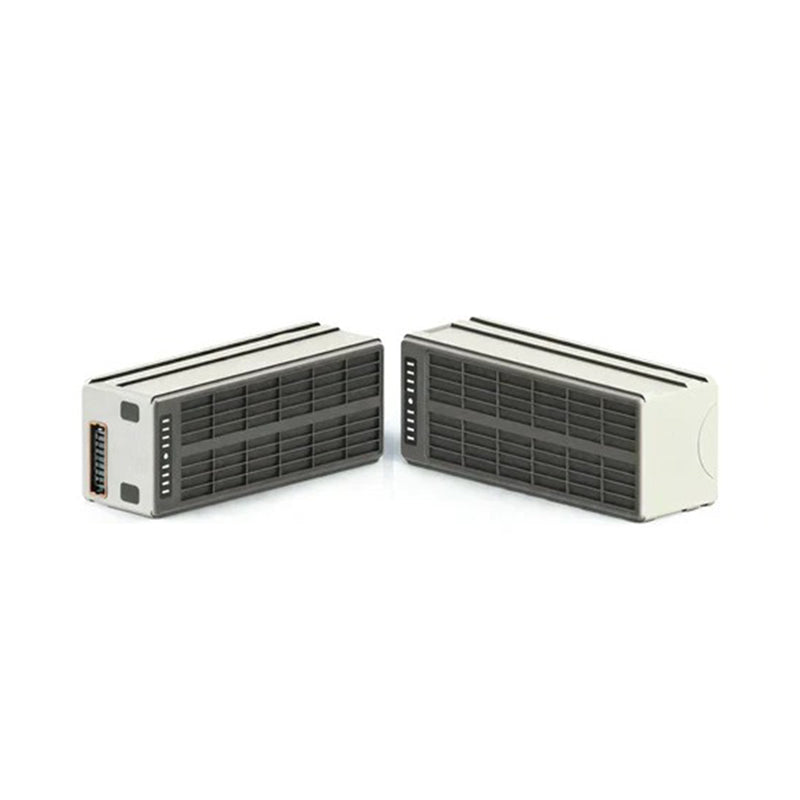

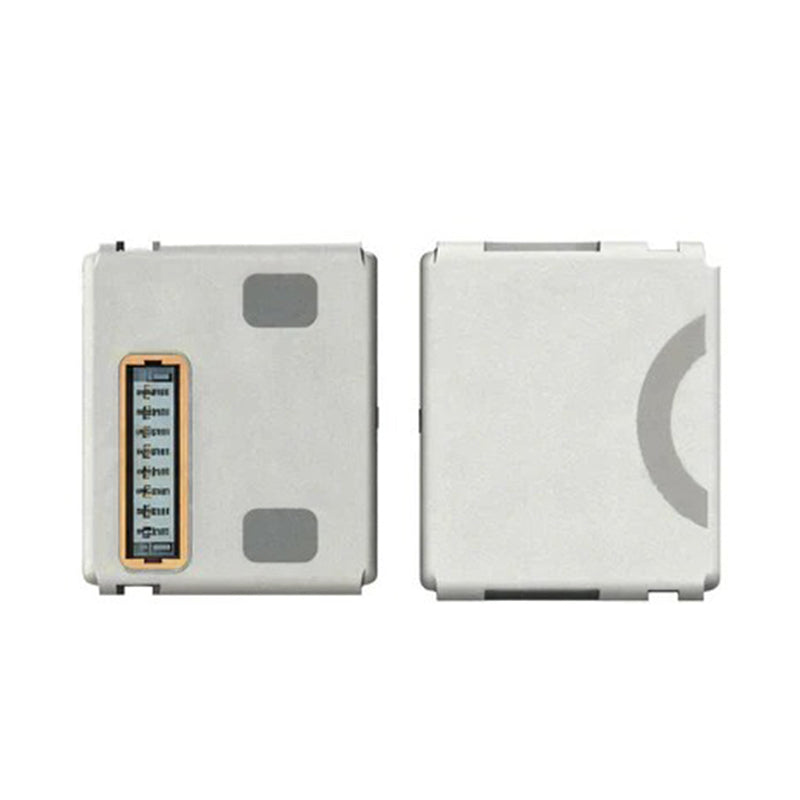

- 2x IB388 hot-swappable smart batteries
- 1x Battery charger
- 1x Rugged wheeled SKB transport case (fits entire kit)
Government & Agency Procurement
The IF800 Tomcat is Blue UAS-listed and NDAA Section 848 compliant — eligible for direct procurement by DoD, DHS, law enforcement agencies, and all federally funded programs. We support government purchase orders, sole-source justification documentation, and fleet pricing for multi-unit deployments.
-
CAGE Code: 15F67
-
DUNS: 13-715-2209
Request a Government Quote
