Mag-Mate Complete Lift Data Sheet- 1,600 lb capacity for robust lifting of flat steel components
- Lateral-action handle makes on/off switching easy, even with gloves
Mag-Mate AL1600 AdvantageLift Magnet
by Mag-Mate
$1,151.54

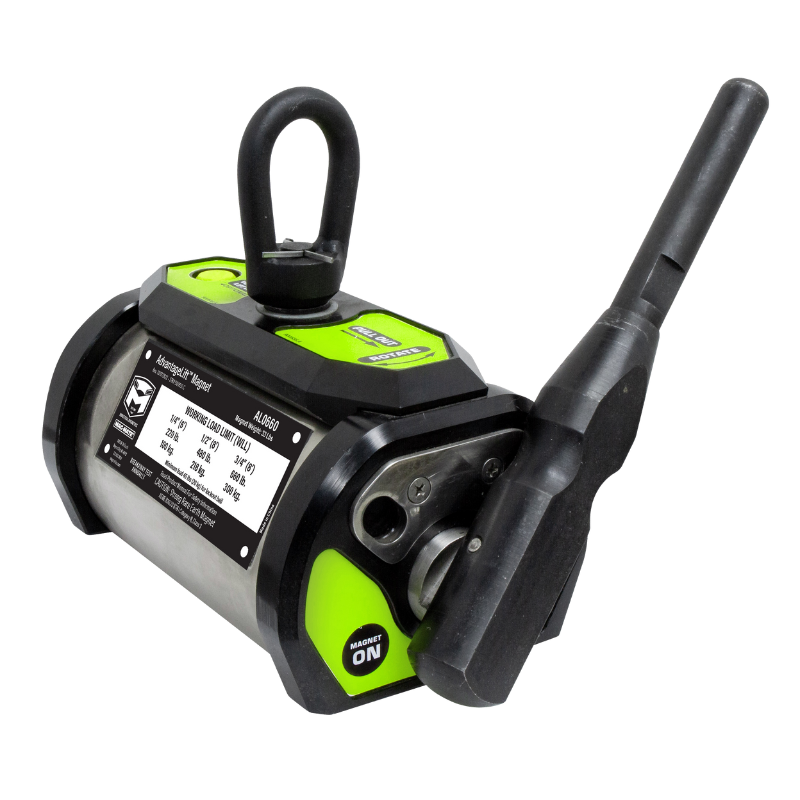

Mag-Mate AL1600 AdvantageLift Magnet
Are you looking for a powerful, permanent rare-earth lifting magnet designed to handle demanding industrial lifting tasks safely and efficiently? The Mag-Mate AdvantageLift AL1600 has a working load limit of 1,600 lb, this on/off magnet is engineered for robust lifting of flat steel surfaces, and it can also lift vertically when used with the optional vertical-lift bail. Its lateral-action handle allows for smooth engagement and disengagement which is ideal for use when gloved or working at awkward angles. Built for durability and safety, this magnet meets stringent industry standards and delivers reliable performance in manufacturing, fabrication, and rigging environments.
Key Features
- 1,600 lb capacity for robust lifting of flat steel components
- Lateral-action handle makes on/off switching easy, even with gloves
- Locked bail prevents dangerous accidental release during lifts
- Swivel bail design allows flexible orientation under crane or hoist
- Durable, nickel-plated housing resists wear and harsh environments
- Certified with a 3:1 design factor and ASME B30.20 / BTH-1 safety compliance
Specifications
| Model | AL1600 |
| Working Load Limit (WLL) | 1,600 lb |
| Magnet Dimensions | Length 13.625″; Width 6.875″; Height 10″ |
| Weight | 80 lb |
| Bail Size | Bail height: ~2.22″; Bail thickness: 0.625″; Bail width: 1.75″ |
| Pole Count | 2 magnetic poles |
| Temperature Range | –10 °F to 180 °F (–23 °C to 82 °C) |
| Design Factor | 3:1 (safety factor) |
Items Included
- AL1600 AdvantageLift Magnet
- Lateral-action locking handle (pre-installed)
- Swivel lift bail (already mounted)
- Test certificate / load-test documentation
- User manual and safety instructions
