- Permanent magnetic lifters engineered for safe handling of steel plates and ferrous materials
- High lifting capacity options: 1,500 lb (CL1500), 2,200 lb (CL2200) and 3,000 lb (CL3000)
- Patented non-marring roller cam release mechanism prevents material surface damage
Mag-Mate Creative Lift Magnets - CL1500 / CL2200 / CL3000
by Mag-Mate
$1,002.48
Mag-Mate Creative Lift Magnets - CL1500 / CL2200 / CL3000
Are you looking for industrial-grade lift magnets designed for handling steel plates, forgings, and other ferrous components without the need for slings, chains, or clamps? Mag-Mate’s Creative Lift® series of permanent magnetic lifters (models CL1500, CL2200, and CL3000) are engineered to safely lift and securely hold flat steel loads which enables a single operator to perform tasks that would otherwise require multiple people. Constructed with durable stainless-steel housings and built for high heat resistance, the Creative Lift® magnets offer reliable performance in demanding manufacturing environments.
Key Features
-
High Load Capacities:
- CL1500 - up to 1,500 lb
- CL2200 - up to 2,200 lb
- CL3000 - up to 3,000 lb
- Non-Marring Roller Cam Release: The patented roller cam mechanism prevents damage to lifted material, ensuring smooth and safe detachment.
- Spring-Return Handle: Ergonomic spring-loaded handle returns automatically for ready operation and minimal torque needed to release the load.
- Dual Release Options: Includes “Jack-Screw” secondary release for additional safety and control under load.
- Robust Construction: Made with stainless-steel casing for durability and built to withstand high temperatures (up to 300°F / 148°C).
- 3:1 Safety Factor: Designed with a 3:1 design factor to ensure safe and reliable lifting performance.
- ASME-Compliant: Conforms to ASME B30.20, BTH-1 Design Category B, Service Class 3.
- RFID-Enabled: (at least for some models) for quick identification and inventory tracking.
Specifications
| Model | Working Load Limit | Length | Width | Height | Weight | No. of Poles |

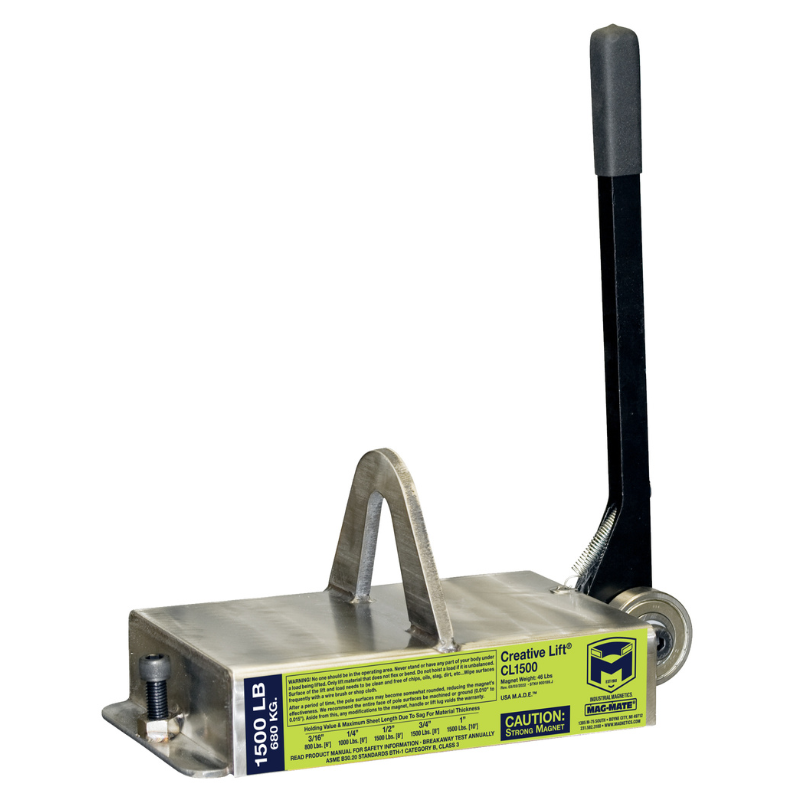

| CL1500 | 1,500 lb / 680 kg | 14-3/4″ | 7-1/4″ | 6-3/4″ | ~46 lb | 12 poles |

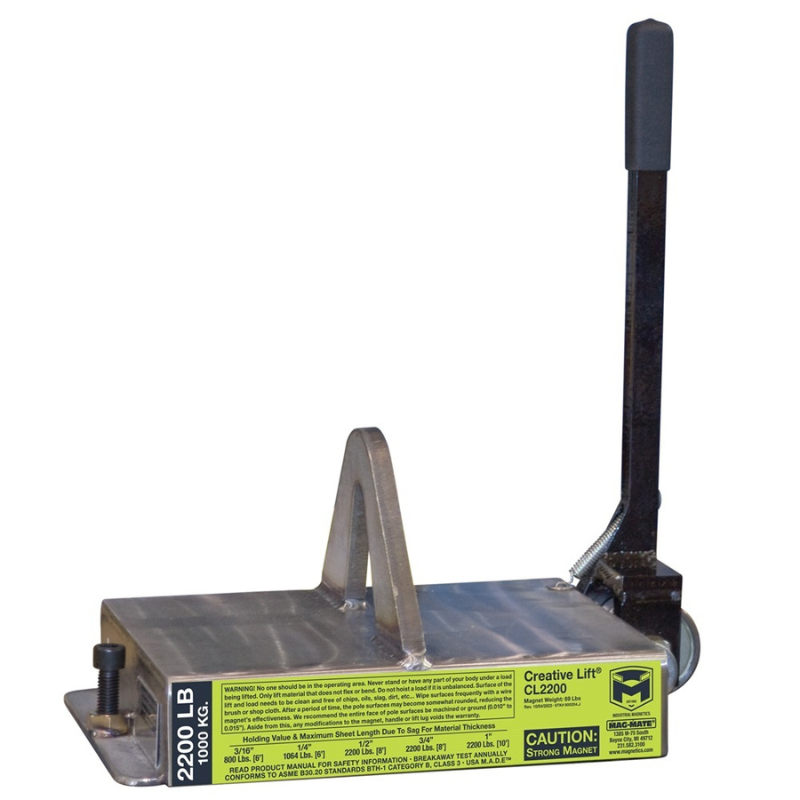

| CL2200 | 2,200 lb / 998 kg | 15″ | 10-1/2″ | 7″ | ~69 lb | 12 poles |

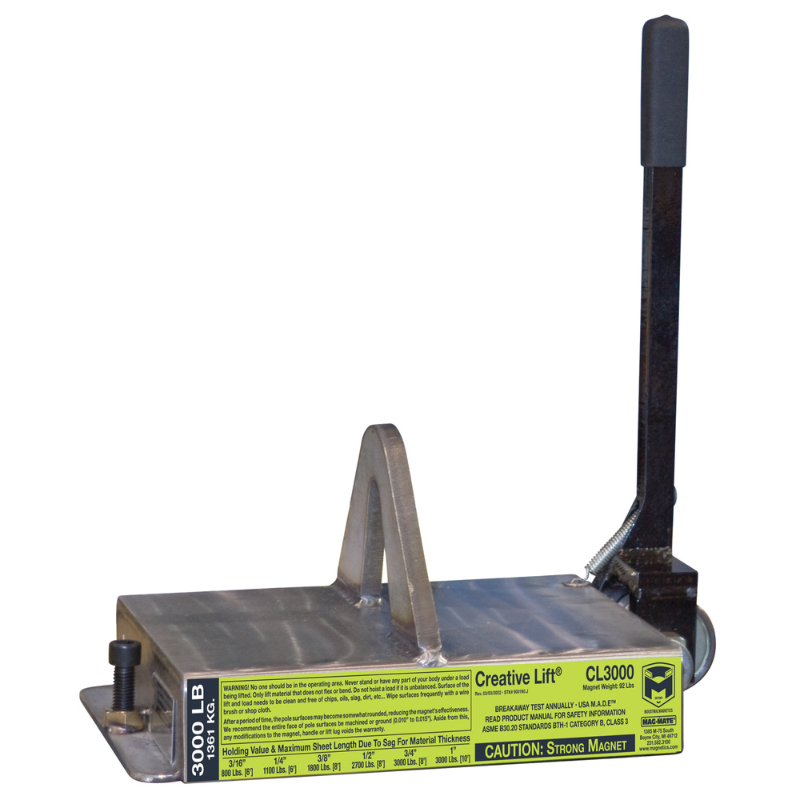

| CL3000 | 3,000 lb / 1,360 kg | 19-1/4″ | 10-1/2″ | 7″ | ~92 lb | 12 poles |
- Heat resistance: up to 300 °F / 148 °C
- Design factor: 3:1
- ASME standard: B30.20, BTH-1, Class 3
Items Included
- The permanent lifting magnet unit itself
- Integrated spring-return handle
- Built-in roller cam release mechanism
- Secondary jack-screw release
Mag-Mate Creative Lift Magnet Manual
Mag-Mate Complete Lift Data Sheet Manual
Mag-Mate CL1500 Creative Lift Magnets CAD Drawing Manual
