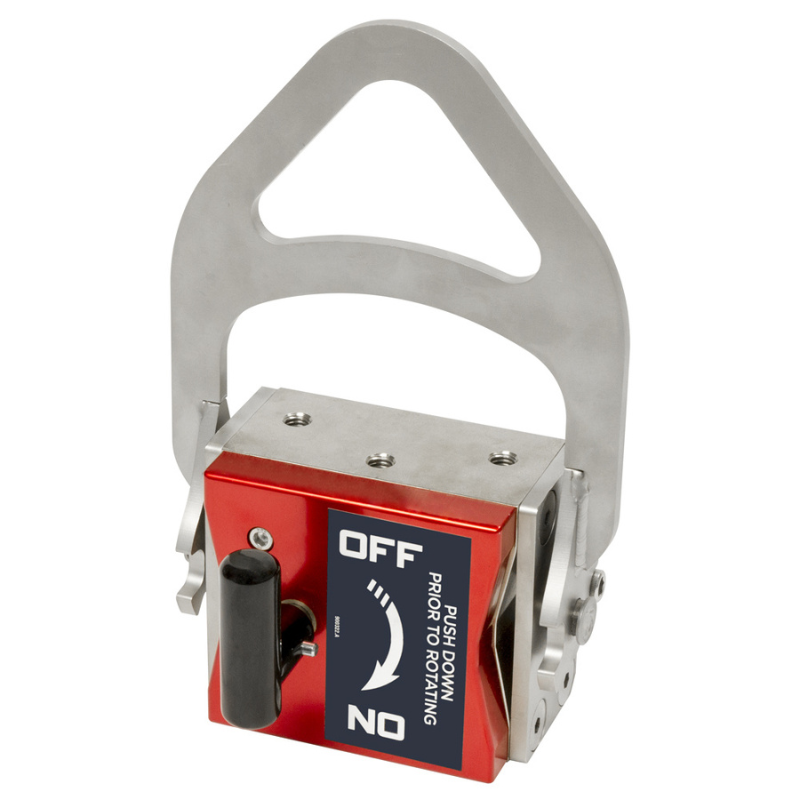

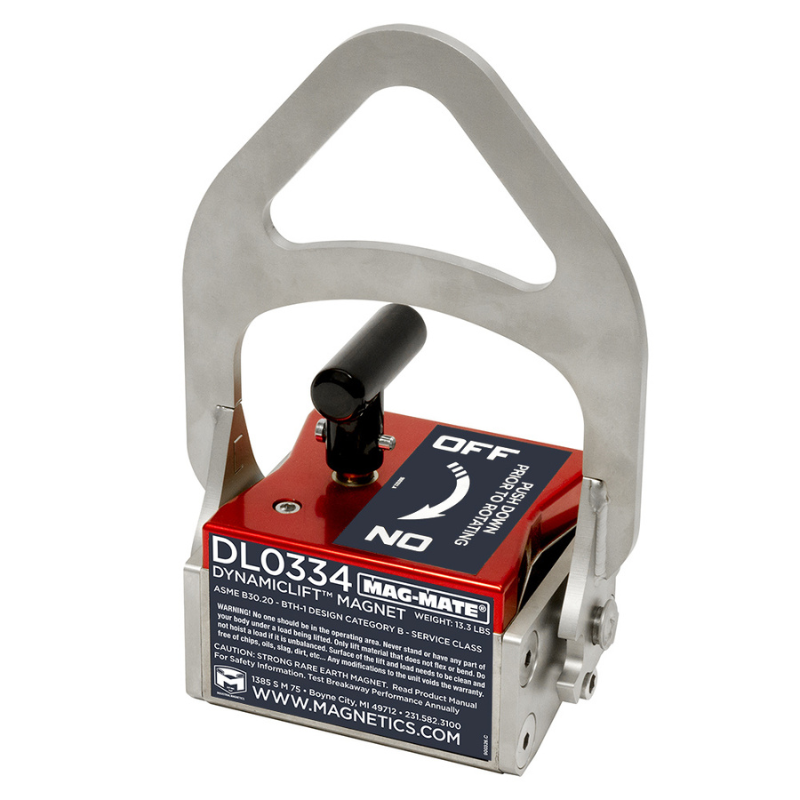

Mag-Mate DL0334 DynamicLift Magnet

Mag-Mate DL0334 DynamicLift Magnet

Are you looking for a high-performance, rare-earth permanent lifting magnet designed for industrial material handling? The Mag-Mate DynamicLift Magnet DL0334 has a 334 lb (approx. 151.5 kg) working load limit, this compact on/off magnet enables safe and efficient lifting of flat or round steel workpieces whether horizontally or, for flat parts, vertically. Its locking handle, internal release design, and rugged construction make it a dependable choice for fabrication shops, warehouses, and maintenance operations.

Key Features

• 334 lb rated lifting capacity for reliable performance on moderate loads.
• On/off rare-earth magnet design, activated via a top-rotating locking handle for secure control.
• Lifts flat or round surfaces horizontally, and flat surfaces vertically making it versatile for a variety of parts.
• Internal manual release that does not contact or mar the surface of the lifted part.
• Heat-resistant up to 180°F (82°C) for use in moderately hot industrial environments.
• 3:1 design factor for safety and strength in lifting.
• Complies with ASME B30.20 BTH-1, Design Category B, Service Class 3.
• Large swivel lift lug for easy attachment to hoists or cranes.
• Compact magnet size (approx. 4-1/4″ L × 4″ W × 3″ H) makes it suited for tight areas.

Specifications

Items Included

• The DL0334 DynamicLift Magnet itself
• Locking on/off handle (integrated)
• Swivel lift lug (pre-mounted)
• Operation & safety manual (with certification and test data)
