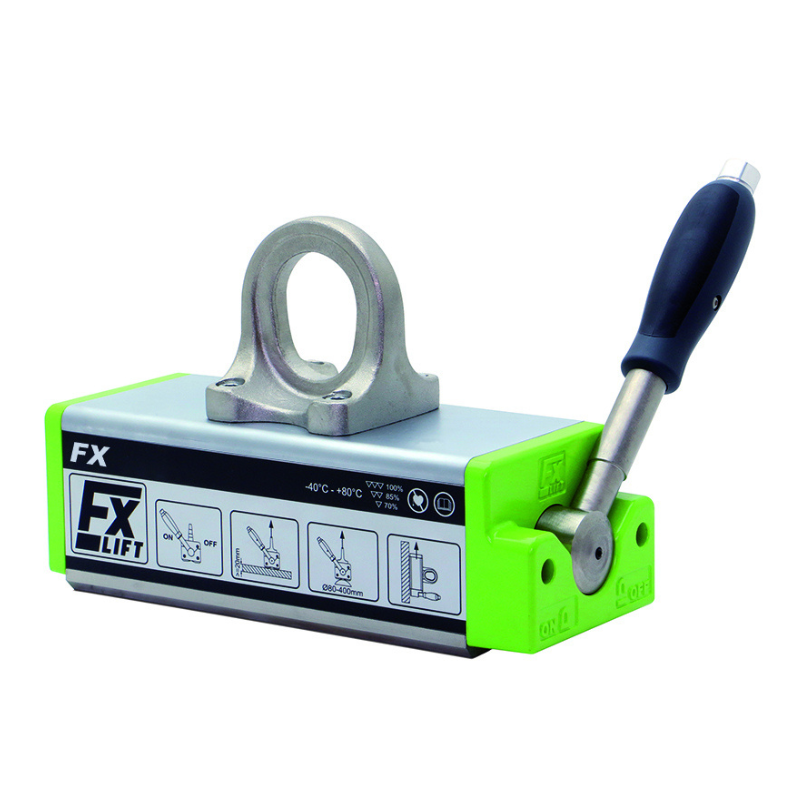

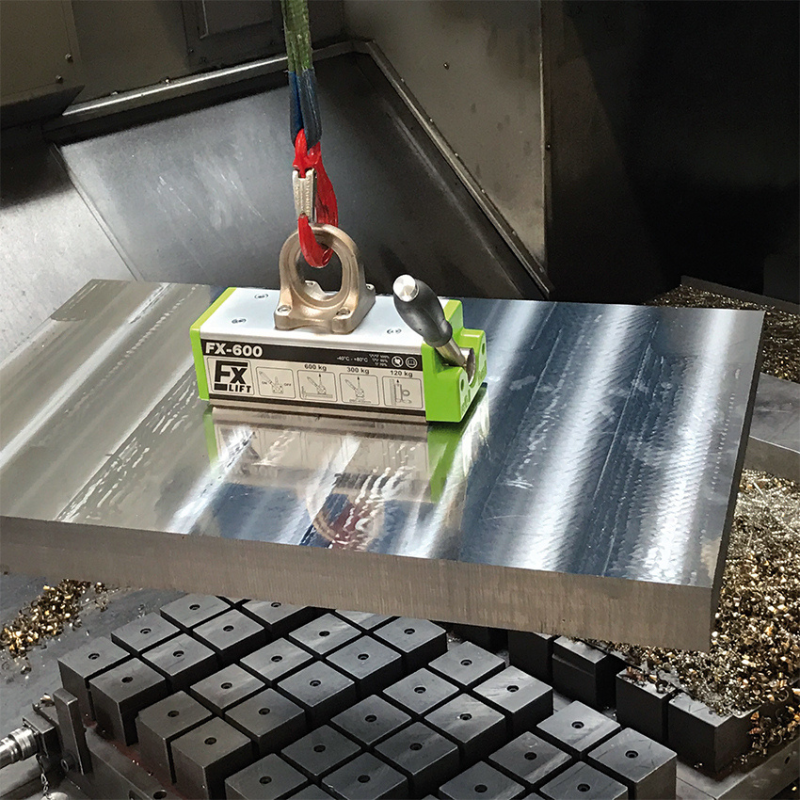

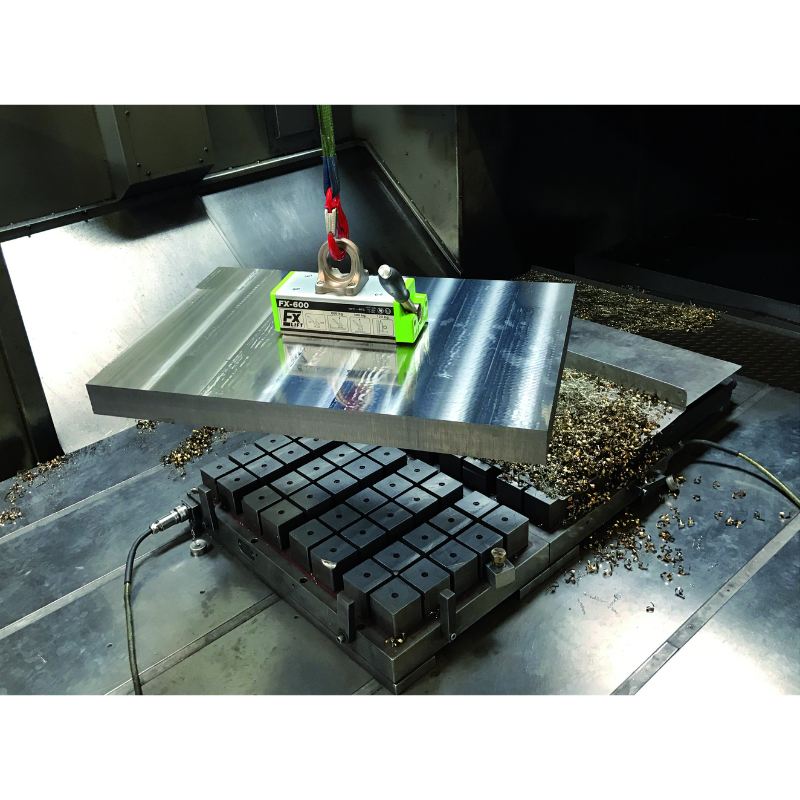

Are you looking for a versatile range of rare-earth, on/off permanent magnets engineered for lifting both flat steel plates and round steel components? The Mag-Mate Flaig FX Universal Lift Magnet series has models spanning from 900 lb (FX0900) up to 6,600 lb (FX6600) working load limits, these magnets combine compact design, strong magnetic force, and reliable industrial-grade construction. Their 90° locking handle makes engaging and disengaging fast and safe, while built-in safety features and ASME B30.20 certification ensure dependable performance in steel fabrication, machine shops, and material handling applications.
Key Features
Wide Load Range: Models available for loads from 900 lb (≈ 408 kg) to 6,600 lb (≈ 2,994 kg) for flexible application.
Universal Design: Effective for both flat plates and curved/round materials thanks to well-spaced magnetic poles.
On/Off Locking Handle: 90° rotation handle locks securely on and off for safe operation.
Corrosion-Resistant Construction: Nickel-plated magnetic surface and durable body resist wear and environmental degradation.
Heat Resistant: Rated for continuous use up to approximately 180°F (82°C) for rugged industrial use.
Safety Certified: 3:1 design factor and compliant with ASME B30.20 / BTH-1 Design Category B, Service Class 3.
Specifications
Model
Working Load (Flat)
Length
Magnet Height
Handle Length
Weight
Mag‑Mate FX0900
900 lb
10.4 in
3.1 in
7.8 in
25 lb
Mag‑Mate FX1320
1,320 lb
11.3 in
3.7 in
9 in
42 lb
Mag‑Mate FX2200
2,200 lb
14.2 in
4.7 in
10.2 in
93 lb
Mag‑Mate FX4400
4,400 lb
18.5 in
6.6 in
16.1 in
254 lb
Mag‑Mate FX6600
6,600 lb
25.5 in
6.6 in
21 in
366 lb
Items Included
The FX lift magnet unit
Swivel bail / lift lug (pre-mounted) for hooking to crane or hoist
On/off locking handle (90° rotation)
Test certificate and load-test documentation
User manual / safety instructions
