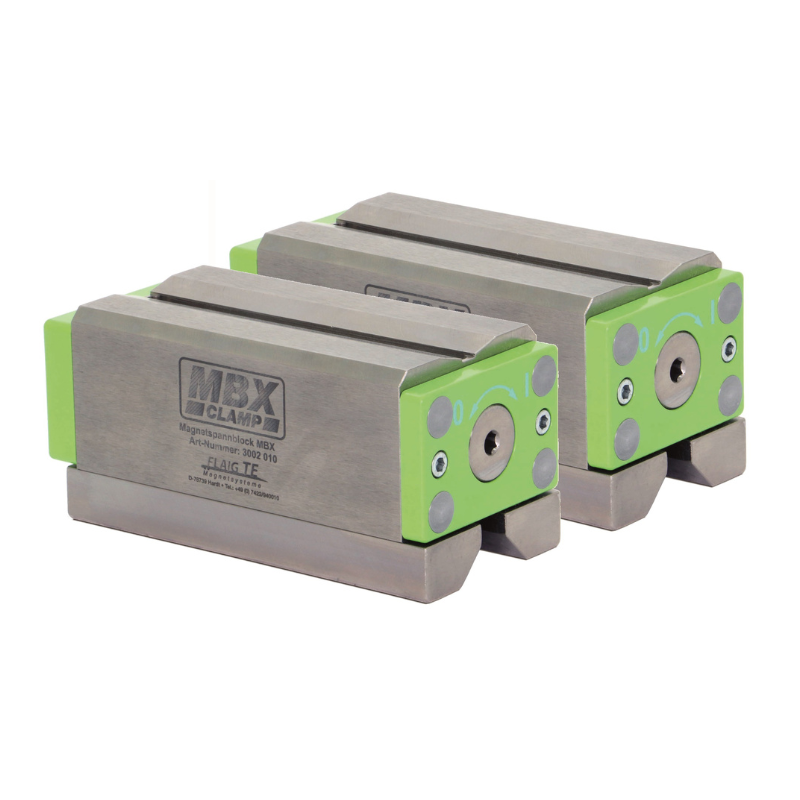

Mag-Mate Magnetic Clamping Blocks
by Mag-Mate
$1,021.76
Mag-Mate Magnetic Clamping Blocks

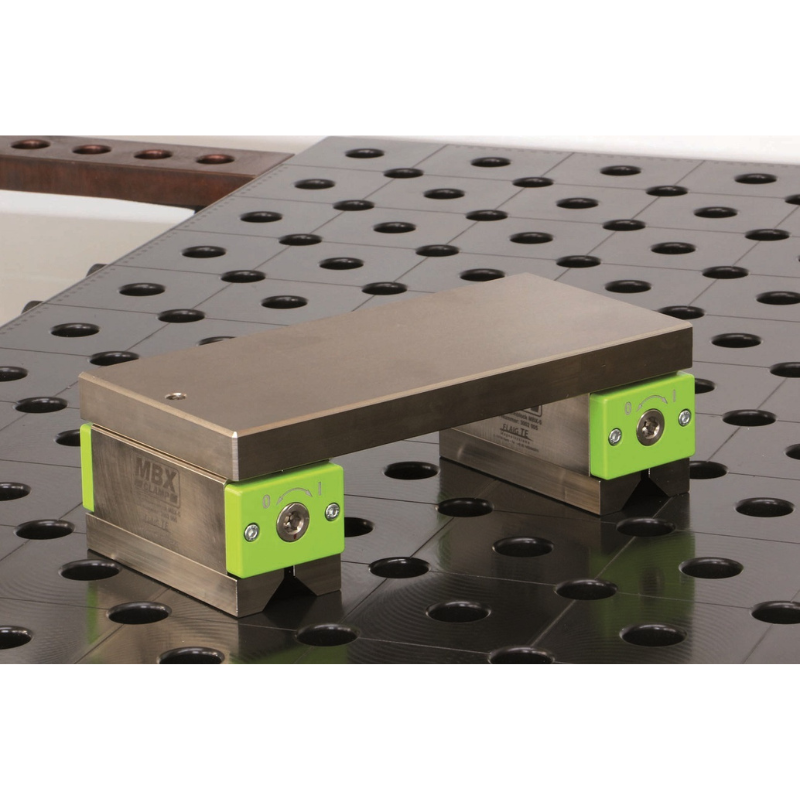

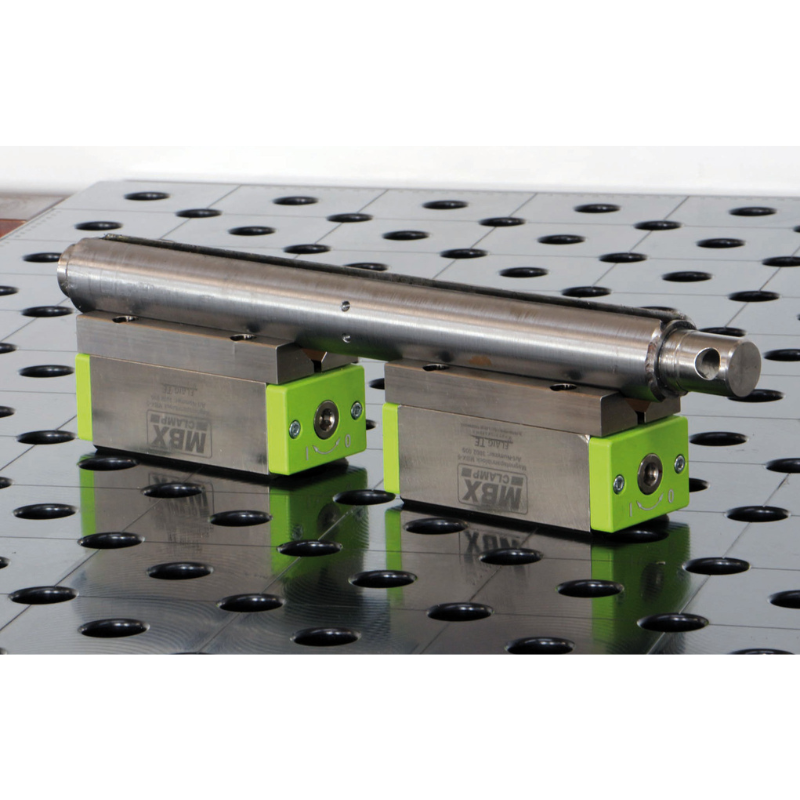

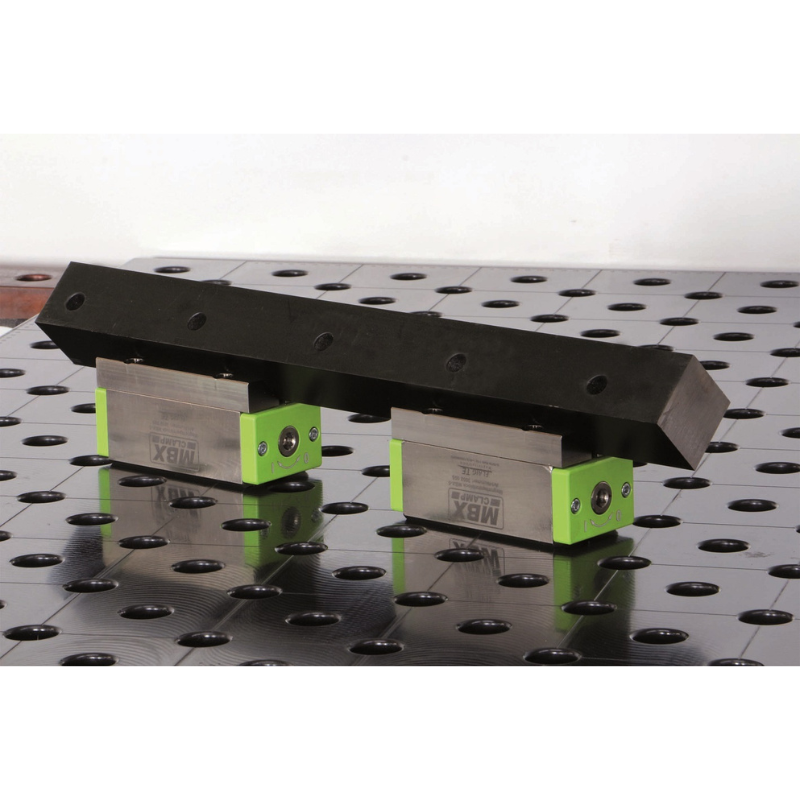

Are you looking for a rugged, on/off magnetic V-blocks designed to securely clamp flat, round, square, or angled steel parts during welding, machining, tapping, deburring, or inspection? Mag-Mate’s MBX Magnetic Clamping Blocks (models MBX05PK2, MBX07PK2, and MBX10PK2) have two opposing magnetic faces that can be switched on and off via a 90° rotation of the internal shaft, plus a third vertical clamping side, these blocks provide flexible, five-sided workholding while minimizing setup time. The nickel-plated housing resists wear and the units can be linked for longer or more complex fixturing.
Key Features

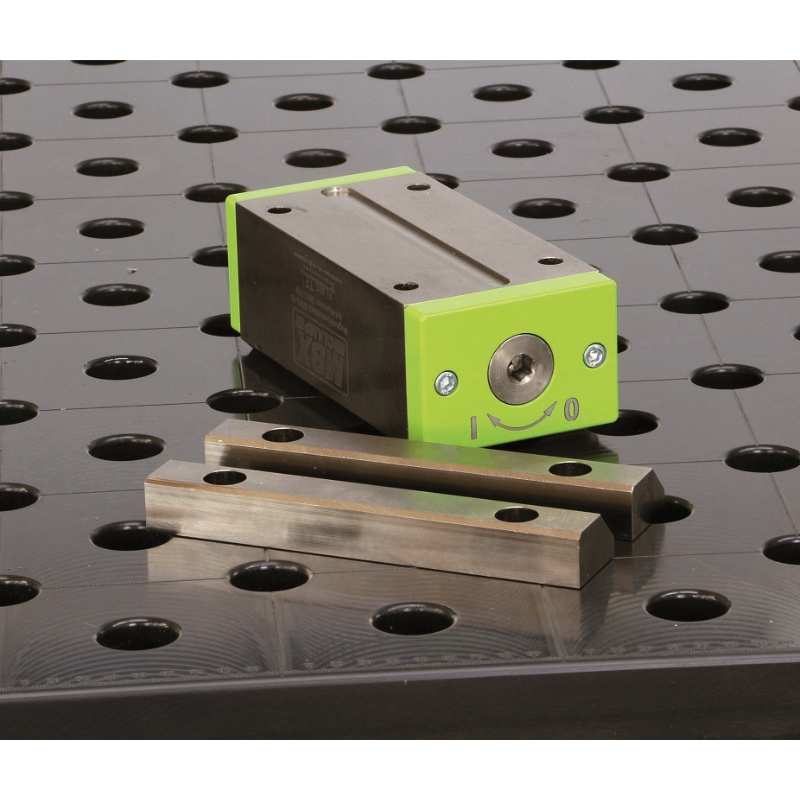

- Dual on/off magnetic surfaces — activate both clamping sides with a simple 90° rotation.
- Third vertical clamping face for workpieces that require upright positioning.

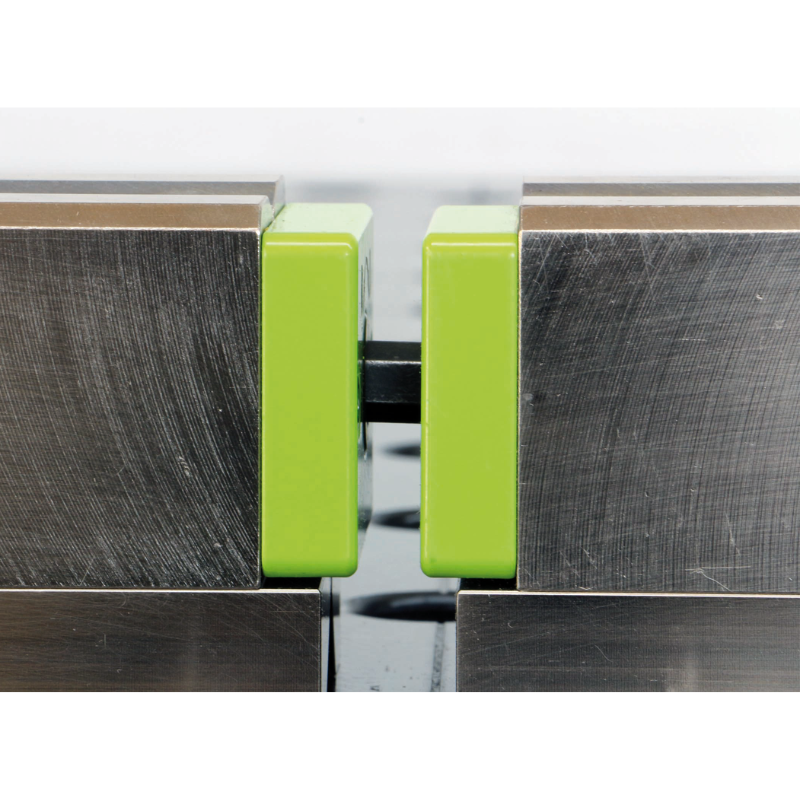

- Switchable via hex key — can be daisy-chained using a hex link rod for longer setups (rod not included).
- Nickel-plated housing for corrosion resistance and long-term durability.
- High holding forces (depending on model):
- MBX05PK2: 1,125 lb
- MBX07PK2: 1,575 lb
- MBX10PK2: 2,250 lb
- Compact and modular design — two blocks per pack, with options to expand workholding capacity.
Specifications
| Model | Break-away Force (Top / Bottom) | Length (L) | Height (H) | Width (W) | Weight (per block) |
| MBX05PK2 | 1,125 lb / 320 lb | 5.63″ (143 mm) | 2.80″ (71 mm) | 2.52″ (64 mm) | 8.6 lb (3.9 kg) |
| MBX07PK2 | 1,575 lb / 370 lb | 7.01″ (178 mm) | 2.80″ (71 mm) | 2.52″ (64 mm) | 10.8 lb (4.9 kg) |
| MBX10PK2 | 2,250 lb / 600 lb | 7.24″ (184 mm) | 3.43″ (87 mm) | 3.43″ (87 mm) | 19.4 lb (8.8 kg) |
Items Included
- Two (2) Magnetic Clamping Blocks (model MBX05PK2 or MBX07PK2 or MBX10PK2)
- Hex “switch” key for rotating the magnetic faces on or off
- Test certificate / quality document (as included by the manufacturer)
- Instruction & safety manual, including usage and cautions
