Mag-Mate Complete Lift Data Sheet- High-capacity lift for hefty steel plates — 1,600 lb or 2,500 lb models.
- On/off locking handle prevents accidental disengagement.
Mag-Mate PowerLift Magnet
by Mag-Mate
$1,137.48

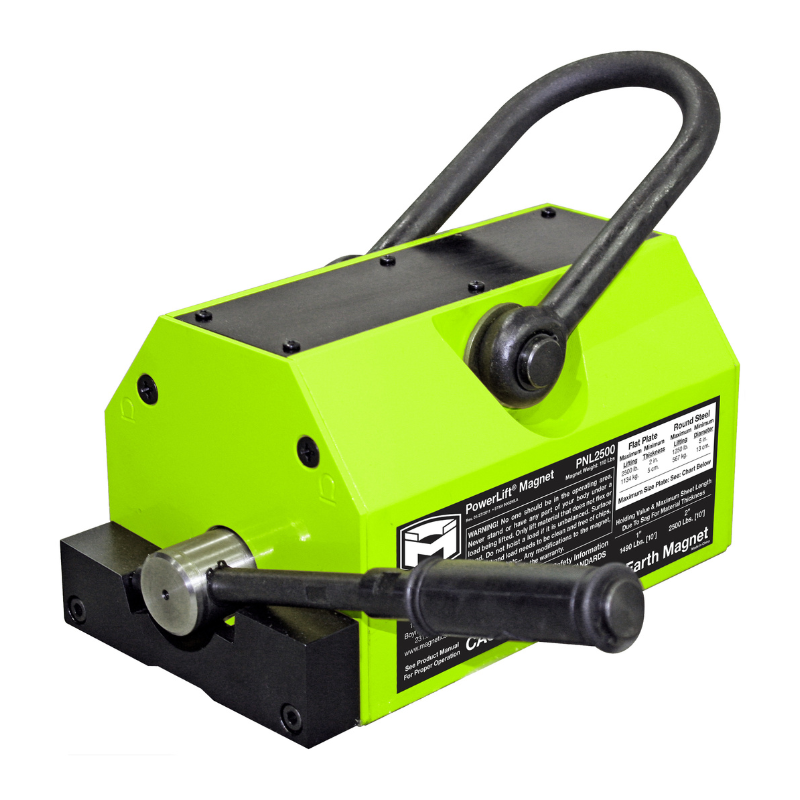

Mag-Mate PowerLift Magnet
Are you looking for a rugged, on/off rare-earth lifting magnets engineered to safely lift and transport heavy ferrous loads without power? The Mag‑Mate PowerLift PNL1600 and Mag‑Mate PowerLift PNL2500 are designed for industrial rigging, fabrication, and material handling, these compact but powerful lifts reduce the risk of accidental drop by using a locking handle and provide consistent performance over time, even under high-heat conditions.
Key Features
- High-capacity lift for hefty steel plates — 1,600 lb or 2,500 lb models.
- On/off locking handle prevents accidental disengagement.
- Internal release mechanism safeguards the material’s surface.
- Compact rare-earth build offers excellent magnetic force in a small footprint.
- Heat-tolerant up to 180°F, suited for industrial environments.
- Certified safe with 3:1 design factor and ASME B30.20 / BTH-1 compliance.
Specifications
| Specification | PNL1600 | PNL2500 |
| Working Load Limit (WLL) | 1,600 lb (flat) / 800 lb (round) | 2,500 lb (flat) / 1,250 lb (round) |
| Overall Length | 10.75 in | 12.63 in |
| Magnet Height | 4.75 in | 6.50 in |
| Magnet Width | 4.875 in | 7.125 in |
| Handle Length | 9 in | 10.75 in |
| Weight | 51 lb | ~122 lb |
Items Included
- PowerLift Magnet (either PNL1600 or PNL2500)
- Locking on/off handle (pre-fixed)
- Swivel lifting bail / shackle
- Safety and load-test certificate
- User operation & safety manual
