Mahr 107 MarStand Underframe

Mahr 107 MarStand Underframe

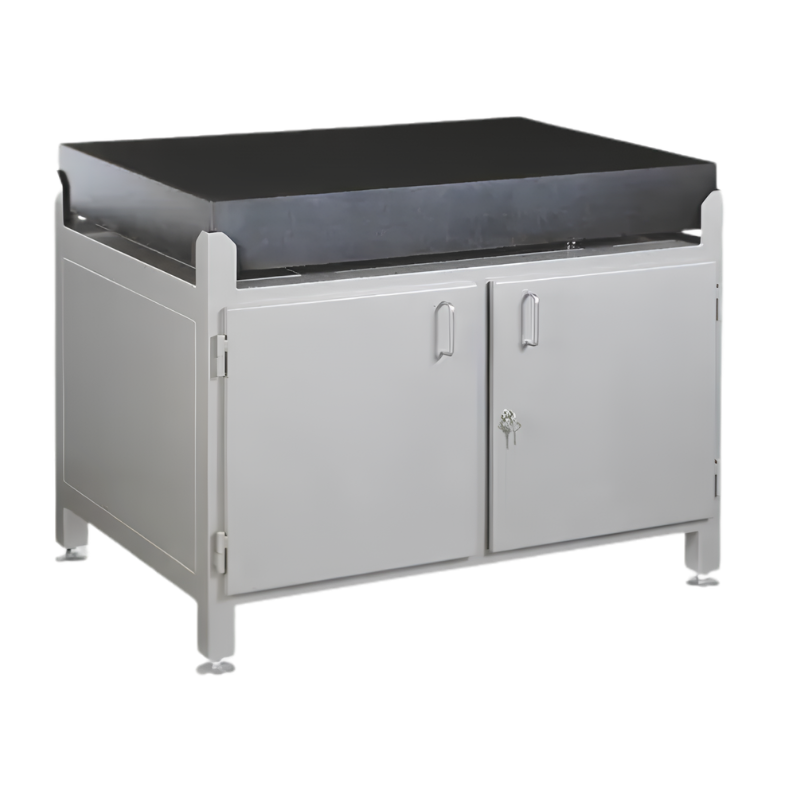

The Mahr MarStand 107 is the purpose-designed underframe and cabinet stand for the Mahr MarStand 107 granite surface plate series, providing the structural support, three-point leveling, and ergonomic working height that every 107 G plate from 630mm and above requires for stable, accurate measurement use. Extremely sturdy design due to the rectangular tubes, the 107 is built as an enclosed cabinet giving the installation a clean, professional appearance while providing the enclosed underframe space for accessory and tool storage directly at the measurement station.

The 107 is available in five sizes, each matched to a specific 107 plate footprint: 630×400mm, 630×630mm, 800×500mm, 1000×630mm, and 1200×800mm. Each frame size is engineered to the weight and footprint of its corresponding plate, and the 900–1000mm height-adjustable range brings the plate working surface to ergonomic standing height for operators of different statures without requiring shims, leveling blocks, or workbench modifications.

The leveling system uses three height-adjustable support points, a kinematically correct three-point contact arrangement that defines the plate's plane without over-constraining it. Three-point support eliminates the rocking and instability inherent to four-point and flat-surface support schemes, ensures the plate can be leveled independently of floor flatness and floor levelness, and guarantees that no twisting or bending forces are introduced into the granite body through the stand contact points which would distort the plate's certified flatness. For plate sizes that are greater than 1000 mm, two additional height adjustable supports are required to prevent tilting. These additional supports for large-format plates (available separately) prevent long-span overhang deflection under load without introducing measurement-distorting over-constraint. All 4 corners have a support to prevent slipping and to protect against a collision, adding resistance to lateral displacement and providing impact protection for the base of the stand and the bottom edges of the plate.

The 107 is the enclosed cabinet variant of the Mahr surface plate underframe range. For installations where the enclosed storage and cabinet-style appearance of the 107 are not required, the open frame 107 variant provides the same three-point leveling and structural support in a simpler, lighter open-frame construction. The 107adjustable plate supports are the correct choice for smaller plates (up to 400mm short dimension) intended for workbench use rather than stand mounting.

Key Features

• Rectangular Tube Enclosed Cabinet Construction - The 107 frame is built from rectangular structural tubes covered with sheet metal panels, creating an enclosed cabinet configuration that provides the high bending and torsional stiffness required to support 107 G granite plates ranging from ~60kg (630×400mm) to ~430kg (1200×800mm) without frame deflection under sustained measurement loads and delivering a clean, enclosed appearance suited to quality control rooms and precision inspection environments.
• Three-Point Height-Adjustable Leveling - Three height-adjustable contact points define the plate's support plane without over-constraining it, enabling the stand to be leveled independently of floor flatness, floor levelness, and workbench surface condition; this three-point kinematic configuration ensures that no twisting, bending, or asymmetric loading forces are transmitted into the granite body through the stand which would deform the plate away from its DIN 876 certified flatness and invalidate the measurement reference the plate provides.
• 900–1000mm Adjustable Working Height for Ergonomic Standing Measurement Position - The 107 height-adjustable range of 900–1000mm (35.4"–39.4") brings the granite working surface to a comfortable standing measurement height for the full range of operator statures, eliminating the fatigue, posture degradation, and measurement consistency reduction that come from working at improperly set datum surface heights over a full inspection shift without requiring workbench modification, shim stacking, or site-specific custom fabrication.
• Four Corner Anti-Slip and Anti-Collision Supports - Corner supports at all four base positions prevent lateral sliding of the stand under measurement loads and incidental contact forces, and provide impact protection for the cabinet base and the bottom edges of the granite plate against the cart traffic, part handling, and incidental impacts that are unavoidable in active production and inspection environments protecting the significant investment in the 107 granite plate itself from impact damage at the most vulnerable perimeter edges.
• Five Stand Sizes Matched to 107 G Plate Footprints - Each 107 Ug size is dimensionally and structurally matched to its corresponding 107 G granite plate: 630×400mm, 630×630mm, 800×500mm, 1000×630mm, and 1200×800mm ensuring correct plate overhang geometry, support point positioning at the DIN 876 recommended contact locations, and load rating appropriate to the plate's actual weight; selecting the matched stand size is required to maintain the plate's certified flatness under load and to qualify the installation for recalibration to the original DIN 876 tolerance class.
• Enclosed Cabinet Base Integrated Accessory and Tool Storage at the Measurement Station - The 107 Ug's enclosed cabinet construction provides usable internal storage space directly below the granite plate for height gages, gage blocks, setting masters, surface plate cleaning supplies, and ancillary measuring instruments keeping all measurement-station tooling organized and at arm's reach without requiring separate storage furniture, reducing station footprint, and preventing the instrument exposure and damage risks associated with open-shelf or benchtop storage in production areas.

Specifications

Items Included

• Mahr MarStand 107 underframe (plate size as specified)
