Mahr 6910232 Marsurf PS10 Set Data Sheet- High-precision 5 µm diamond probe for accurate roughness measurement
- Large backlit display with clear numeric and graphical results
- Large backlit display with clear numeric and graphical results
- Standards-compliant measurements (ISO, DIN, JIS, ANSI)
- Simple one-button operation for fast testing
Mahr 6910232 Marsurf PS10 Set w/ 5UM Probe
by Mahr
$3,240.00

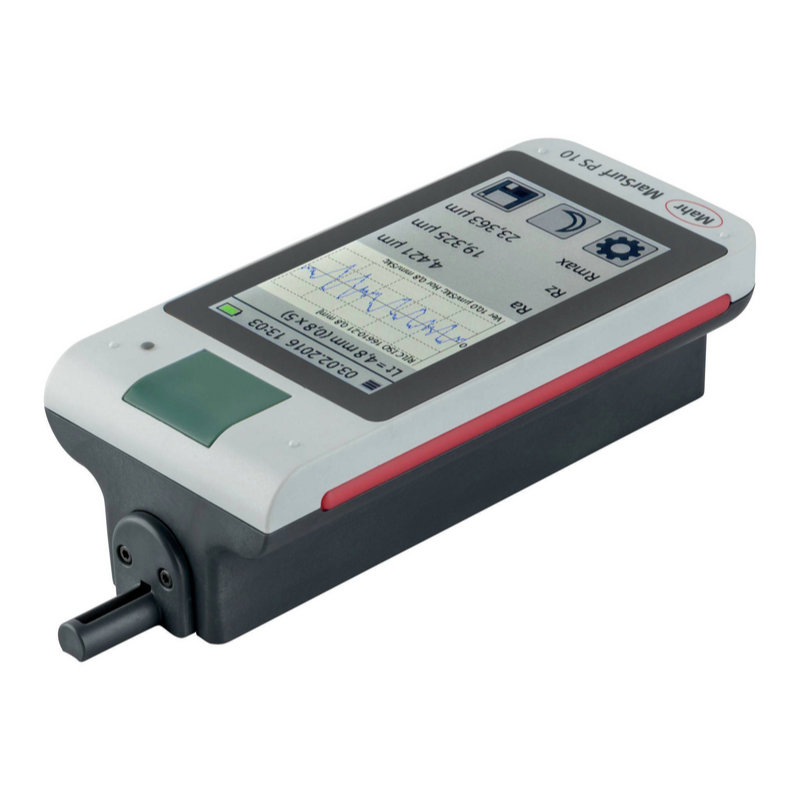

Mahr 6910232 Marsurf PS10 Set w/ 5UM Probe
The Mahr 6910232 MarSurf PS 10 Surface Roughness Tester Set is a compact, high-precision portable instrument designed for fast and reliable surface roughness measurements in production, inspection, and quality control environments. Equipped with a 5 µm diamond probe, the MarSurf PS 10 delivers accurate Ra, Rz, Rq, and additional roughness parameters in compliance with international standards. Its intuitive operation, large illuminated display, and rugged housing make it ideal for shop-floor use and mobile applications.
Key Features
- High-precision 5 µm diamond probe for accurate roughness measurement
- Large backlit display with clear numeric and graphical results
- Large backlit display with clear numeric and graphical results
- Standards-compliant measurements (ISO, DIN, JIS, ANSI)
- Simple one-button operation for fast testing
Specifications
| Model | MarSurf PS 10 (6910232) |
| Probe Tip Radius | 5 µm diamond |
| Measuring Parameters | Ra, Rz, Rq, Rt, Rp, Rv (and more) |
| Measuring Range | Up to ±200 µm |
| Cutoff Lengths | 0.25 mm, 0.8 mm, 2.5 mm |
| Standards | ISO, DIN, JIS, ANSI |
| Display | Backlit LCD |
| Power Supply | Rechargeable battery |
| Application | Surface roughness testing |
Items Included
- Mahr MarSurf PS 10 portable roughness tester
- 5 µm diamond probe
- Calibration standard (reference specimen)
- Charger / power supply
- Protective carrying case
- Instruction manual and calibration documentation
