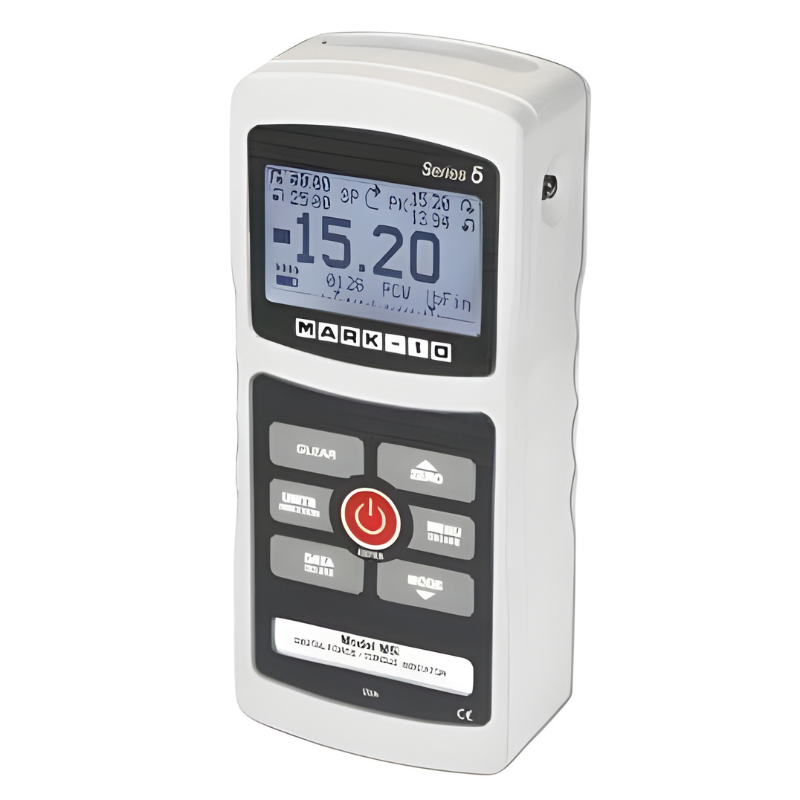

Mark-10 Model 5i Force/Torque Indicator (M5i)

Mark-10 Model 5i Force/Torque Indicator (M5i)

by Mark-10
Have a question?

Call/Text Gustavo before you buy.

I personally review every order and I'm happy to answer questions about compatibility, specs, or lead times. Don't guess - let's get it right the first time.

Call / Text 617-398-7852 Email support@precisionengineeringsupply.com
Gustavo
Founder, Precision Engineering Supply
Available Mon – Fri
Authorized Dealer
100% Authentic Products
Fast Shipping
Most Products Ship Same Day
Easy Returns
30-Day Return Policy (Excludes Made To Order Items)
Secure Checkout
SSL Encrypted Payment
$1,025.00
  • Outputs: USB, RS-232 (up to 115,200 baud), Mitutoyo SPC, analog ±1 VDC
  • Overload & Weight: 150% safe overload capacity; lightweight at 0.7 lb (0.3 kg)Power: AC adapter or rechargeable battery with auto shutoff & low battery indicator
  • Sampling Rate: 7,000 Hz for capturing fast force events
  • Power: AC adapter or rechargeable battery with auto shutoff & low battery indicator
  • Battery Life: Up to 7 hrs (backlight on) / 24 hrs (backlight off)
  • Outputs: USB, RS-232 (up to 115,200 baud), Mitutoyo SPC, analog ±1 VDC
Customers rate us 4.5/5 based on 49 reviews.

Mark-10 Model 5i Force/Torque Indicator (M5i)

$1,025.00

Description

Mark-10 Model 5i Force/Torque Indicator (M5i)

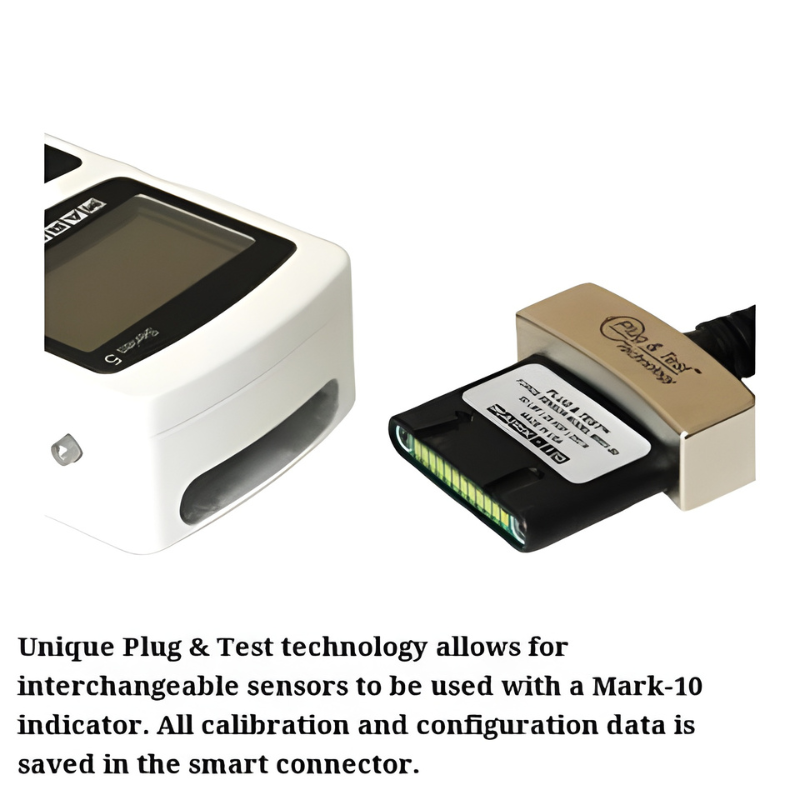

The Mark-10 Model 5i Force/Torque Indicator (M5i) is engineered for seamless compatibility with Mark-10 remote force and torque sensors. Featuring innovative Plug & Test™ (PTA) technology, calibration and configuration data are stored directly within the smart connector. This allows users to quickly interchange sensors of varying types and capacities without the need for recalibration or manual reconfiguration—saving time and ensuring measurement accuracy.

An intuitive menu structure makes setup and adjustments simple and efficient. Measurement data can be transmitted to a PC, PLC, or data collector through multiple output options, including USB, RS-232, Mitutoyo (Digimatic), and analog outputs, providing flexible integration into any quality or production environment.

The indicator includes MESUR™ Lite data acquisition software, enabling easy data capture and one-click export to Excel for further analysis and reporting.



Key Features

  • Compatible with Mark-10 Plug & Test® force and torque sensors
  • High-speed sampling rate up to 7,000 Hz
  • Onboard data storage and statistical calculations
  • USB, Ethernet, and RS-232 communication outputs
  • Programmable set points with pass/fail indicators



Specifications

Manufacturer Mark-10
Model 5i (M5i)
Product Type Force/Torque Indicator
Display 7-inch color touchscreen
Sampling Rate Up to 7,000 Hz
Compatible Sensors Mark-10 Plug & Test® sensors
Measurement Types Force & Torque
Data Storage Internal memory with export capability
Communication Outputs USB, RS-232, Ethernet
Set Points Programmable with pass/fail indicators
Power Supply Rechargeable battery / AC adapter
Applications QC, R&D, production testing



Items Included

  • Mark-10 Model 5i indicator
  • Rechargeable battery
  • AC power adapter/charger
  • USB cable
  • Calibration certificate
  • Manufacturer documentation

Sensors sold separately.



INSIZE ISHW-L20B Webster Hardness Tester ManualMark-10 Model 5i Force/Torque Indicator (M5i) Data Sheet

INSIZE ISHW-L20B Webster Hardness Tester ManualMark-10 Model 5i Force/Torque Indicator (M5i) User Manual

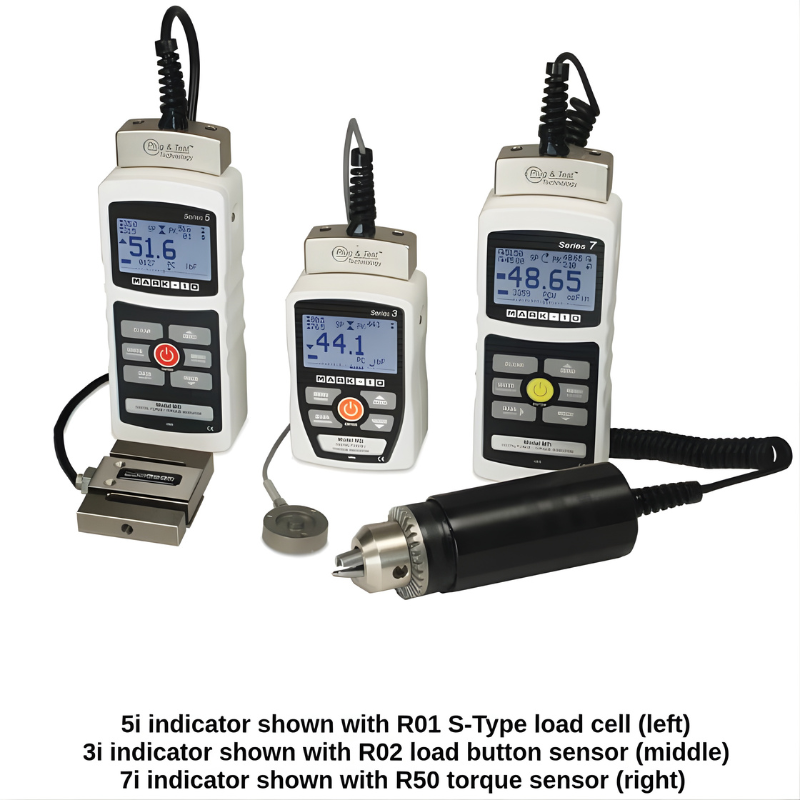

INSIZE ISHW-L20B Webster Hardness Tester ManualMark-10 Model Force/Torque Indicator Comparison
