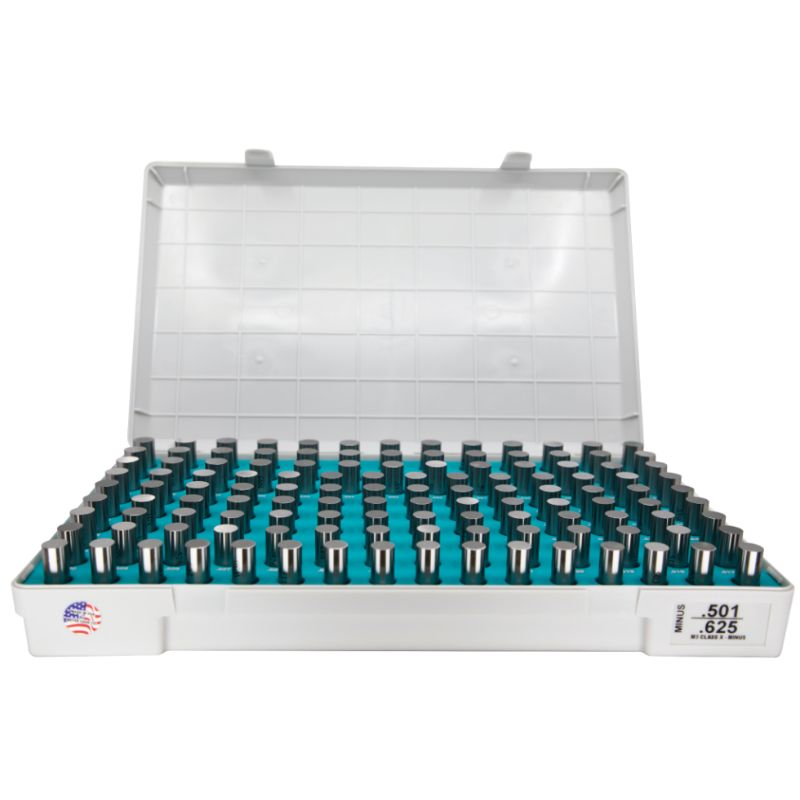

Meyer Gage Class X Pin Gage Sets deliver ultra-high precision for master measurement, calibration, and critical inspection applications. Manufactured to Class X tolerances, these pin gages are precision ground and lapped to provide exceptional size accuracy and consistency. Ideal for metrology labs, calibration departments, and high-precision manufacturing, each set is clearly marked and organized for fast, reliable hole size verification and dimensional control.
| Class X Sets | ||||
| Item ID | Tolerance Direction | Size Range | No. of Gages | Weight (lbs.) |
| C10XP | Plus | 0.011" to 0.250" | 240 | 7 |
| C10XM | Minus | 240 | 7 | |
| C105XP | Plus | 0.0115" to 0.2505" | 240 | 7 |
| C105XM | Minus | 240 | 7 | |
| M1XP | Plus | 0.061" to 0.250" | 190 | 7 |
| M1XM | Minus | 190 | 7 | |
| M15XP | Plus | 0.0615" to 0.2505" | 190 | 7 |
| M15XM | Minus | 190 | 7 | |
| M2XP | Plus | 0.251" to 0.500" | 250 | 23 |
| M2XM | Minus | 250 | 23 | |
| M25XP | Plus | 0.2515" to 0.5005" | 250 | 23 |
| M25XM | Minus | 250 | 23 | |
| M3XP | Plus | 0.501" to 0.625" | 125 | 24 |
| M3XM | Minus | 125 | 24 | |
| M35XP | Plus | 0.5015" to 0.6255" | 125 | 24 |
| M35XM | Minus | 125 | 24 | |
| M4XP | Plus | 0.626" to 0.750" | 125 | 33 |
| M4XM | Minus | 125 | 33 | |
| M45XP | Plus | 0.6265" to 0.7505" | 125 | 33 |
| M45XM | Minus | 125 | 33 | |
| M5XP | Plus | 0.751" to 0.832" | 82 | 29 |
| M5XM | Minus | 82 | 29 | |
| M55XP | Plus | 0.7515" to 0.8325" | 82 | 29 |
| M55XM | Minus | 82 | 29 | |
| M6XP | Plus | 0.833" to 0.916" | 84 | 35 |
| M6XM | Minus | 84 | 35 | |
| M65XP | Plus | 0.8335" to 0.9165" | 84 | 35 |
| M65XM | Minus | 84 | 35 | |
| M7XP | Plus | 0.917" to 1.000" | 84 | 41 |
| M7XM | Minus | 84 | 41 | |
| M75XP | Plus | 0.9175" to 1.0005" | 84 | 41 |
| M75XM | Minus | 84 | 41 | |
