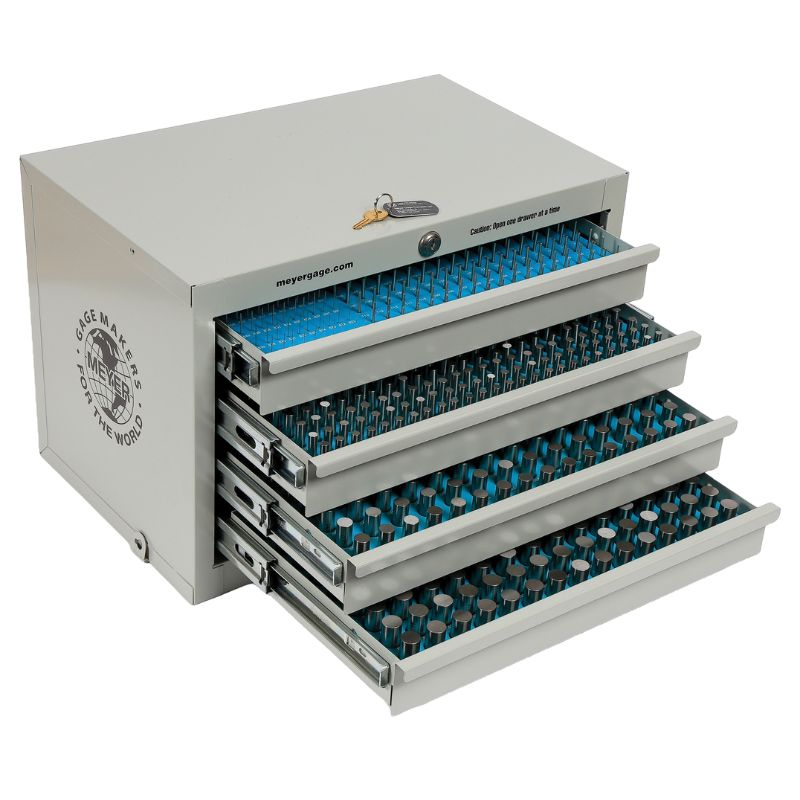

Meyer Gage Class Z Pin Gage Libraries are precision plug gages designed for accurate hole sizing, GO/NO-GO inspection, and general dimensional verification in production and quality control environments. Manufactured to Class Z tolerances, these pin gages offer an excellent balance of accuracy and durability for everyday inspection tasks. Each library is systematically organized and clearly labeled, allowing fast access and efficient measurement workflows while maintaining Meyer Gage’s renowned quality standards.
| Inch | ||||
| Item ID | Tolerance Direction | Size Range | No. of Gages | Weight (lbs.) |
| LSP | Plus | 0.011" to 0.625" | 615 | 100 |
| LSM | Minus | 615 | 100 | |
| LS5P | Plus | 0.0115" to 0.6255" | 615 | 100 |
| LS5M | Minus | 615 | 100 | |
| LCP | Plus | 0.011" to 0.750" | 740 | 120 |
| LCM | Minus | 740 | 120 | |
| LC5P | Plus | 0.0115" to 0.7505" | 740 | 120 |
| LC5M | Minus | 740 | 120 | |
| L1P | Plus | 0.061" to 0.750" | 690 | 120 |
| L1M | Minus | 690 | 120 | |
| L15P | Plus | 0.0615" to 0.7505" | 690 | 120 |
| L15M | Minus | 690 | 120 | |
| L2CP | Plus | 0.011" to 0.5005" | 980 | 96 |
| L2CM | Minus | 980 | 96 | |
| L2P | Plus | 0.061" to 0.5005" | 880 | 95 |
| L2M | Minus | 880 | 95 | |
| L3P | Plus | 0.061" to 1.000" | 940 | 240 |
| L3M | Minus | 940 | 240 | |
| L35P | Plus | 0.0615" to 1.0005" | 940 | 240 |
| L35M | Minus | 940 | 240 | |
| L4P | Plus | 0.011" to 1.000" | 990 | 240 |
| L4M | Minus | 990 | 240 | |
| L45P | Plus | 0.0115" to 1.0005" | 990 | 240 |
| L45M | Minus | 990 | 240 | |
| L5P | Plus | 0.751" to 1.000" | 250 | 140 |
| L5M | Minus | 250 | 140 | |
| L55P | Plus | 0.7515" to 1.0005" | 250 | 140 |
| L55M | Minus | 250 | 140 | |
Note: L3, L35, L4, and L45 consist of (2) 4-drawer metal cabinets.
| Metric | ||||
| Item ID | Tolerance Direction | Size Range | No. of Gages | Weight (lbs.) |
| L10MMP | Plus | 1.52mm to 17.80mm | 815 | 124 |
| L10MMM | Minus | 815 | 124 | |
| L11MMP | Plus | 1.53mm to 17.81mm | 815 | 124 |
| L11MMM | Minus | 815 | 124 | |
| L20MMP | Plus | 17.82mm to 25.40mm | 380 | 183 |
| L20MMM | Minus | 380 | 183 | |
| L21MMP | Plus | 17.83mm to 25.41mm | 380 | 183 |
| L21MMM | Minus | 380 | 183 | |
| L30MMP | Plus | 1.52mm to 25.40mm | 1,195 | 305 |
| L30MMM | Minus | 1,195 | 305 | |
| L31MMP | Plus | 1.53mm to 25.41mm | 1,195 | 305 |
| L31MMM | Minus | 1,195 | 305 | |
Note: L30MM and L31MM consist of (2) 4-drawer metal cabinets.
