Mitutoyo 104-205 Interchangeable Anvil Outside Micrometer 36-42" .001in

Mitutoyo 104 Series Inch Interchangeable Anvil Outside Micrometer

  • Interchangeable anvil micrometers
  • Inch models with .0001″ or .001″ graduations
  • Measuring ranges up to 42 inches
  • Includes matched anvils and setting standards
  • Rigid construction
by Mitutoyo
$2,090.00
Availability: Translation missing: en.general.icons.icon_check_circle icon Only 1 left!

Notify me when back in stock

trustbadge

FREE SHIPPING

trustbadge

ALWAYS TAX FREE

trustbadge

PRICE MATCH GUARANTEE

trustbadge

EASY 30-DAY RETURN

Mitutoyo 104 Series Inch Interchangeable Anvil Outside Micrometer

The Mitutoyo 104 Series Inch Interchangeable Anvil Outside Micrometers are engineered for precise measurement of large outside dimensions across extended measuring ranges. Featuring interchangeable anvils and supplied setting standards, these micrometers reduce the need for multiple fixed-frame tools while maintaining excellent accuracy. Ideal for machine shops, tool rooms, and inspection departments, the 104 Series delivers reliable performance for demanding large-diameter measurement applications.



Key Features

  • Interchangeable anvil system for wide measuring ranges
  • Inch models with .0001″ and .001″ graduations
  • Rigid micrometer frame for stable measurements
  • Precision-ground spindle and anvils
  • Supplied with setting standards for accurate calibration
  • Designed for large part inspection and shop-floor use



Specifications

Range Graduation SKU Mass (kg) Mass (lb) Items Included
0-2” .0001” 104-165* 0.32 0.71 1” anvil & 1 standard
0-6” .001” 104-137 1.35 2.98 6 anvils & 5 standards
6-12” .001” 104-138 2.65 5.84 6 anvils & 6 standards

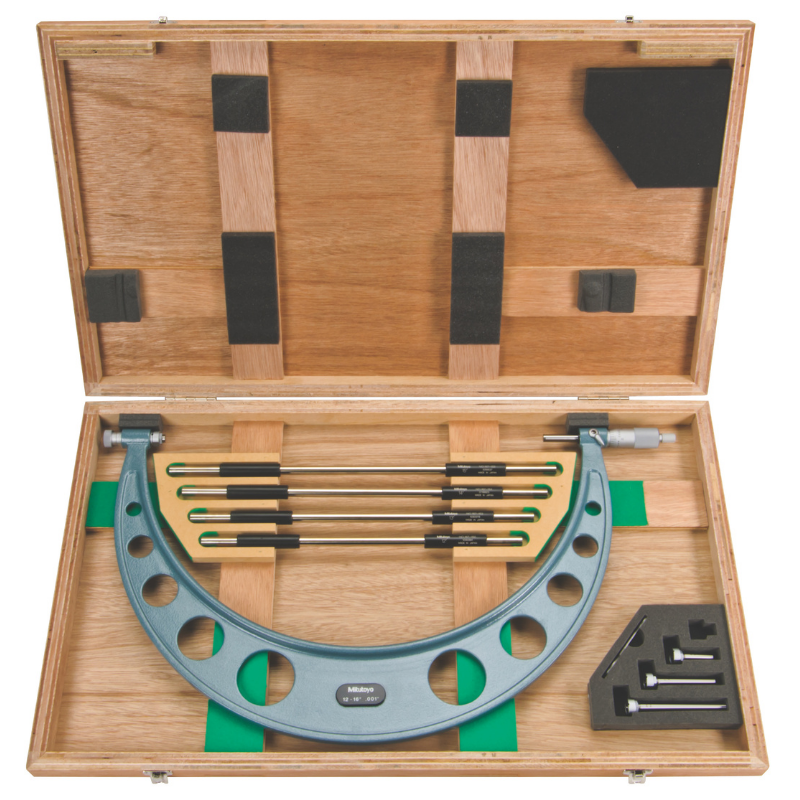

12-16” .001” 104-152 3.31 7.30 4 anvils & 4 standards

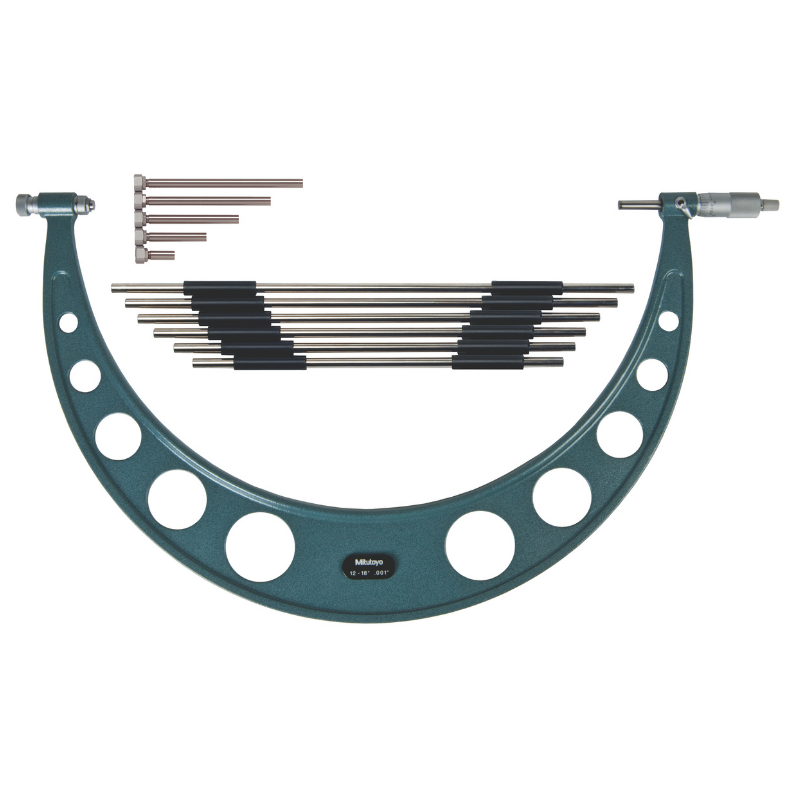

12-18” .001” 104-201 4.69 10.34 6 anvils & 6 standards

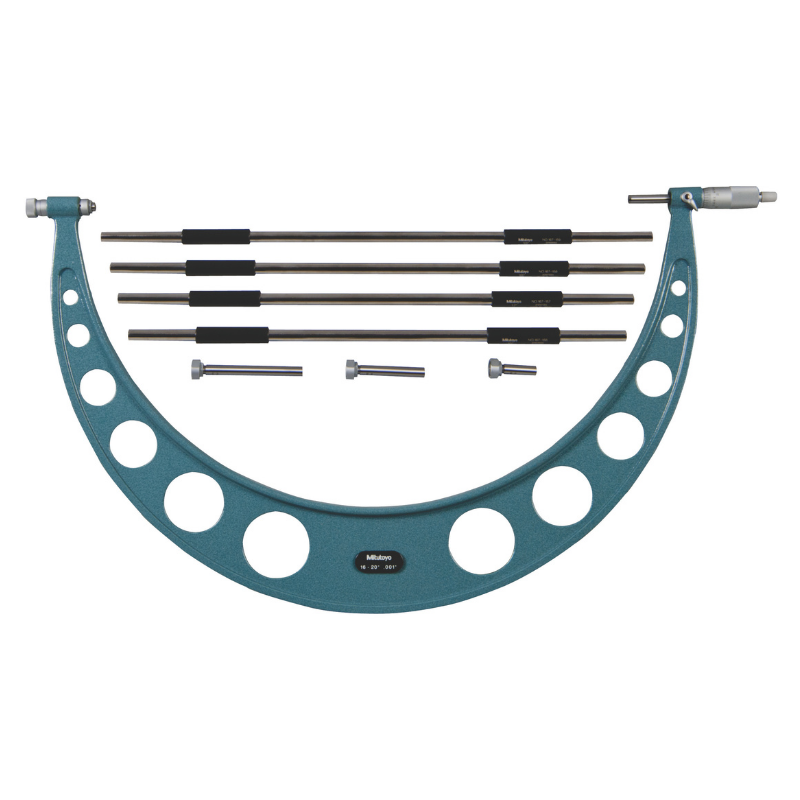

16-20” .001” 104-153 4.81 10.60 4 anvils & 4 standards

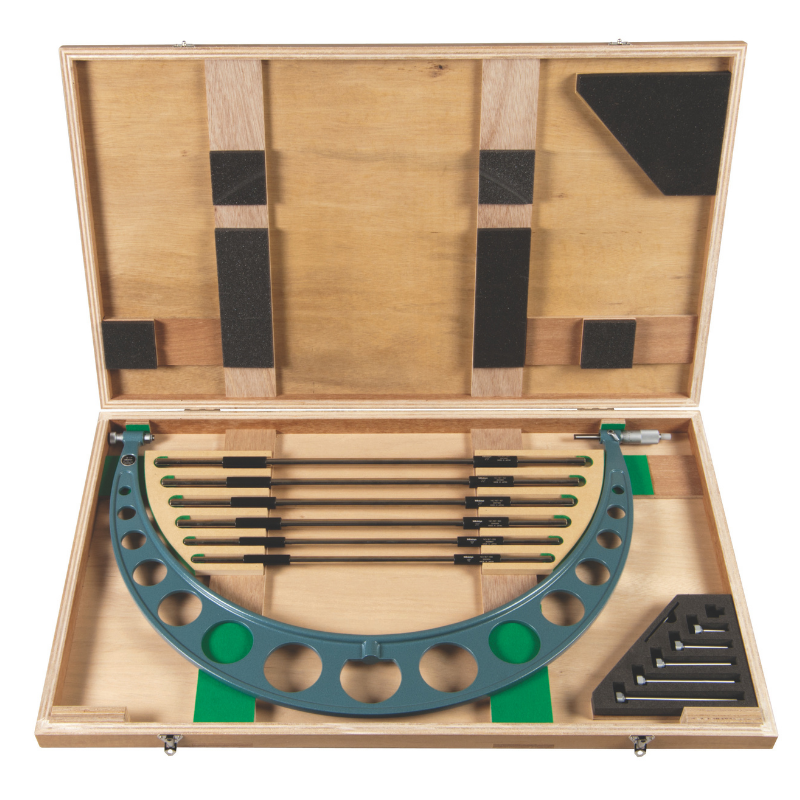

18-24” .001” 104-202 6.51 14.35 6 anvils & 6 standards
20-24” .001” 104-154 6.35 14.00 4 anvils & 4 standards
24-28” .001” 104-155 7.72 17.02 4 anvils & 4 standards

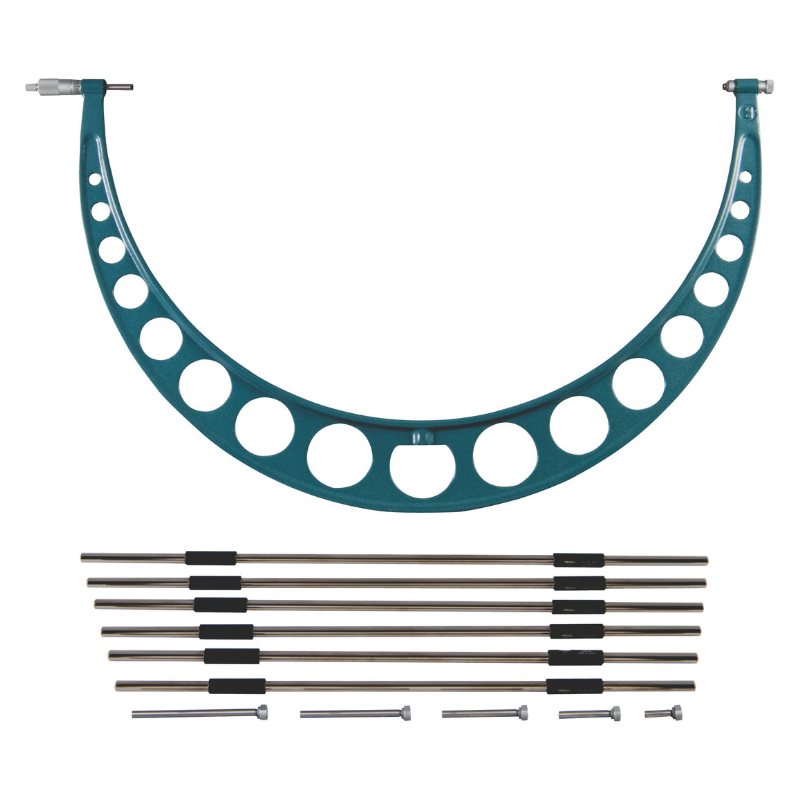

24-30” .001” 104-203 9.95 21.94 6 anvils & 6 standards
28-32 .001” 104-156 9.08 20.02 4 anvils & 4 standards
30-36” .001” 104-204 11.87 26.17 6 anvils & 6 standards
32-36” .001” 104-157 10.41 22.95 4 anvils & 4 standards
36-40” .001” 104-158 11.78 25.97 4 anvils & 4 standards

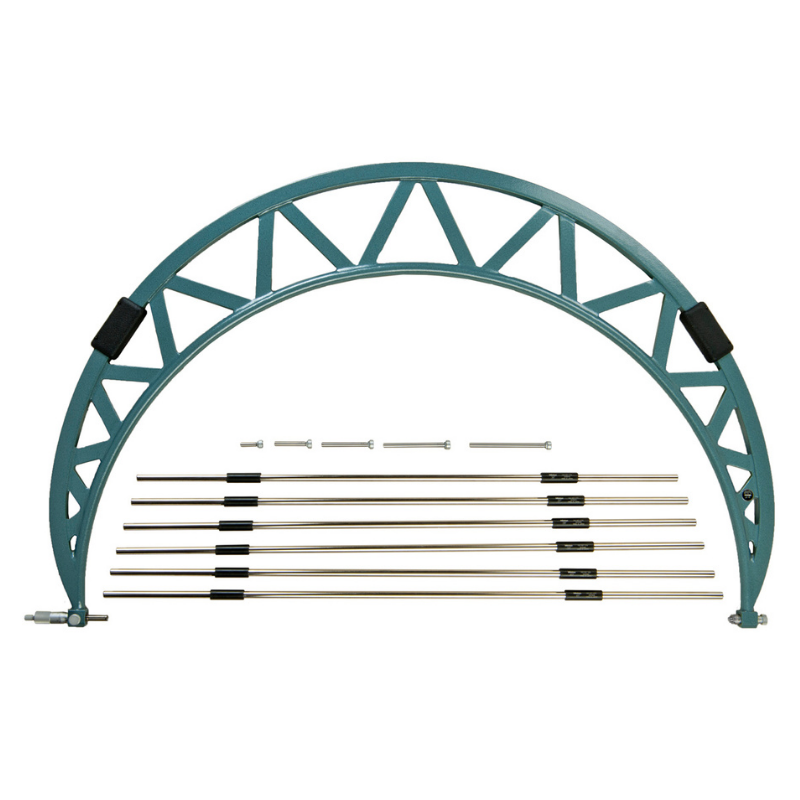

36-42” .001” 104-205 13.68 30.16 6 anvils & 6 standards

*.0001" reading is obtained with vernier.

Items Included

  • Mitutoyo 104 Series interchangeable anvil micrometer frame
  • Interchangeable anvils (quantity varies by model)
  • Setting standards (quantity varies by model)
  • Protective storage case
  • Manufacturer documentation



INSIZE ISHW-L20B Webster Hardness Tester ManualMitutoyo 104 Series Inch Interchangeable Anvil Outside Micrometer Catalog

Mitutoyo 104 Series Inch Interchangeable Anvil Outside Micrometer

$2,090.00

Description

Mitutoyo 104 Series Inch Interchangeable Anvil Outside Micrometer

The Mitutoyo 104 Series Inch Interchangeable Anvil Outside Micrometers are engineered for precise measurement of large outside dimensions across extended measuring ranges. Featuring interchangeable anvils and supplied setting standards, these micrometers reduce the need for multiple fixed-frame tools while maintaining excellent accuracy. Ideal for machine shops, tool rooms, and inspection departments, the 104 Series delivers reliable performance for demanding large-diameter measurement applications.



Key Features

  • Interchangeable anvil system for wide measuring ranges
  • Inch models with .0001″ and .001″ graduations
  • Rigid micrometer frame for stable measurements
  • Precision-ground spindle and anvils
  • Supplied with setting standards for accurate calibration
  • Designed for large part inspection and shop-floor use



Specifications

Range Graduation SKU Mass (kg) Mass (lb) Items Included
0-2” .0001” 104-165* 0.32 0.71 1” anvil & 1 standard
0-6” .001” 104-137 1.35 2.98 6 anvils & 5 standards
6-12” .001” 104-138 2.65 5.84 6 anvils & 6 standards
12-16” .001” 104-152 3.31 7.30 4 anvils & 4 standards
12-18” .001” 104-201 4.69 10.34 6 anvils & 6 standards
16-20” .001” 104-153 4.81 10.60 4 anvils & 4 standards
18-24” .001” 104-202 6.51 14.35 6 anvils & 6 standards
20-24” .001” 104-154 6.35 14.00 4 anvils & 4 standards
24-28” .001” 104-155 7.72 17.02 4 anvils & 4 standards
24-30” .001” 104-203 9.95 21.94 6 anvils & 6 standards
28-32 .001” 104-156 9.08 20.02 4 anvils & 4 standards
30-36” .001” 104-204 11.87 26.17 6 anvils & 6 standards
32-36” .001” 104-157 10.41 22.95 4 anvils & 4 standards
36-40” .001” 104-158 11.78 25.97 4 anvils & 4 standards
36-42” .001” 104-205 13.68 30.16 6 anvils & 6 standards

*.0001" reading is obtained with vernier.

Items Included

  • Mitutoyo 104 Series interchangeable anvil micrometer frame
  • Interchangeable anvils (quantity varies by model)
  • Setting standards (quantity varies by model)
  • Protective storage case
  • Manufacturer documentation



INSIZE ISHW-L20B Webster Hardness Tester ManualMitutoyo 104 Series Inch Interchangeable Anvil Outside Micrometer Catalog
