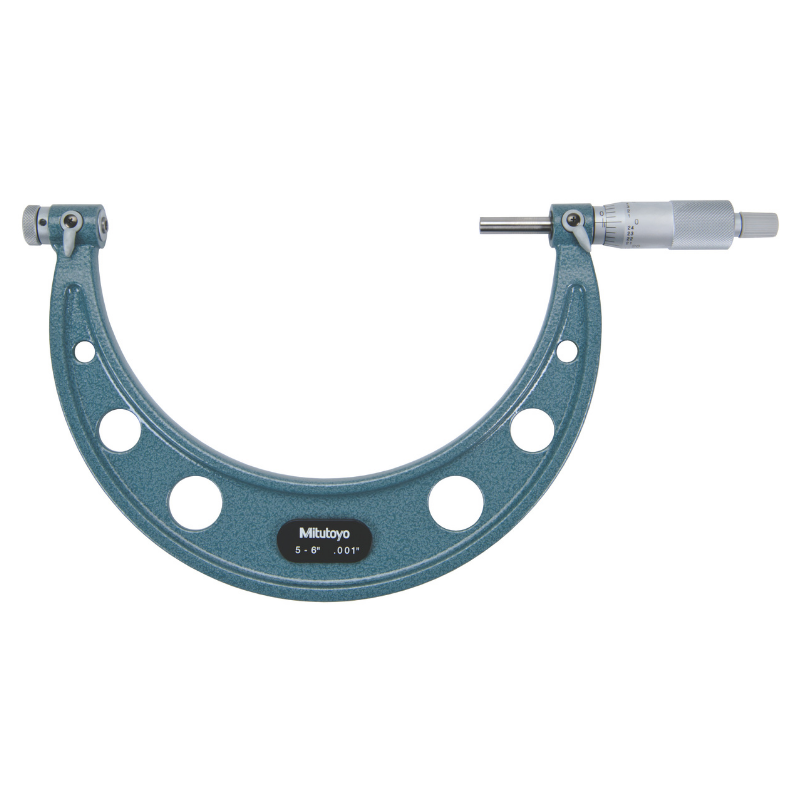

Mitutoyo 126 Series Screw Thread Micrometer

Mitutoyo 126 Series Screw Thread Micrometer

Accurate thread verification depends on a micrometer built specifically for the job, and the Mitutoyo 126 Series Screw Thread Micrometer delivers exactly that. Featuring specially shaped V-anvils and cone-point spindles that seat precisely into thread profiles, it gives machinists and inspectors a direct, accurate way to measure the pitch diameter of screw threads, rather than approximating with a standard flat-anvil micrometer. Backed by Mitutoyo's precision manufacturing standards, it's a dependable tool for shops where thread accuracy is critical to part function and fit.

Key Features

• V-anvil and cone-point design seats directly into thread profiles
• Measures pitch diameter accurately, not just outside diameter
• Precision construction for consistent, repeatable readings
• Durable build for daily shop-floor use
• Trusted Mitutoyo engineering and manufacturing standard

Specifications

Who It's For

Ideal for machinists and quality inspectors who need accurate pitch diameter measurement on screw threads, particularly where thread fit and function are critical to part performance.

Items Included

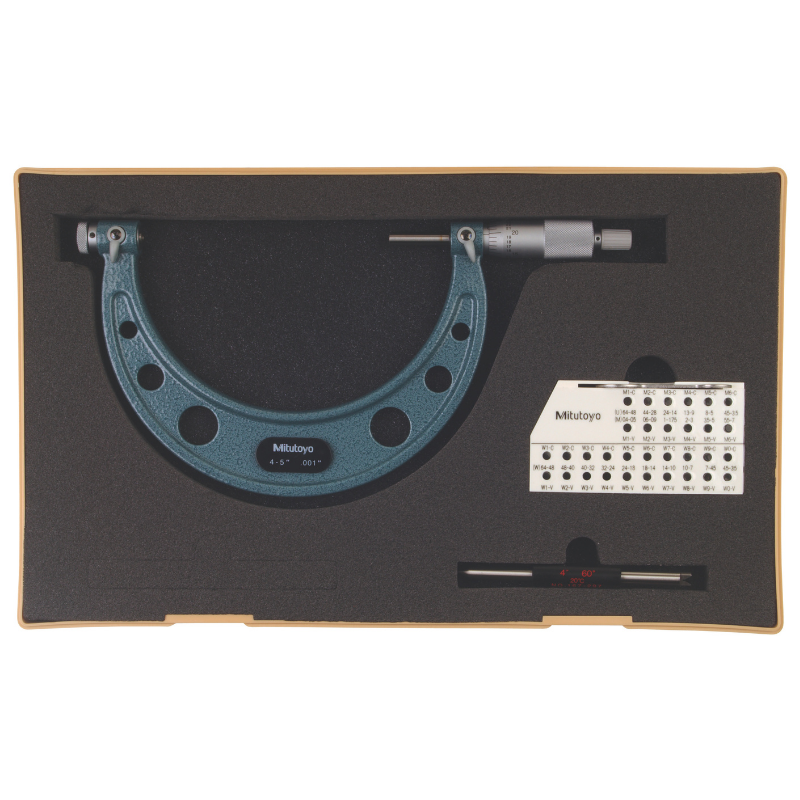

• Mitutoyo 126 Series Screw Thread Micrometer
• Case

Mitutoyo 126 Series Screw Thread Micrometer Data Sheet
